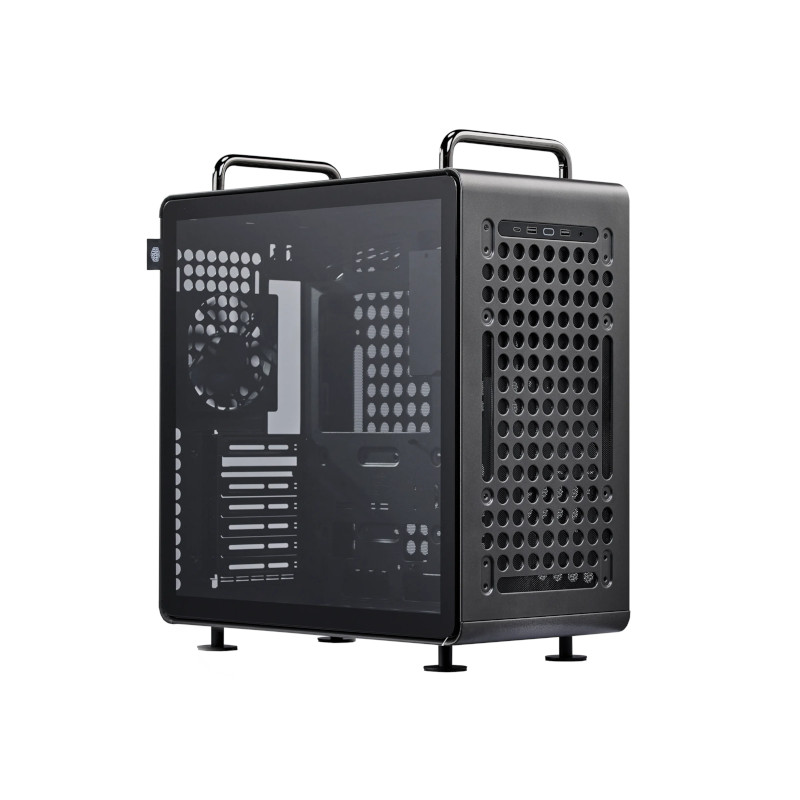

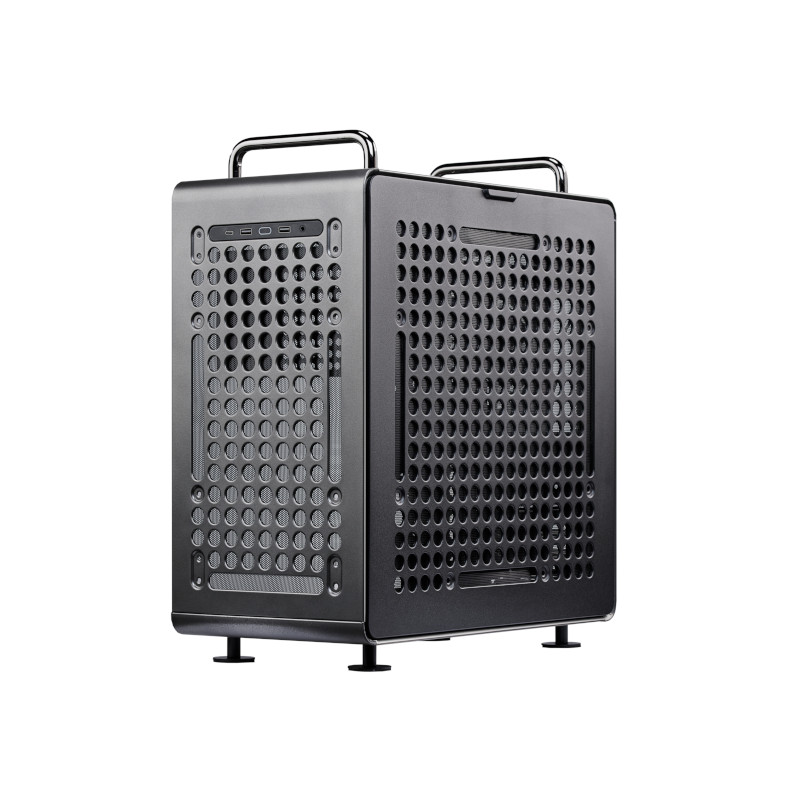

Product Name

QUBE 540

Product Number

Q540-MGNN-S00

Exterior Color

Stardust Iron

Materials

Exterior: Steel

Side Panel (Right): Steel

Side Panel (Left): TG

Dimensions

(L x W x H)

Incl. Protrusions: 438.5 x 225 x 492.1 mm

Excl. Protrusions: 425 x 225 x 425 mm

Volume (w/o protrusions): 40.64 L

Volume (with panel, protrusions and feet): 48.55 L

Motherboard Support

ITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)

Expansion Slots

7

Drive Bays

5.25" ODD: N/A

3.5" HDD: 1 (Shared 3.5" and 2.5" mounting on PSU bracket)

2.5" SSD: 2 (Max. 5)

I/O Panel

2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C

1 x 3.5 Mic / Audio Combo Jack

Fan Support

Front: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm

Top: 3 x 120 mm (w/o I/O panel) / 2 x 140 mm

Rear: 1x 120mm

Bottom: 3 x 120 mm / 2 x 140 mm

Preinstalled Fan(s)

Rear: 1x 120mm Black Fan

Radiator Support

Front: 140 / 280 / 360 mm (w/o I/O panel)

Top: 140 / 280 / 360 mm (w/o I/O panel)

Rear: 120 mm

Bottom: 140 / 280 / 360mm (w/o I/O panel)

Clearances

CPU Cooler: 172 mm

Power Supply: 200 mm

Graphics Card: 415 mm (w/o Front Fan)

Behind Motherboard Tray: 27 mm

Dust Filters

Top / Bottom / Front

Power Supply Support

ATX / SFX

Warranty

2 Years

Note*

Price, feature and specifications are subject to change without notice.
