- Stock: In Stock
- Brand: Cooler Master
- Model: MAM-T6HA-225PK-RB
- UPC: 884102141775
- EAN: 4719512169483

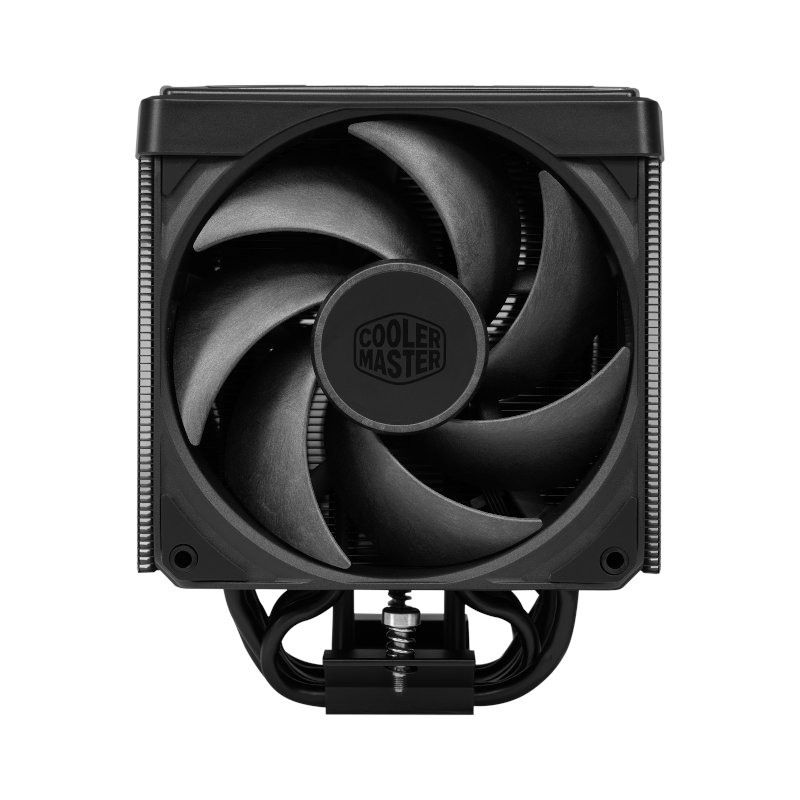

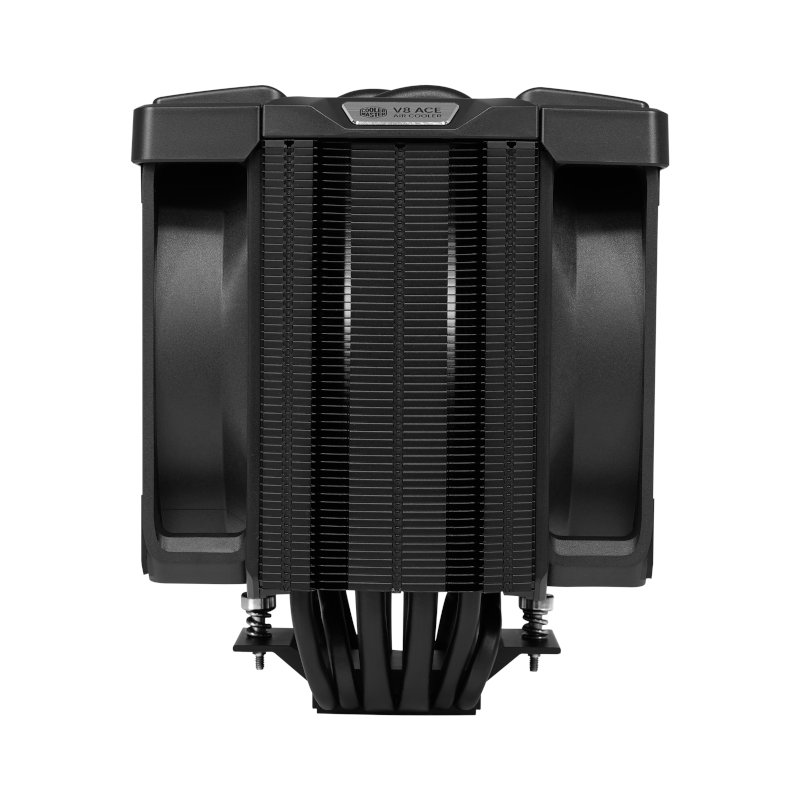

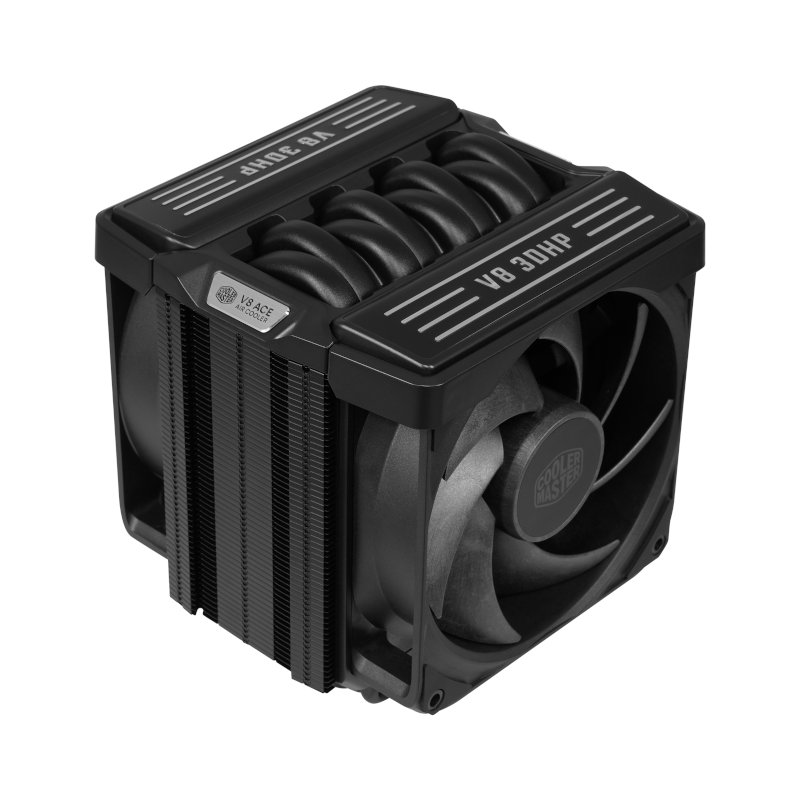

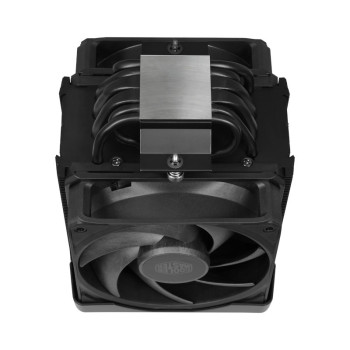

V8 Ace 3DHP Series
MAM-T6HA-225PK-RB
- UNINTERRUPTED PROCESSING POWER - Advanced 3DHP technology
rapidly dissipates heat from high-TDP processors, eliminating thermal
throttling so your system maintains peak performance during heavy 3D rendering,
video exports, or complex AI model training.
- WHISPER-QUIET FOCUS - Constructed with Liquid Crystal
Polymer (LCP) to eliminate blade flex, the fan maximizes airflow while
operating at a near-silent 38 dBA—ensuring your recording sessions, detailed
audio work, or intense design workflows remain completely undisturbed.
- EASY INSTALLATION - The tool-free sliding mechanism allows
side fans to glide out without using metal brackets. This ensures effortless
access and total freedom to install or upgrade premium memory kits.
- DEDICATED AMD METAL BRACKET - An optimized, premium mounting
system engineered specifically for AMD platforms to ensure a rock-solid
foundation and specialized thermal contact for high-performance processors.
- ENGINE-INSPIRED AESTHETICS - striking, non-LED visual design
brings the raw, mechanical look of a high-performance engine straight to your
motherboard, offering a clean and sophisticated appearance.
Specification | |
Model | V8 ACE
3DHP Black AMD |
Model
Number | MAM-T6HA-225PK-RB |
CPU
Socket | AMD®
AM5 / AM4 socket |
Color | Black |
Dimension | 138.95
X136.47 X 167.3mm( 5.47 x 5.37 x 6.58 inch) |
Heat
Sink Material | 2 x
3DHP/ 4 x HP/ Aluminum Fins |
Fan (Front) | Dimensions
(L x H x W): 120 x 120 x 30 mm ( 4.7 x 4.7 x 1.18 inch) Profiles:
N/A Quantity
(pcs): 1 PCS Speed: 0-2500±250RPM Air
Flow (Max): 152.23 m3/h(89.6 CFM) Air
Pressure (Max): 3.85 mmH2O MTTF: >
200,000 hours Noise
Level (Max): 37 dB(A) Bearing:
Loop Dynamic Bearing Connector:
4-Pin PWM Rated
Voltage: 12 VDC Rated
Current: 0.2 A Safety
Current: 0.4 A Power
Consumption: 2.4 W |
Fan
(Rear) | Dimensions
(L x H x W): 120 x 120 x 30 mm ( 4.7 x 4.7 x 1.18 inch) Profiles:
N/A Quantity
(pcs): 1 PCS Speed: 0-2050±250RPM Air
Flow (Max): 103.64 m3/h(61.0 CFM) Air
Pressure (Max): 2.0 mmH2O MTTF: >
200,000 hours Noise
Level (Max): 34 dB(A) Bearing:
Loop Dynamic Bearing Connector:
4-Pin PWM Rated
Voltage: 12 VDC Rated
Current: 0.13 A Safety
Current: 0.2 A Power
Consumption: 1.56 W |
Warranty | 6 Years |
Note* | Price, feature and
specifications are subject to change without notice |
