- Model: CP-9020152-UK

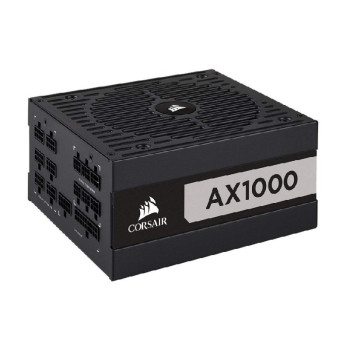

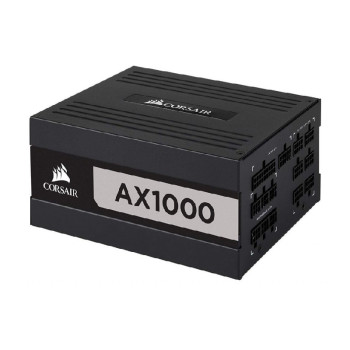

AX Series™ AX1000 — 1000 Watt 80 PLUS® Titanium Certified Fully Modular ATX PSU (UK)
CORSAIR AX Series fully modular power supplies deliver 80
PLUS Titanium efficient power and ultra-low-noise operation to complete your
most ambitious builds
World Class Electrical Performance
Superior voltage regulation and minimal ripple/noise ensures
the highest quality and most consistent power for your PC, keeping your system
stable and unlocking your motherboard’s true potential for overclocking.
80 Plus Titanium Certified
The AX1000 delivers power at up to 94% efficiency, lowering
energy consumption, noise, temperatures, and your power bill.
100% Japanese 105°C Capacitors
By using high-end electrolytic capacitors, AX Series power
supplies offer the unwavering power and long-term reliability you demand from a
CORSAIR power supply.
Zero RPM Fan Mode
The AX Series’ cooling fan doesn’t spin until you need it,
for near-silent operation at low and medium loads.

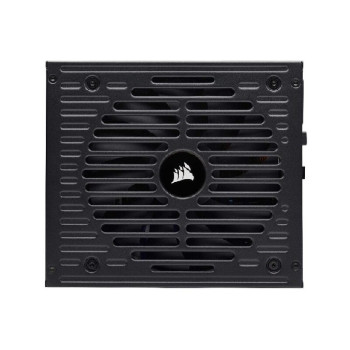

135MM Cooling Fan
Immensely powerful airflow, low noise operation and longer
life thanks to a true Fluid Dynamic Bearing (FDB) fan.

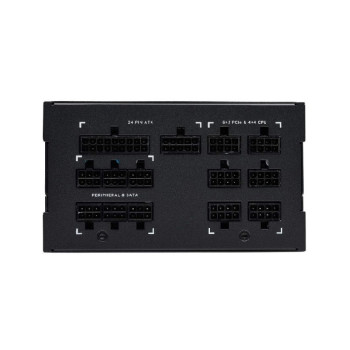

Fully Modular Cables
Use only the cables you need for quick and easy
installation, with stylish sleeving to simplify routing and cable management.
Store your unused cables in the included cable bag.
Customizable Magnetic Side Labels
Customize your PSU to match your system’s style with three
included magnetic side labels in red, white or blue.
Ten-Year Warranty
CORSAIR provides a ten-year warranty on all AX Series power supplies; your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.
Specification |
|
ATX12V Version |
v2.4 |
Continuous output rated temperature C |
50°C |
Continuous power W |
1000 Watts |
Fan bearing technology |
FDB Bearing |
Multi-GPU ready |
Yes |
Fan size (mm) |
135mm |
80 PLUS Efficiency |
Titanium |
PSU Form Factor |
ATX |
Modular |
Fully |
Zero RPM Mode |
Yes |
MTBF |
100,000 hours |
ATX Connector |
1 |
Floppy Connector |
1 |
Intel C6C7 sleep state compatible |
Yes |
EPS12V Connector |
2 |
EPS12V Version |
v2.92 |
SATA Connector |
16 |
PATA Connector |
8 |
Modern Standby Compatible |
No |
Dimension |
170mm x 86mm x 150mm |
Cable Type |
Sleeved, All Black |
PCIe Connector |
8 |
Warranty |
10 Years |
Note* |
Price, feature and specifications
are subject to change without notice. |
