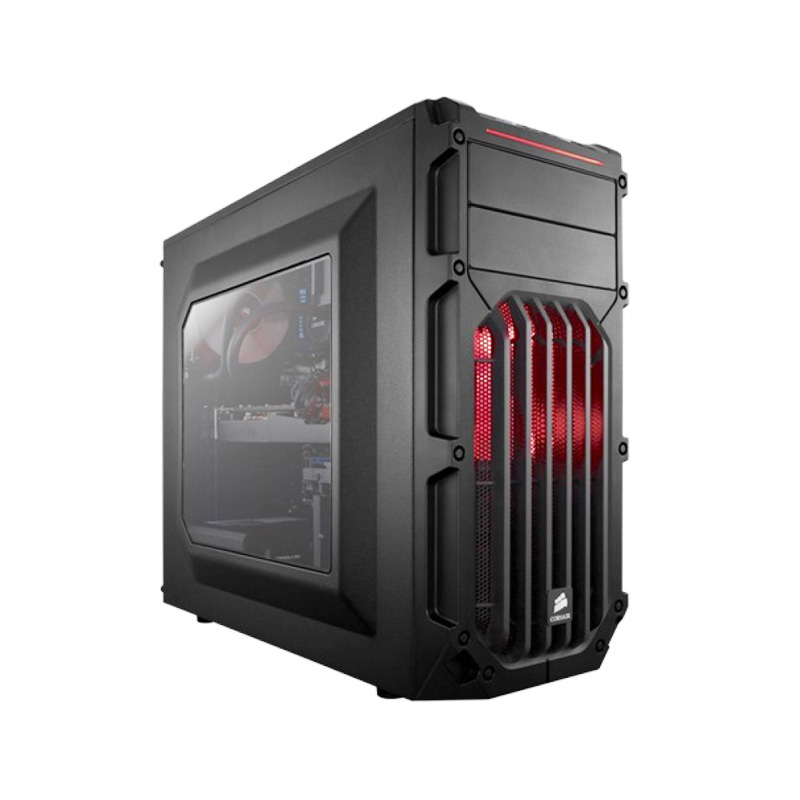

Corsair Carbide Series Spec-01 LED Mid-Tower Gaming Case (Red)

Carbide Series® SPEC-01 Red LED Mid-Tower Gaming Case


The essential gaming PC case.

Carbide Series SPEC-01 is proof that great looks, smart design, and durable construction don’t need to be pricy, and that basic doesn’t need to be boring. You get aggressive styling, a huge side panel window for admiring your components, and an LED-lit front intake fan that draws cool air directly to your graphics-cards.

Inside, there’s room for up to five fans, and the four combination hard drive / S.S.D trays make storage installation and upgrades quick and easy. Cable routing cutouts help you reduce clutter, and the built-in dust filters help protect your components. Up front, the USB 3.0 connector gets you up to speed with the latest high-performance storage devices.

Huge side panel window

The aggressive look of the SPEC-01 makes it look great on the outside, but there’s beauty on the inside of a well-built system, too. The large side panel window lets you show it off.

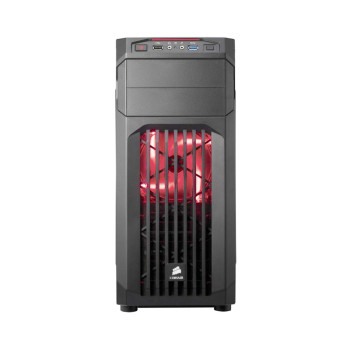

LED front intake fan, with room for more

The 120mm front intake fan is bathed in soft LED lighting, and it’s oriented to draw cool air directly across your graphics-cards. And if you want even more ventilation, you can add a second 120mm fan or even dual 140mm fans.

Flexible cooling potential

Like all Corsair cases, the SPEC-01 is designed for cooling, so you’re covered if you’re overclocking, running multiple G.P.Us, or if you just want more airflow. There are mounting points for up to five fans, including dual front 140mm or 120mm fans, dual 120mm fans on top, and a rear 120mm fan.

Multiple drive bays

You might not build a system with four hard drives or S.S.Ds, but with SPEC-01, you can if you want. In addition to the two standard 5.25” optical-drive bays, there are four built-in 3.5” / 2.5” drive bays for mechanical hard-drives or solid-state drives.

 Easy system builds, maintenance and upgrades

Builds should be easy, no matter what your budget. 3.5” drive installation is tool-free, and you get cable routing holes for neater-looking builds and better airflow. And, there’s a C.P.U cutout to allow for cooling upgrades without removing the mother-board. The front intake fan filters help keep dust out of the interior, and the front panel has a USB 3.0 port for fast performance from USB flash drives and portable hard drives.

Contents and Specifications

Package contents

Carbide Series SPEC-01 Mid-Tower Gaming Case

Accessories box with screws, zip ties, and other mounting hardware

Warranty and Support Information


Mini ITX, Micro ATX, ATX mother-boards

Technical specifications

Tons of fan mounts:

Front – 2 x 140/120mm (1 x 120mm LED included)

Top – 2 x 120mm

Rear – 120mm

USB 3.0 front port with internal connector

Large side panel window

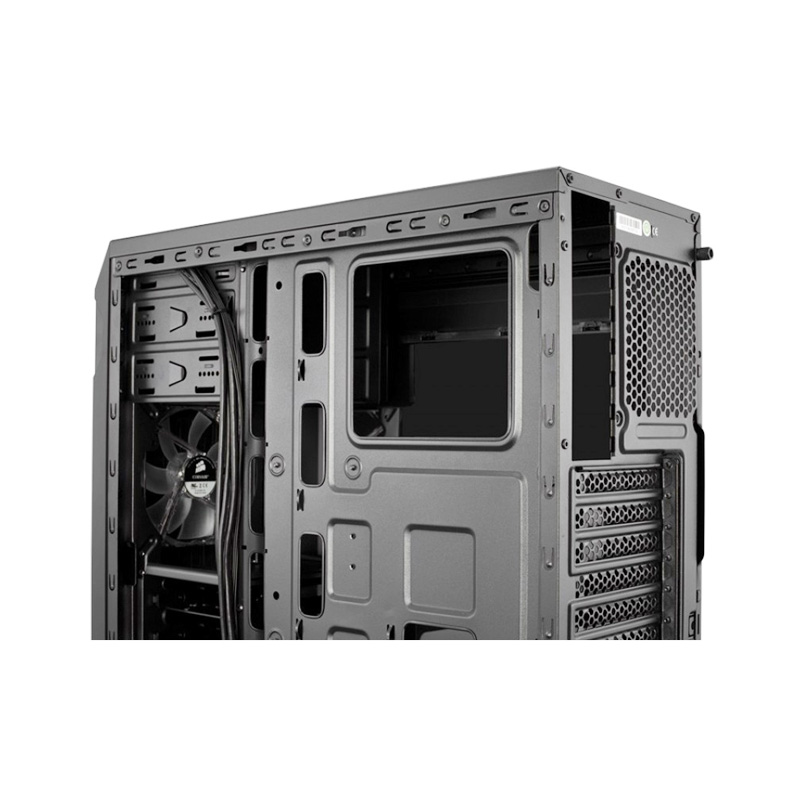

Cable routing and C.P.U cooler backplate mother-board cutouts

Seven PCIe slots with room for long graphics-cards up to 420mm long

Install up to four storage drives, your choice of 3.5” or 2.5”, each tray fits both

Dust filters for front and P.S.U intake


Maximum CPU Cooler Height


Case Material





447mm x 200mm x 428mm

Case Motherboard Support

Mini-ITX, MicroATX, ATX

Case Expansion Slots


Maximum PSU Length


Case Drive Bays

(x2) 5.25in (x4) Combo 3.5in/2.5in

Power Supply

ATX (not included)

External Connections

(x1) USB 2.0 (x1) USB 3.0 (x1) Headphone Port (x1) Microphone Port

Fan Mount Locations

Front: (x2) 120/140mm Top: (x2) 120mm Rear: (x1) 120mm

Fans Included

Front: (x1) 120mm

Radiator Mount Locations

Rear: 120mm



Compatible Corsair Liquid Coolers

H55, H60, H75, H80i


2 years


Price, feature and specifications are subject to change without notice.
