Application For

Intel: LGA1851/1700/1200/1151/1150/1155

AMD: AM5/AM4

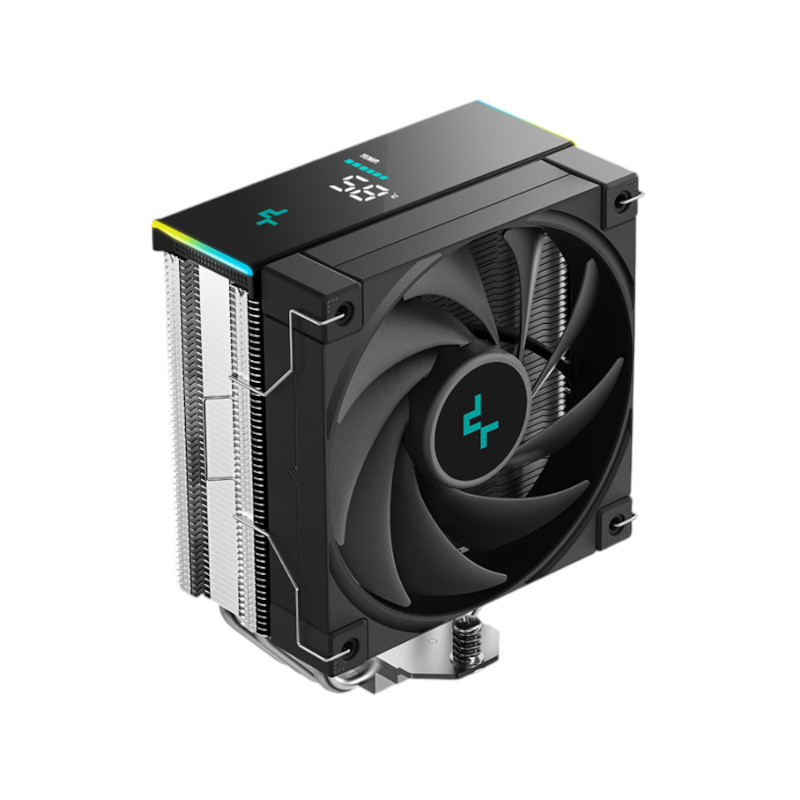

Model

R-AK400-BKADMN-GJD

Product Dimensions

126×97×157 mm(L×W×H)

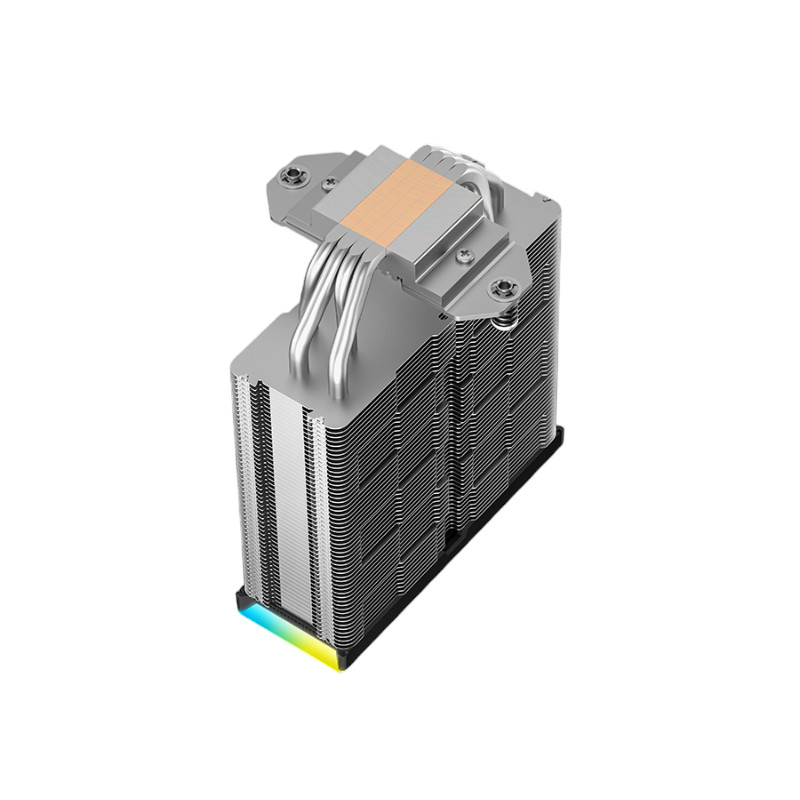

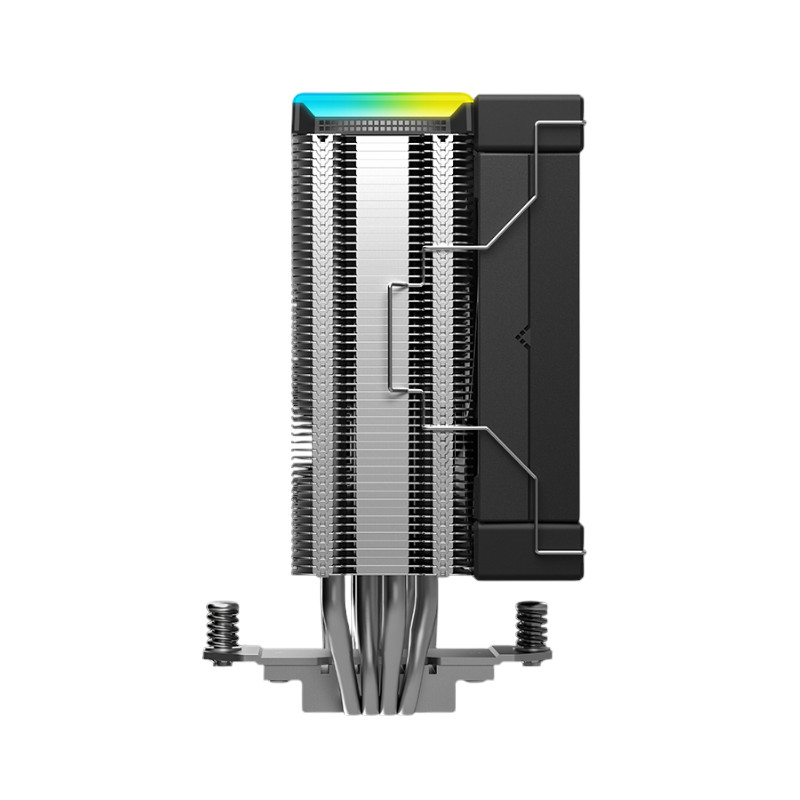

Heatsink Dimensions

120×60×152 mm(L×W×H)

Net Weight

812 g

Heatpipe

Ø6 mm×4 pcs

Fan Dimensions

120×120×25 mm(L×W×H)

Fan Speed

500~1850 RPM±10%

Fan Airflow

68.99 CFM

Fan Air Pressure

2.19 mmAq

Fan Noise

≤28 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.12 A

Fan Power Consumption

1.44 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G) and 9-pin USB 2.0

LED Rated Voltage

5 VDC

LED Power Consumption

1.75 W

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
