- Model: R-AN400-SRWNMN-G
AN400
R-AN400-SRWNMN-G

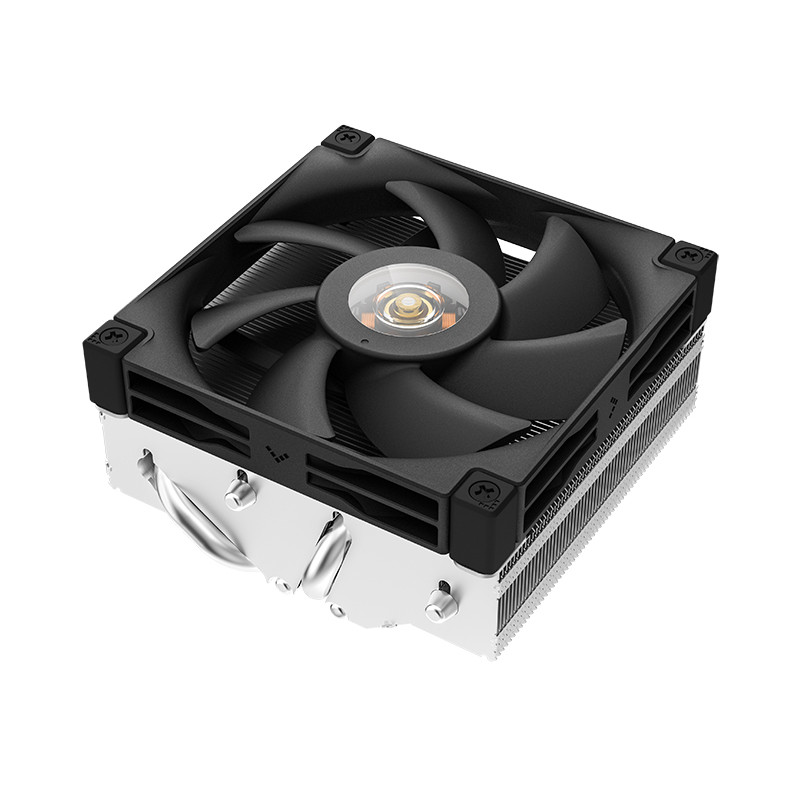

The AN400 is a 4-heatpipe low-profile air cooler that
provides 150W of TDP in a compact heatsink. With unobstructed clearance for RAM
modules, and a top-down air flow, the AN400 is a great option for everything
down to small ITX builds.
Specification | |
Model | R-AN400-SRWNMN-G |
Application
For | Intel:
LGA1700/1200/1151/1150/1155 AMD:
AM5/AM4 |
Product
Dimensions | 92×92×52.5
mm(L×W×H) |
Heatsink
Dimensions | 94×57×38
mm(L×W×H) |
Net
Weight | 431.4 g |
Heatpipe | Ø6 mm×4
pcs |
Fan
Dimensions | 92×92×15
mm(L×W×H) |
Fan
Speed | 500~2950
RPM±10% |
Fan
Airflow | 31.18
CFM |
Fan Air
Pressure | 4.8
mmAq |
Fan
Noise | ≤23.2
dB(A) |
Fan
Connector | 4-pin
PWM |
Bearing
Type | Fluid
Dynamic Bearing |
Fan
Rated Voltage | 12 VDC |
Fan
Rated Current | 0.45 A |
Fan
Power Consumption | 5.4 W |
LED
Type | White
LED |
Warranty | 3 Years |
Note* | Price, features and specifications
are subject to change without notice. |
