CG580 4F V2 WH
R-CG580-WHADA4-G-2

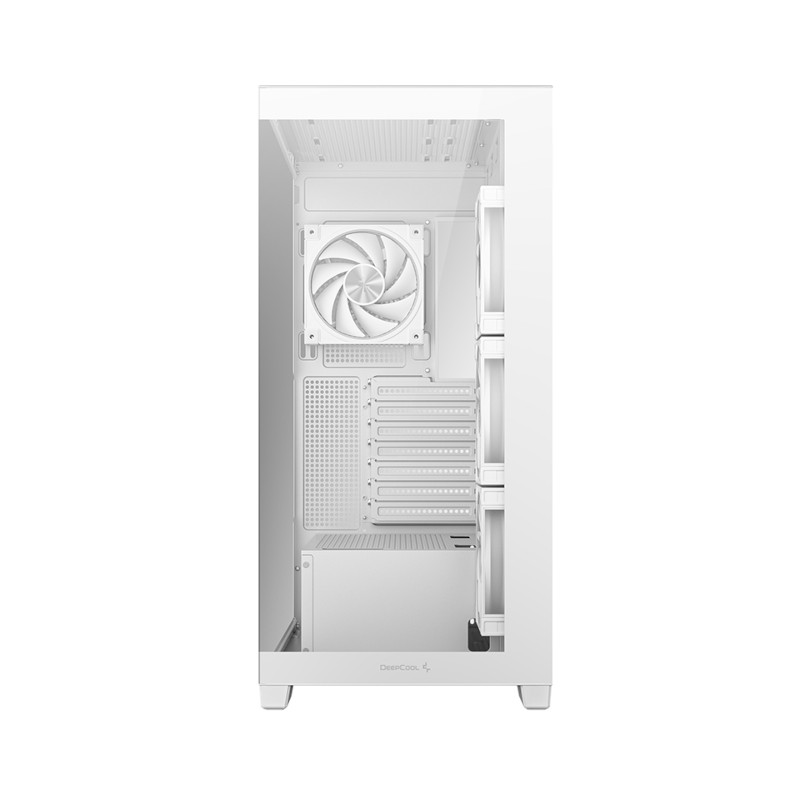

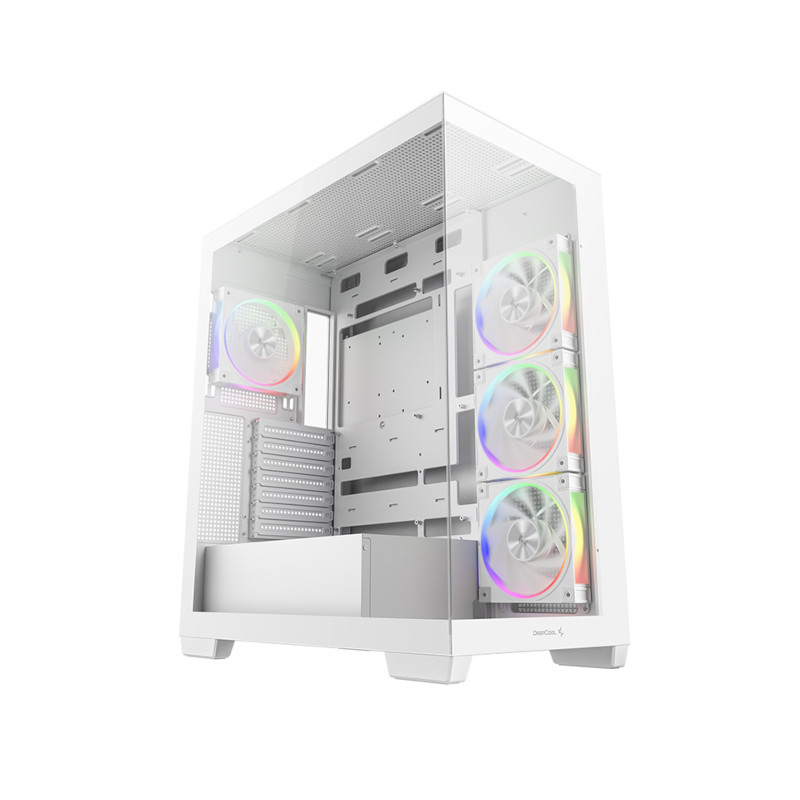

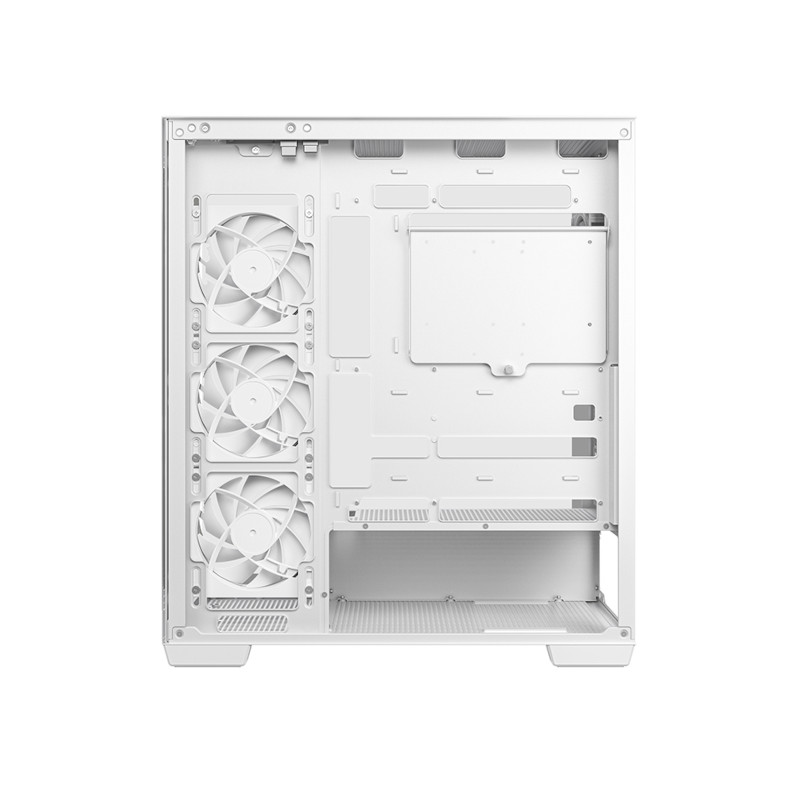

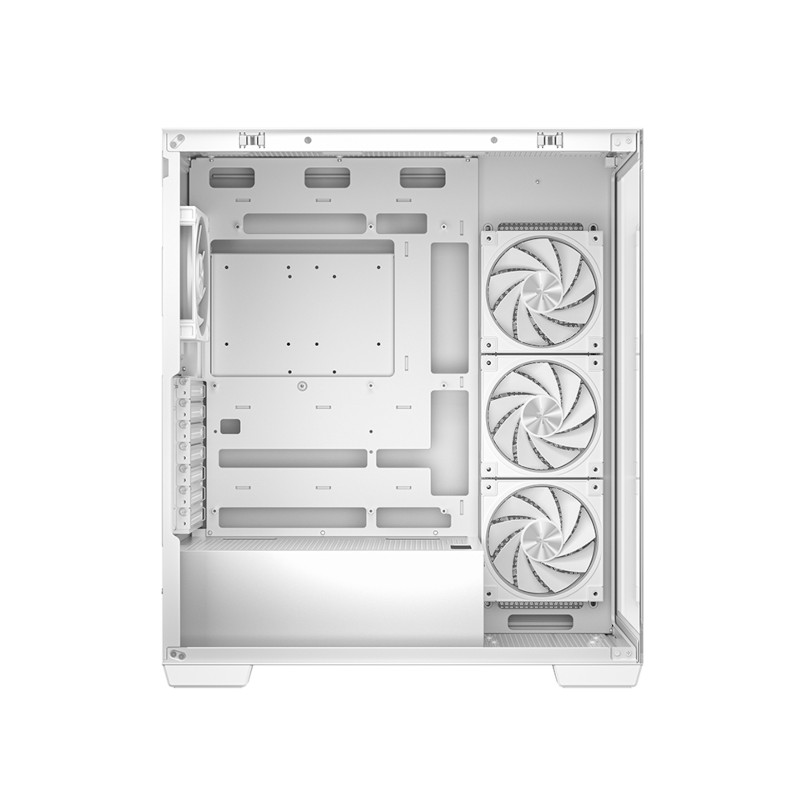

The CG580 4F V2 WH is a picturesque single-chamber case
crafted to elegantly display the most commonly used components. Equipped with 4
ARGB fans, support for 360mm radiators, and multiple fan configurations, it
combines style with exceptional functionality. The design features a no
A-pillar construction, along with glass side and front panels offering a
270°view, allowing builders to fully appreciate their hardware.
Specification | |
Product
Dimensions | 437×235×501mm(L×W×H) |
Net
Weight | 8.8kg |
Materials | ABS+SGCC+Tempered
Glass |
Motherboard
Support | ITX/Micro-ATX/ATX ATX(Rear
Connector)/Micro-ATX(Rear Connector) |
Front
I/O Ports | USB3.0×2/Gen2
Type-C×1/Audio&Mic×1 |
3.5"
Drive Bays | 2 |
2.5"
Drive Bays | 2 |
Expansion
Slots | 7 Slots |
Pre-Installed
Fans | Side:3×120mm(PWM+ARGB
Reverse Blade) Rear:
1×120mm(PWM+ARGB) |
Fan
Support | Front:
NA Top:
3×120mm/2x140mm Side:
3x120mm Rear:
1×120mm/1x140mm Bottom:
1×120mm(3.5 HDD/120FAN :Choose one of two) PSU
Shrouded: 2×120mm |
Radiator
Support | Front:
NA Top:
120/140/240/280/360mm Side:
120/240/360mm Rear:
120/140mm |
CPU
Cooler Height Limit | 176mm |
GPU
Length Limit | 410mm
(limited to 262mm if a 360mm radiator and fan set are mounted on the side) |
Power
Supply Type | ATX PS2(maximum length: 210mm) |
Warranty | 1 Year |
Note* | Price, feature and
specifications are subject to change without notice. |
