- Model: DP-GS-H12-CSL240EX

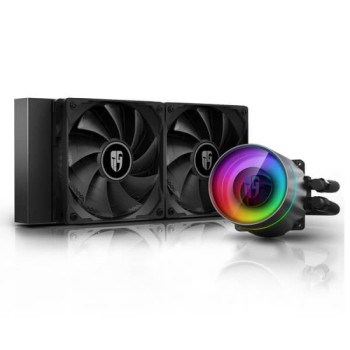

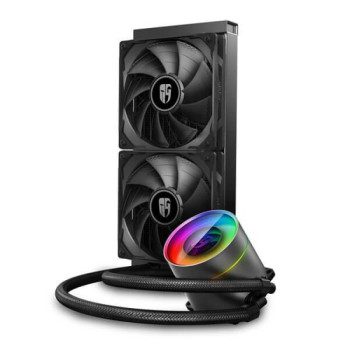

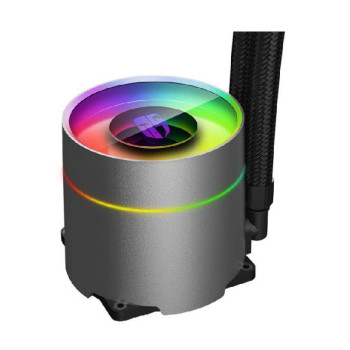

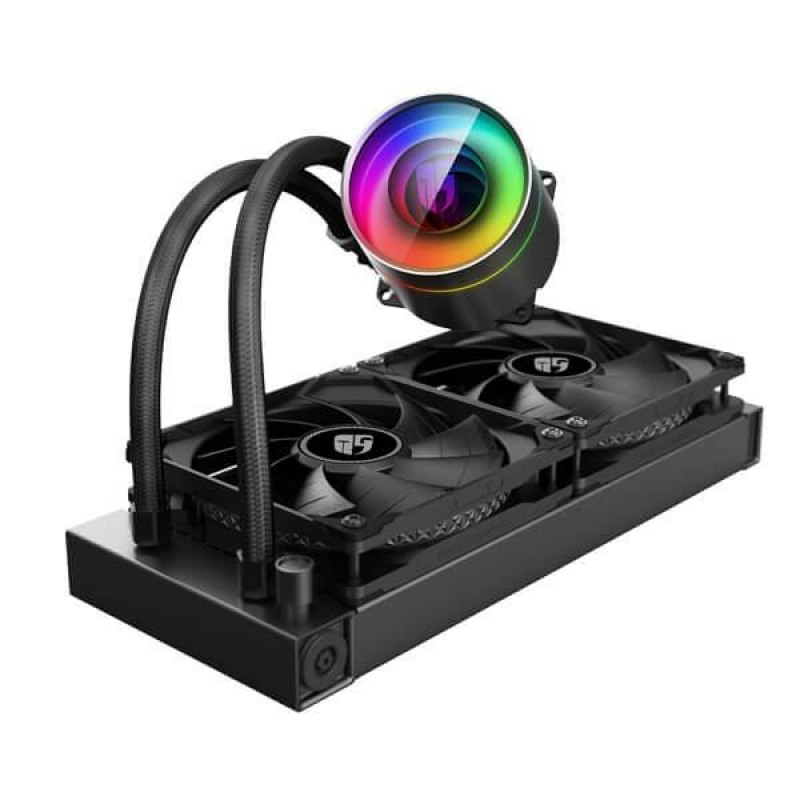

CPU LIQUID COOLER - CASTLE 240EX
- Anti-leak Tech Inside, exclusively safe.
- 25% more skived fins on the back side of the copper base,
the heat absorption area extensively increased.
- Flow route optimized to reduce operation noise and energy
loss.
- 3 specially tuned TF120 S fans are included (in matching the
radiator's properties).
- Customizable Logo, exciting DIY experience.
- Ultra large copper base, extensive compatibility (including
TR4).
Specification | |
Application | Intel = LGA20XX/1151/1150/1155/LGA1366 AMD =
TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
Fan Power Consumption | 1.8 W |
Material | Aluminum |
Pump Rated Current | 0.2 A |
LED Type | Addressable RGB LED |
Tube Length | 380 mm |
LED Connector | 3-pin(+5V-D-G) |
Pump Connector | 3-pin |
Pump Speed | 2550 RPM±10% |
Fan Speed | 500~1800 RPM±10% |
LED Rated Voltage | 5 VDC |
Fan Airflow | 64.4 CFM, Fan Connector = 4-pin PWM |
LED Power Consumption | 2.25 W（PUMP） |
Fan Air Pressure | 2.33 mmAq |
Fan Noise Level (dB-A) | ≤32.1 dB(A) |
Bearing Type | Hydro Bearing |
Dimension | Radiator Dimensions = 282×120×27 mm Fan Dimensions =
120×120×25 mm Pump Dimensions = 86×75×71 mm |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.15 A |
Power Consumption | Pump Power Consumption = 2.4 W |
Pump Noise | 17.8 dB(A) |
Pump Rated Voltage | 12 VDC |
Warranty | 3 years |
Note* | Price, feature and specifications
are subject to change without notice. |
