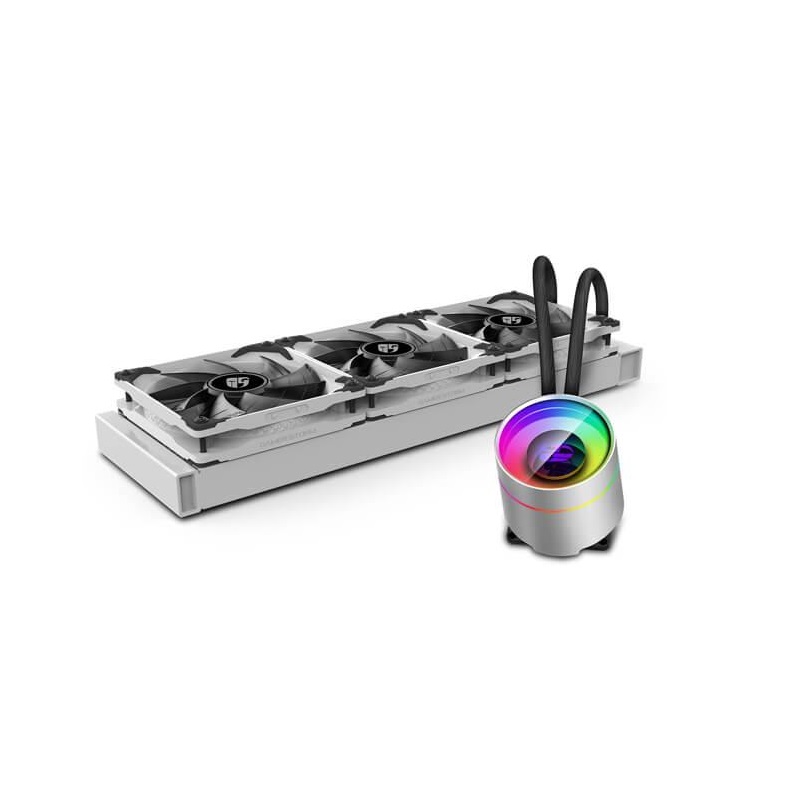

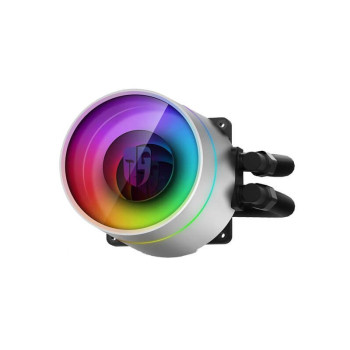

- Model: DP-GS-H12W-CSL360EXWH
CASTLE 360EX WHITE
DP-GS-H12W-CSL360EXWH
Features
- Anti-leak Tech Inside, exclusively safe.
- 25% more skived fins on the back side of the copper base, the heat absorption area extensively increased.
- Flow route optimized to reduce operation noise and energy loss.
- 3 specially tuned TF120 S fans are included (in matching the radiator's properties).
- Customizable Logo, exciting DIY experience.
- Ultra large copper base, extensive compatibility (including TR4).
- 5V Addressable RGB, adjustable through motherboard or the included controller.
Application For
- Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
- AMD sTRX4/sTR4/AM4
|
Specification |
|
|
Model |
CASTLE 360EX WHITE |
|
P/N |
DP-GS-H12W-CSL360EXWH |
|
Radiator Dimensions |
402×120×27 mm |
|
Radiator Material |
Aluminum |
|
Net Weight |
1705 g |
|
Tube length |
465 mm |
|
Pump Dimensions |
86×75×71 mm |
|
Pump Speed |
2550 RPM±10% |
|
Pump Noise |
17.8 dB(A) |
|
Pump Connector |
3-pin |
|
Pump Rated Voltage |
12 VDC |
|
Pump Rated Current |
0.2 A |
|
Pump Power Consumption |
2.4 W |
|
Fan Dimensions |
120×120×25 mm |
|
Fan Speed |
500~1800 RPM±10% |
|
Fan Airflow |
64.4 CFM |
|
Fan Air Pressure |
2.33 mmAq |
|
Fan Noise |
≤32.1 dB(A) |
|
Fan Connector |
4-pin PWM |
|
Bearing Type |
Hydro Bearing |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
0.15 A |
|
Fan Power Consumption |
1.8 W |
|
LED Type |
Addressable RGB LED |
|
LED Connector |
3-pin(+5V-D-G) |
|
LED Rated Voltage |
5 VDC |
|
LED Power Consumption |
2.25 W（PUMP） |
|
Warranty |
3 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
