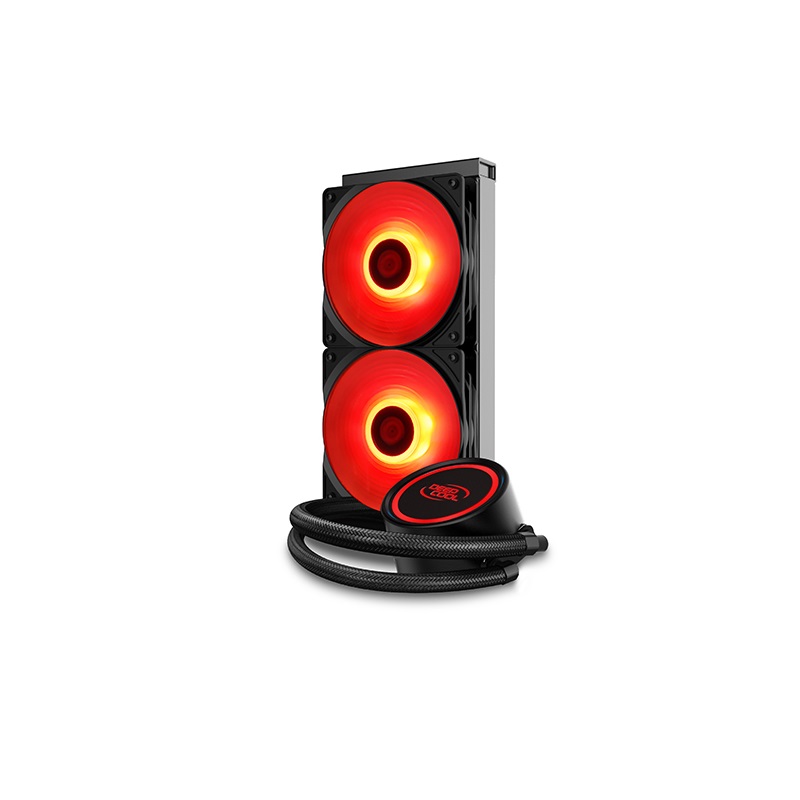

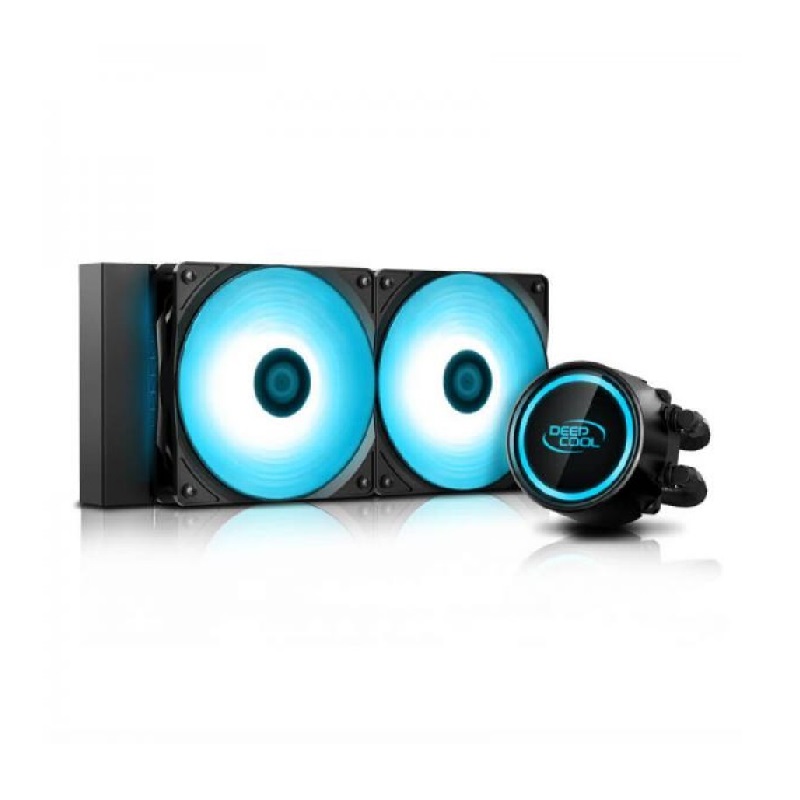

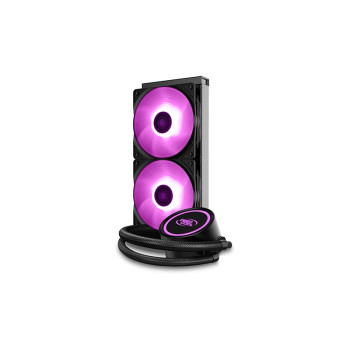

- Model: DP-H12RF-GL240V2
CPU Liquid Coolers - GAMMAXX L240 V2
- Anti-leak Tech Inside system equipped.
- Brand new water-block and fans built-in 12V RGB lighting
system supports mainstream motherboards with synchronized lighting control
- E-shaped micro water-channel design can effectively enhance
the heat circulation efficiency and enlarge the thermal contact area.
- 2*120mm fans coming with 6 ultra-bright RGB LED lights
and meteor and PWM control with super silent performance
- Ultra-large, pure copper CPU block provides effective
coverage and heat dissipation for CPUs of any size
- The ceramic axle bearings and axle cores guarantee an
ultra-long service life.
- Support Mainstream Intel & AMD Socket
Specification |
|
Application |
Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 AMD AM4 |
Fan Power Consumption |
2.04 W |
Material |
Radiator Material = Aluminum |
Pump Rated Current |
0.2 A |
LED Type |
RGB LED |
Tube Length |
380 mm |
LED Connector |
4-pin(+12V-G-R-B) |
Pump Connector |
3-pin |
Pump Speed |
2400 RPM±10% |
Fan Dimension |
120×120×25 mm |
Fan Speed |
500-1800 RPM±10% |
LED Rated Voltage |
12 VDC |
Fan Airflow |
69.34 CFM |
LED Power Consumption |
0.84 W(PUMP)/ 2.88 W(FAN×2) |
Fan Air Pressure |
2.42 mmAq |
Fan Noise Level (dB-A) |
≤30 dB(A), Fan Connector = 4-pin |
Bearing Type |
Hydro Bearing |
Dimension |
Radiator Dimensions=282×120×27 mm, Pump Dimensions =
91×79×47 mm |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.17 A |
Power Consumption |
Pump Power Consumption = 2.4 W |
Pump Noise |
17.8 dB(A) |
Pump Rated Voltage |
12 VDC |
Warranty |
3 years |
Note* |
Price, feature and specifications
are subject to change without notice. |
