- Model: DP-H12CF-GL360-ARGB-WH

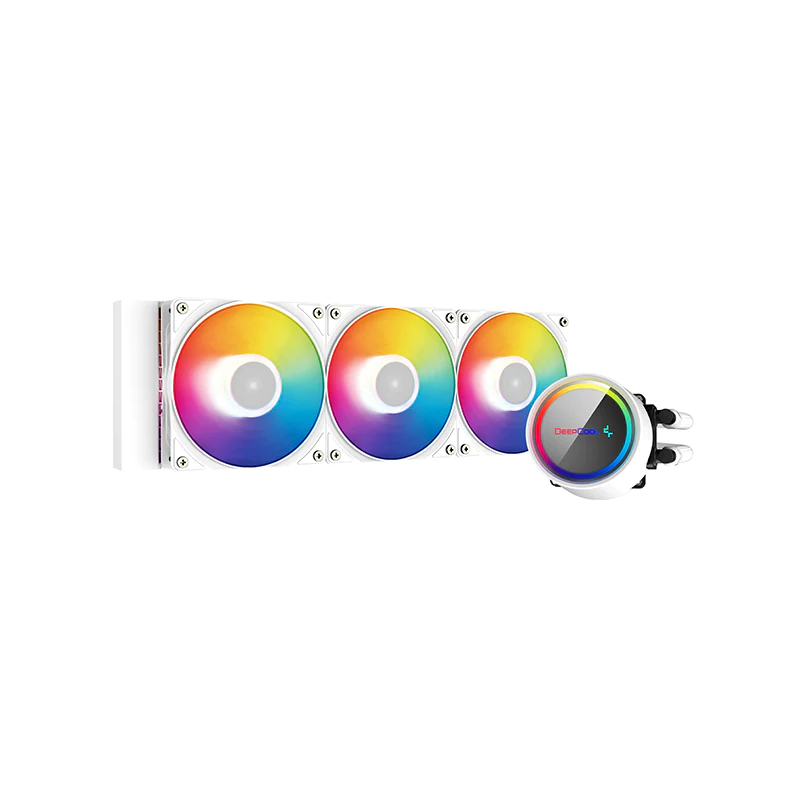

GAMMAXX L360 A-RGB WH
DP-H12CF-GL360-ARGB-WH
In keeping safety first, GAMMAXX L360 A-RGB WH is equipped
with DeepCool’s new standard for liquid cooling systems—Anti-Leak
Technology.This new design helps regulate system pressure balance to
significantly improve operational safety and minimize leakage risk.
|
Specification |
|
|
Model |
GAMMAXX L360 A-RGB WH |
|
P/N |
DP-H12CF-GL360-ARGB-WH |
|
Color |
White |
|
Application For |
Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 AMD: AM5/AM4 |
|
Net Weight |
1696 g |
|
Radiator Dimensions |
402×120×27 mm |
|
Radiator Material |
Aluminum |
|
Tube length |
465 mm |
|
Pump Dimensions |
91×79×47 mm |
|
Pump Speed |
2550 RPM±10% |
|
Pump Noise |
17.8 dB(A) |
|
Pump Connector |
3-pin |
|
Pump Rated Voltage |
12 VDC |
|
Pump Rated Current |
12.21 AM |
|
Pump Power Consumption |
2.52 W |
|
Fan Dimensions |
120×120×25 mm |
|
Fan Speed |
500-1800 RPM±10% |
|
Fan Airflow |
69.34 CFM |
|
Fan Air Pressure |
2.42 mmAq |
|
Fan Noise |
≤30 dB(A) |
|
Fan Connector |
4-pin PWM |
|
Bearing Type |
Hydro Bearing |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
12.17 AM |
|
Fan Power Consumption |
2.04 W |
|
LED Type |
Addressable RGB LED |
|
LED Connector |
3-pin(+5V-D-G) |
|
LED Rated Voltage |
5 VDC |
|
LED Power Consumption |
2.25 W（PUMP）/
6.6 W（FAN×3） |
|
Warranty |
3 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
