Application For

Intel: LGA1700/1200/1151/1150/1155

AMD: AM5/AM4

Model

R-LQ360-BKLSMW-G-1

Net Weight

1840 g

Radiator Dimensions

402×120×27 mm(L×W×H)

Radiator Material

Aluminum

Tube length

410 mm

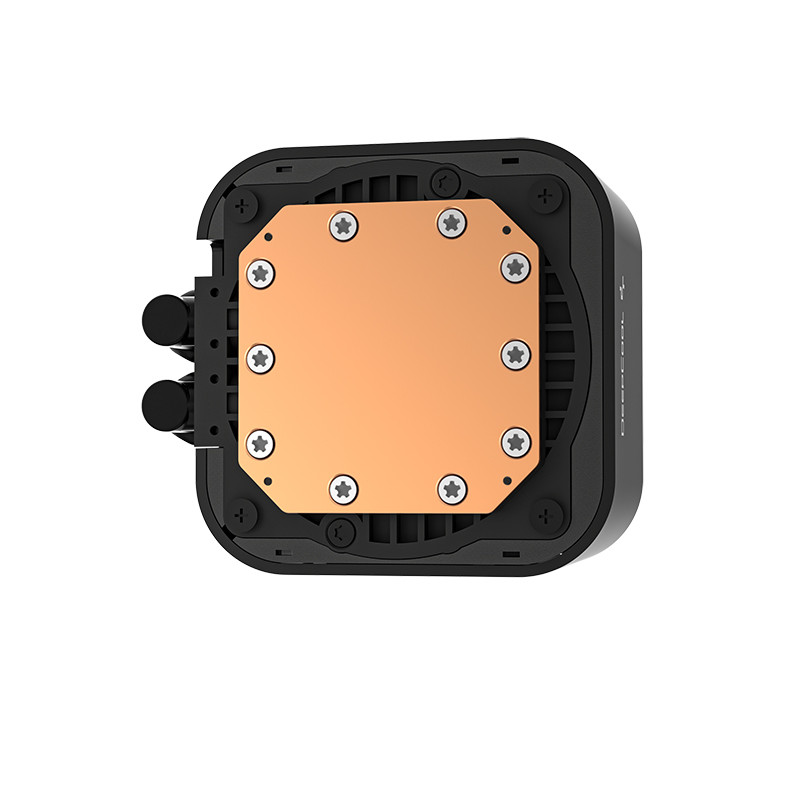

Pump Dimensions

89×76×64 mm(L×W×H)

Pump Speed

3400 RPM±10%

Pump Connector

3-pin

Pump Rated Voltage

12 VDC

Pump Rated Current

0.35 A

Pump Power Consumption

4.2 W

Fan Dimensions

120×120×25 mm(L×W×H)

Fan Speed

600~2400 RPM±10%

Fan Airflow

72.04 CFM

Fan Air Pressure

3.48 mmAq

Fan Noise

≤38.71 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.22 A

Fan Power Consumption

2.64 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.4 W（PUMP）/ 3.15 W（FAN×3）

Display Type

LED Digital Display

Display Module Rated Voltage

0.08 A±10%

Display Module Rated Current

5 VDC

Display Module Power Consumption

0.4 W

Display Area

53.9x49.15 mm

Warranty

5 Years

Note*

Price, feature and specifications are subject to change without notice.
