Type

ATX12V V3.0

Product Dimensions

150×160×86mm (W x L x H)

Efficiency certification

80Plus GOLD/ Cybenetics_Platinum

Fan Size

135mm

Fan Bearing

FDB (Fluid Dynamic Bearing)

Topology

Active PFC + Half Bridge SRC LLC + DC to DC

Capacitors

Full Japan Electrolytic Capacitors

Power Good Signal

100-150ms

Hold Up Time

≥ 16ms

Efficiency

≥90% Under Typical Load (50% Loading)

Protection

OPP/OVP/SCP/OTP/OCP/UVP

Operation Temperature

0-40°C

Regulatory

CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS;

Erp Regulation

ErP 2014

Environment Protection

WEEE/中国 RoHS/Triman

MTBF

100,000 Hours

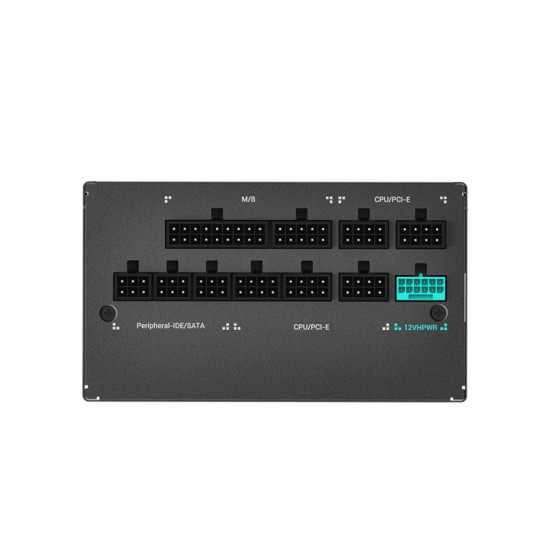

Connectors

Main 20+4Pin x1 = 1

CPU 4+4Pin x1 = 2

PCI-E 6+2Pin x1 = 3

SATA x4 = 2

12VHPWR(16Pin) x1 = 1

4Pin Peripheral x4 =1

Warranty

10 Years

Note*

Price, feature and specifications are subject to change without notice.
