- Model: FD-C-DEF7C-04

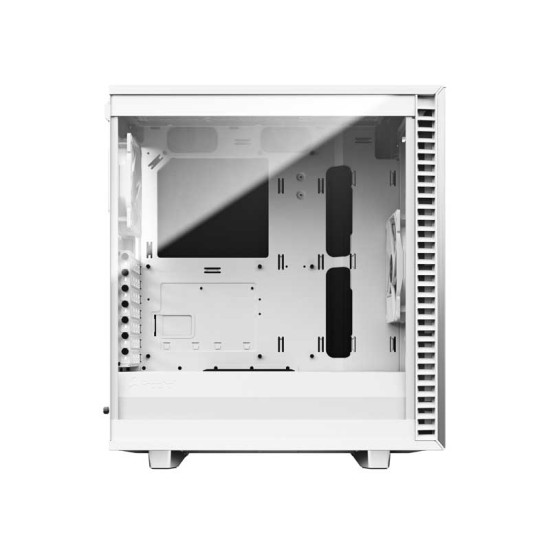

Define 7 Compact Light Tempered Glass
The new Define 7 Compact takes the strongest features of the
contemporary 7 Series design and places them in a conveniently compact frame.
- Compact yet spacious interior fits ATX, mATX or Mini-ITX
motherboards
- Fits GPUs up to 360 mm with a 240 mm radiator in the top
- Top panel effortlessly swaps from solid steel to filtered
ventilation
Compact yet spacious
The versatile layout of the Define 7 Compact allows you to
maximize the potential of the small footprint with full-size ATX hardware to
meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a
240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs
under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound
damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a
clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered
ventilation
Substantial cooling
- Install up to 7 x 120 mm or 4 x 140 mm fans, and radiators
up to 360 mm
- 1 x 120 mm and 1 x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for
optimal coverage and front radiator support
Concealed storage
You can fit two 2.5”/3.5” drives beneath the shroud and two
SSDs behind the backplate
More in store
A pair of SSDs are easily mounted straight on the PSU shroud
Front, top and base
Easy-to-clean high airflow nylon filters
|
Specification |
|
|
Specifications |
3.5"/2.5" Universal drive brackets : 2 Dedicated 2.5" drive brackets : 2 trays included, 4
positions total Expansion slots : 7 Front ports : 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x
USB 2.0, Audio I/O, Power button, Reset button Total fan mounts : 7 x 120 or 4 x 140 mm and 2 x 120 mm Front fan : 3 x 120 or 2 x 140 mm, (1 x Dynamic X2 GP-14
included) Top fan : 2 x 120 or 2 x 140 mm Rear fan : 1 x 120 mm, (1 x Dynamic X2 GP-12 included) Bottom fan : 1 x 120 mm (requires removal of HDD cage) Dust filters : Top, 2 x front, full length bottom Fixed velcro straps : Yes Cable routing grommets : Yes Captive thumbscrews : HDD brackets, SSD brackets, PSU
bracket Left side panel : Tempered glass Right side panel : Industrial sound-damped steel |
|
Compatibility |
Motherboard compatibility : ATX / mATX / mITX Power supply type : ATX PSU max length : 200 mm total (165 mm w/ HDD cage and
front fan) GPU max length : 341 mm (360 mm without front fan) CPU cooler max height : 169 mm Front radiator : Up to 360/280 mm (max 145 mm width) Top radiator : Up to 240 mm Rear radiator : 120 mm Bottom radiator : 120 mm (requires removal of HDD cage) Cable routing space : 17-28 mm |
|
Dimensions |
Case dimensions (LxWxH) : 427 x 210 x 474 mm Case dimensions w/o feet/protrusions/screws : 415 x 210 x
451 mm Package dimensions (LxWxH) : 536 x 310 x 521 mm Net weight : 8.76 kg Package weight : 11.04 kg Volume : 39.3 liters |
|
Other |
Package contents Define 7 Compact, Accessory box, User manual, Ventilated
top panel Product code White -FD-C-DEF7C-04 |
|
Warranty |
2 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
