- Model: FD-C-MES2A-01

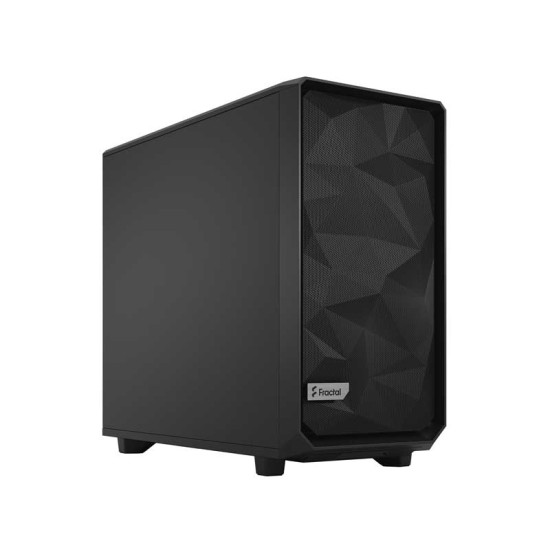

Meshify 2
The new Meshify 2 is a classic evolved with focus on
distinctive design, spacious interior and rugged good looks.
- Iconic angular mesh design provides filtered airflow with a
bold, stealth-inspired aesthetic
- Spacious adaptable interior for motherboards up to (and
including) 285 mm E-ATX
- Support for radiators up to 360 mm (front), 420 mm (top) and
280 mm (base)
Detachable front filter
New front nylon filter that can be removed for increased
airflow
New front panel design with hinged removable mesh and tether-free
bezel for easier access to front fan mounts
Three Dynamic X2 GP-14 fans come preinstalled with room to
expand up to a total of nine fans
Superlative storage
Convert to Storage Layout and install up to 11 HDDs
alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x
Multibracket included)
- Transformable interior design utilizing a movable wall for
enhancing custom builds
- The included Multibracket lets you convert any unused fan
position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while
preventing accidental drops
Extremely flexible
- Fits your custom water loop with large reservoirs and
radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and
280 mm (base)
- Easily holds large motherboards up to and including 285 mm
E-ATX
Open and interchangeable
Remove the entire top to build and route with zero
hindrance.
Type-C Interface
- USB 3.1 Gen 2 Type-C front I/O offers fast-charging and
speeds up to 10 Gbps
- Nexus+ 2 fan hub
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans
and six 3-pin fans
Versatile Multibracket
Versatile Multibracket that converts any unused fan position
to an HDD, SSD or pump mount
Cable management
Detachable PSU cable shield and integrated cable guides with
velcro straps further simplify cable management behind the board
Specification |
|
Specifications |
3.5"/2.5" Universal drive mounts : 6 included,
14 positions total + 1 Multibracket Dedicated 2.5" drive mounts :2 included, 4 positions
total Expansion slots : 7 + 2 Front interface : 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0,
Audio I/O, Power button, Reset button Total fan mounts : 9x 120/140 mm Front fan : 3x 120/140 mm (2x Dynamic X2 GP-14 included) Top fan : 3x 120/140 mm Rear fan : 1x 120/140 mm (1x Dynamic X2 GP-14 included) Bottom fan : 2x 120/140 mm Dust filters : Top, front and bottom Fixed velcro straps : Yes Cable routing grommets : Yes Captive thumbscrews : HDD, SSD and PSU brackets Left side panel : Steel Right side panel : Steel |
Compatibility |
Motherboard compatibility : E-ATX (max 285 mm)/ ATX / mATX
/ Mini-ITX Power supply type : ATX PSU max length : 250 mm (with HDD cage installed) GPU max length : Storage layout: 315 mm Open layout: 491
mm (467 mm w/ front fan) CPU cooler max height : 185 mm Front radiator : Up to 360/280 mm Top radiator : Up to 360/420 mm Rear radiator : 120 mm Bottom radiator : Up to 240/280 mm Cable routing space : 30 mm |
Dimensions |
Case dimensions (LxWxH) : 542 x 240 x 474 mm Case dimensions w/o feet/protrusions/screws : 541 x 240 x
454 mm Package dimensions (LxWxH) : 634 x 542 x 324 mm Net weight : Solid: 10.1 kg TG: 10.5 kg Gross weight : Solid: 12.8 kg TG: 13.2 kg Volume : 58.95 liters |
Other |
Package contents : Meshify 2 Case, User manual, Large
accessory box - HDD trays. Small accessory box Product code : FD-C-MES2A-01 |
Warranty |
2 Years |
Note* |
Price, feature and specifications
are subject to change without notice. |
