Graphics Processing

GeForce RTX 5060 Ti

Core Clock

2617 MHz (Reference card :2572 MHz)

CUDA® Cores

TBD

Memory Clock

28 Gbps

Memory Size

16GB

Memory Bus

128 bit

Memory Type

GDDR7

Card Bus

PCI-E 5.0

Digital Max Resolution

7680 x 4320

Multi-view

4

Dimension

L=215 W=122 H=40 mm

PCB Form

ATX

DirectX

DirectX 12 API

OpenGL

OpenGL 4.6

Recommended PSU

650W

Power Connectors

8 Pin*1

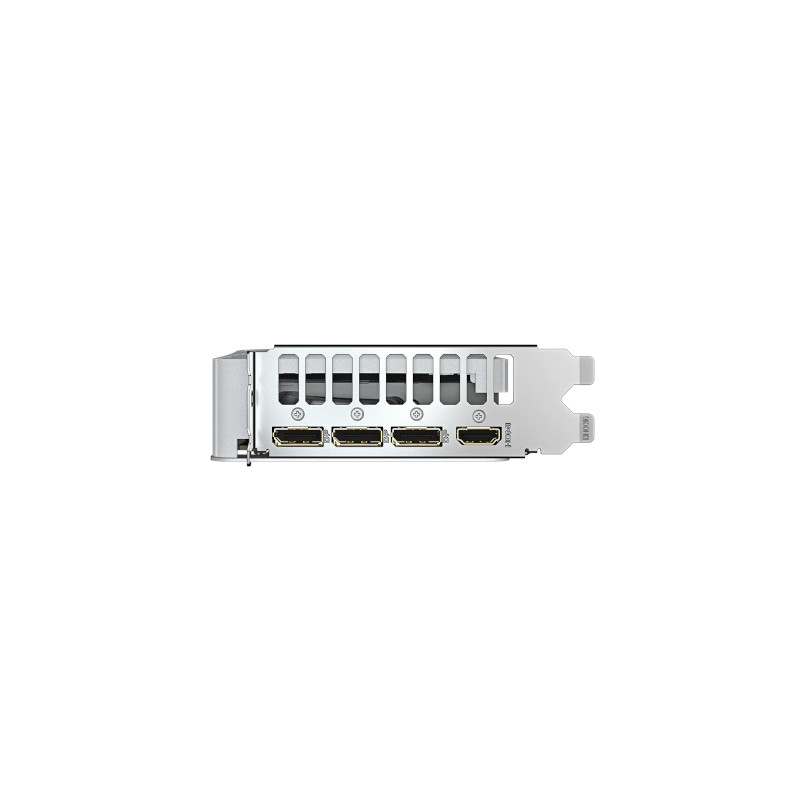

Output

DisplayPort 2.1b x3

HDMI 2.1b x1

Accessories

Quick guide

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
