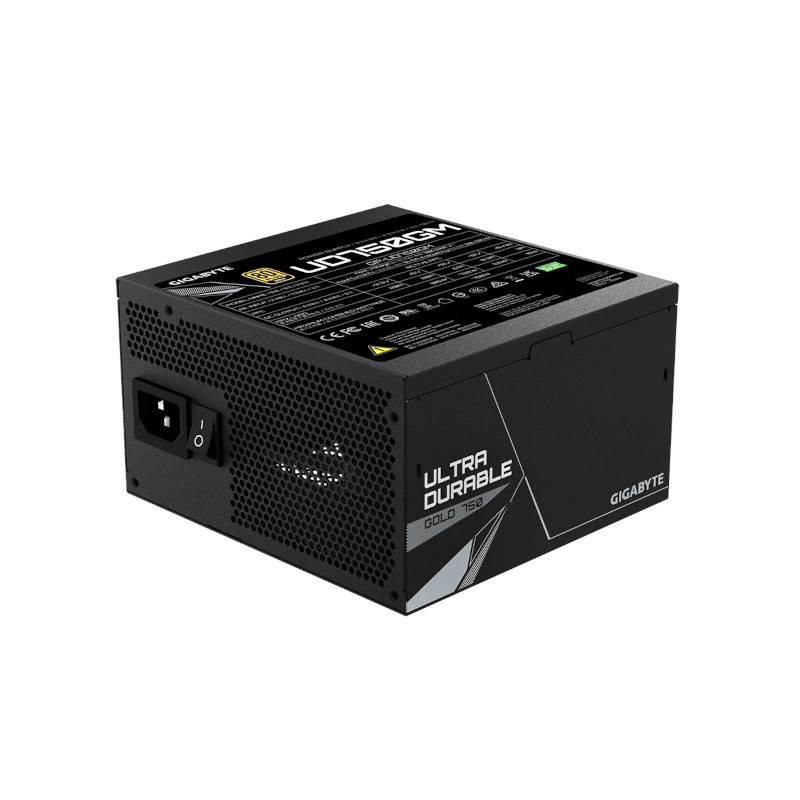

Gigabyte UD750GM 80 Plus Gold Fully Modular Power Supply
from
Save
-48%
₹7,855.00
₹15,000.00
₹5,090.00 ₹8,700.00
₹477,499.00 ₹500,000.00
₹14,499.00 ₹23,240.00
UD750GM
- Ultra Durable
- Main Japanese
capacitors
- Enhanced thermal
solution
- 120mm smart
hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP
protection
- 80 PLUS Gold
certified
- Fully modular
design
- Powerful single
+12V rail
- Compact design
- 5 years warranty
(Adjusted according to different regions)
Specification | |
Model | GP-UD750GM |
Type | Intel Form Factor ATX 12V v2.31 |
PFC | Active PFC (>0.9 typical) |
Input Voltage | 100-240 Vac (full range) |
Input Current | 12-6A |
Input Frequency | 60-50 Hz |
Output Capacity | 750W |
Dimension | 150 x 140 x 86 mm |

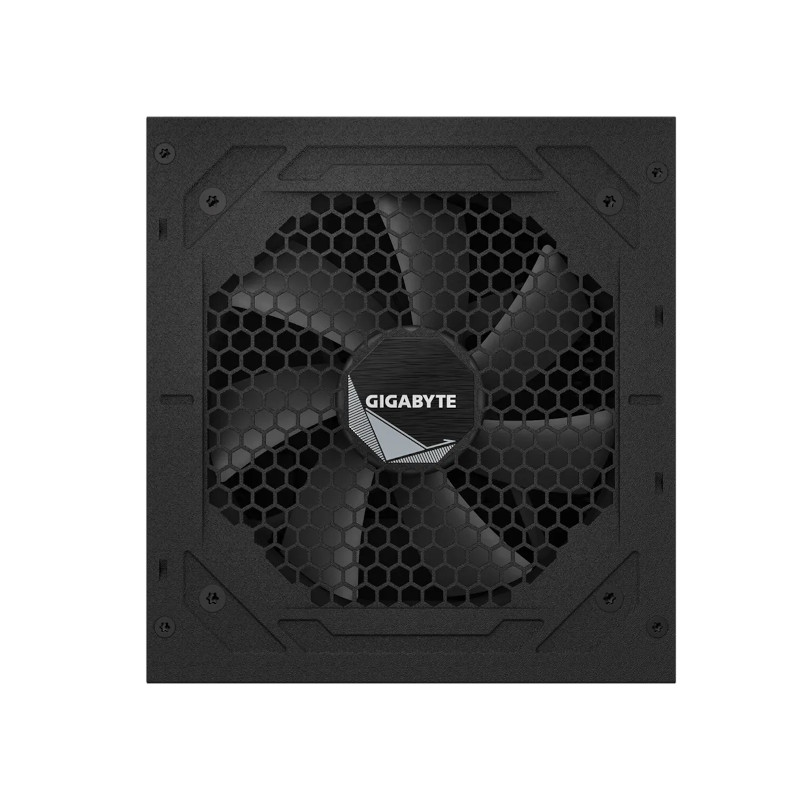

Fan Type | 120mm Hydraulic Bearing(HYB)fan |
80 PLUS | Gold |
Efficiency | 90% at typical load |
MTBF | >100,000 hours |
Protection | OVP/OPP/SCP/UVP/OCP/OTP |
Power Good Signal | 100-150ms |
Hold Up Time | >16ms |
Cable Type | Flat, All black |

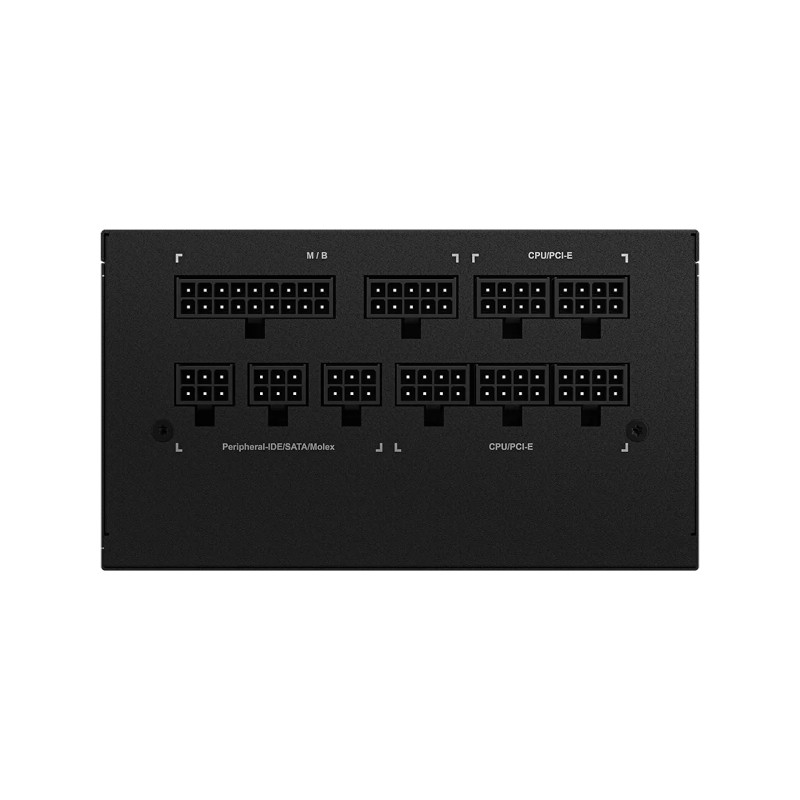

Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 :
500mm+120mm+120mm+150mm*1 |
Warranty | 5 years warranty |
Note* | Price,
feature and specifications are subject to change without notice. |
