CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors

Please refer www.msi.com for more information on compatible CPU.

Chipset

AMD A520 Chipset

Memory

2x DDR4 memory slots, support up to 64GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

1DPC 1R max speed 4600 MHz

1DPC 2R max speed 3866 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

Onboard Graphics

1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12

Support HDCP 1.4 & 2.3

1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1

Maximum shared memory of 16 GB

Available for the processor with integrated graphics.Graphics specifications may vary depending on the CPU installed.

SLOTS

1x PCIe 3.0 x16 slot (from AMD processor)1

Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors

Supports x8 speed with Ryzen™ 3000G processors

Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors

1x PCIe 3.0 x1 slot

The supported specification depends on installed processor.

Storage

AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)

Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors

Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors

Supports 2242/ 2260/ 2280 storage devices

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD A520 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN

1x Realtek® RTL8111H Gigabit LAN controller

Audio

Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

Internal Connectors

1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1xTPM module connector

1x Clear CMOS jumper

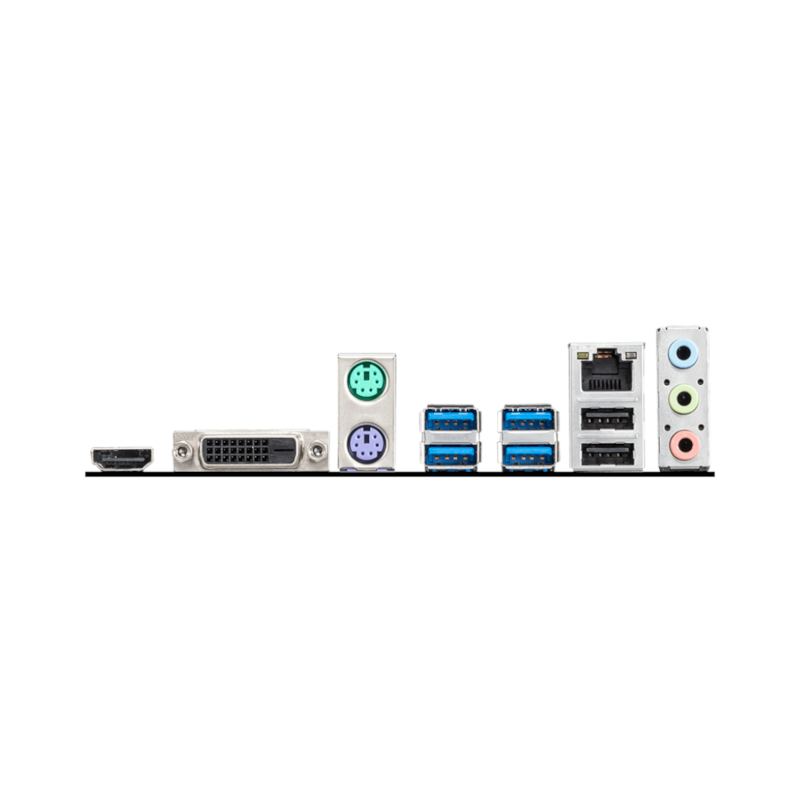

Back Panel Ports

LAN port

HDMI™

DVI-D

Keyboard / Mouse

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

USB 2.0 Ports

Audio Connectors

Operating System

Support for Windows® 10 64-bit

Mounting

8 mounting holes

Dimension

Micro-ATX Form Factor

9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
