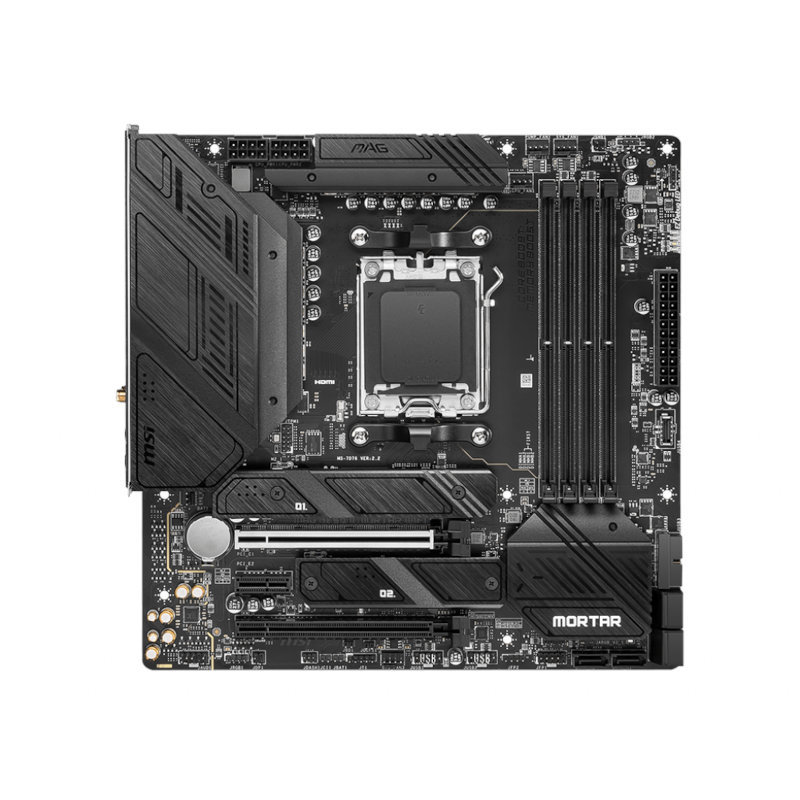

MAG B650M MORTAR WIFI
- Supports AMD Ryzen™
7000 Series Desktop Processors
- Supports DDR5
Memory, up to 6400+(OC) MHz
- Premium Thermal
Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high
performance system and non-stop works
- 2.5G LAN and Intel
Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia
use. Delivers a secure, stable and fast network connection
- Lightning M.2:
Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G:
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than
USB 3.2 Gen 1
- AUDIO BOOST 5:
Reward your ears with studio grade sound quality for the most immersive gaming
experience
|
Specification |
|
|
CPU |
Supports AMD
Ryzen™ 7000 Series Desktop Processors Socket AM5 |
|
Chipset |
AMD B650 |
|
Memory |
4x DDR5, Maximum
Memory Capacity 128GB Memory Support
DDR5
6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC)
MHz |
|
Expansion Slots |
2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0
supports up to x16 (From CPU) PCI_E2 PCIe 3.0
supports up to x1 (From Chipset) PCI_E3 PCIe 4.0
supports up to x4 (From Chipset) |
|
Onboard Graphics |
1x HDMI™ 1x DisplayPort Support HDMITM
2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4,
maximum resolution of 8K 60Hz* *Available only
on processors featuring integrated graphics. Graphics specifications may vary
depending on the CPU installed. |
|
Storage |
2x M.2 slot M.2_1 (From CPU)
supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU)
supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
|
RAID |
Supports RAID 0,
RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0
and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do
not support RAID function. |
|
USB |
4x USB 2.0
(Front) 4x USB 3.2 Gen1
Type A (Rear) 2x USB 3.2 Gen1
Type A (Front) 3x USB 3.2 Gen2
Type A (Rear) 1x USB 3.2 Gen2
Type C (Front) 1x USB 3.2 Gen2x2
Type C (Rear) |
|
Audio |
Realtek® ALC4080
Codec 7.1-Channel High
Performance Audio Supports S/PDIF
output Supports up to
32-Bit/384 kHz playback on front panel |
|
LAN |
Realtek® RTL8125B
2.5Gbps LAN |
|
WIRELESS /
BLUETOOTH |
AMD Wi-Fi 6E The Wireless
module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO
TX/RX Supports 20MHz,
40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11
a/ b/ g/ n/ ac/ ax Supports
Bluetooth® 5.2** * Wi-Fi 6E 6GHz
may depend on every country’s regulations and will be ready in Windows 10
build 21H1 and Windows 11. ** Bluetooth 5.2
will be ready in Windows 10 build 21H1 and Windows 11. |
|
Internal
Connectors |
1x Power
Connector(ATX_PWR) 2x Power
Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel
(JFP) 1x Chassis
Intrusion (JCI) 1x Front Audio
(JAUD) 1x Tuning
Controller connector(JDASH) 2x Addressable V2
RGB LED connector (JARGB_V2) 2x RGB LED
connector(JRGB) 1x TPM pin
header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1
Type A 1x USB 3.2 Gen2
Type C |
|

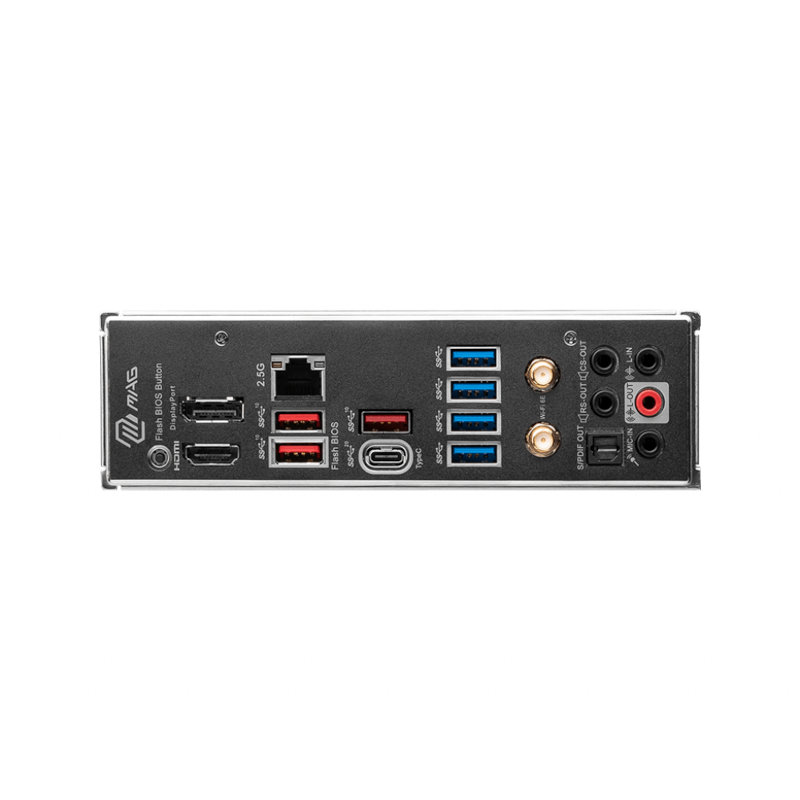

Back Panel Ports |
DisplayPort 1.4 2.5G LAN Port USB 3.2 Gen 2
10Gbps Type-A USB 3.2 Gen 1
5Gbps Type-A Wi-Fi / Bluetooth
Antenna HD Audio
Connectors Flash BIOS Button HDMI™ 2.1 Port USB 3.2 Gen 2x2
20Gbps Type-C Optical S/PDIF
OUT |
|
LED FEATURE |
4x EZ Debug LED |
|
Dimensions |
mATX 243.84mmx243.84mm |
|
Operating System |
Support for
Windows® 11 64-bit, Windows® 10 64-bit |
|
Warranty |
3 Years |
|
Note* |
Price,
feature and specifications are subject to change without notice. |
