Radiator Compatibility

120 / 140 / 240 mm

Case Form Factor

Mid Tower

Motherboard Form Factor Support

Regular: ATX / Micro-ATX / Mini-ITX

Back-connect: ATX / Micro-ATX

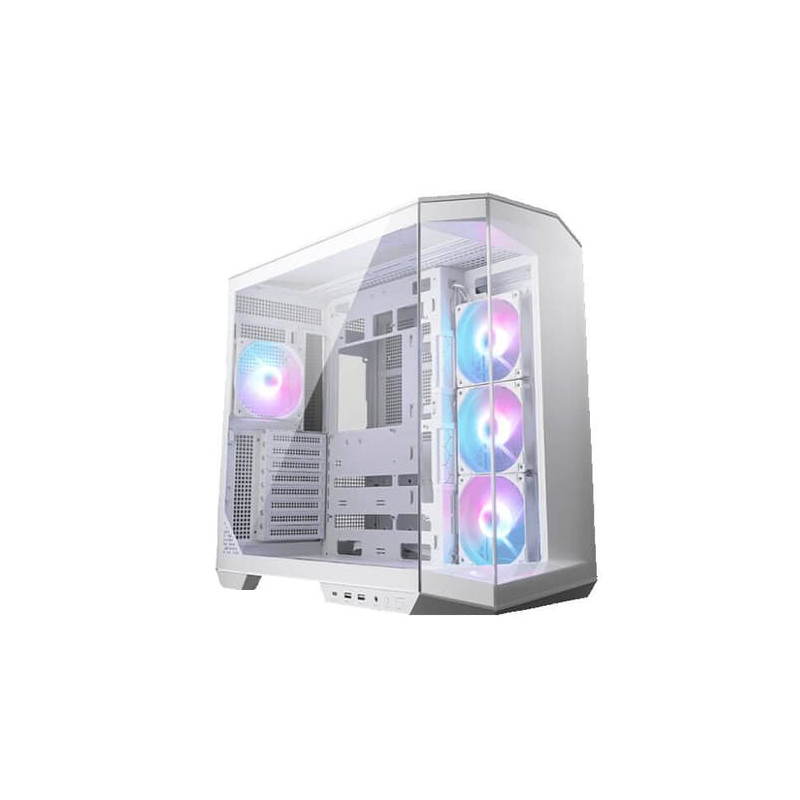

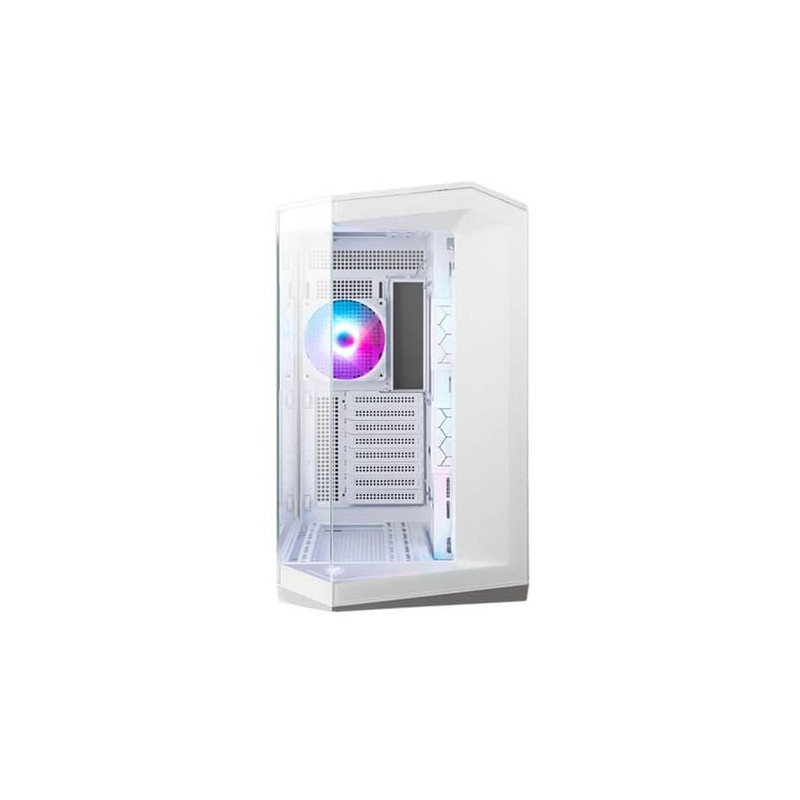

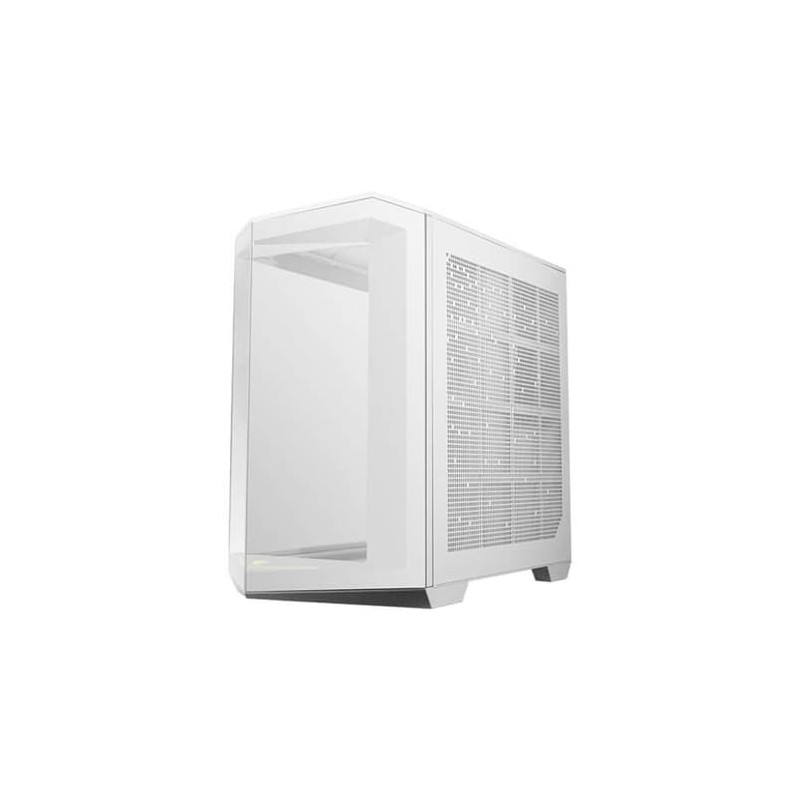

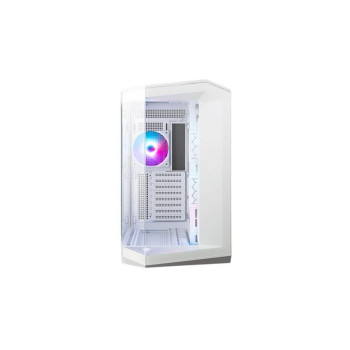

Product Name

MAG PANO 100R PZ WHITE

Drive Mount Support

3 x 2.5”

2 x 2.5”/3.5” combo

Dimension

518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches

I/O Ports

1 x USB 20Gbps Type-C

2 x USB 5Gbps Type-A

1 x Audio-Out / Mic-in

1 x LED Switch Button

1 x Power Button

Case Expansion Slots

8

Pre-install Fan

Side: 3 x 120 mm

Rear: 1 x 120 mm

Fan Support

Top: 3 x 120 mm / 3 x 140 mm

Front: NA

Rear: 1 x 120 mm

Side: 3 x 120 mm / 2 x 140 mm

Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm

Maximum PSU Length

200 mm / 7.87 inches

Maximum GPU Length

380 mm / 14.96 inches

Maximum CPU Cooler Length

166 mm / 6.54 inches

Radiator Layout

Top: 120 / 240 / 360 mm

Front: NA

Rear: 120 mm

Side: 120 / 240 / 360 mm

Bottom: 120 / 240 / 360 mm

Lightning

Side: 3 x ARGB Reverse-blade

Rear: 1 x ARGB

Power Supply

ATX

Warranty

1 Year

Note*

Price, feature and specifications are subject to change without notice
