CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Chipset

AMD B850

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen™ 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8200+ MT/s

• 1DPC 2R Max speed up to 8000+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• The DIMM slots on this motherboard only have double-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™

Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Audio

Realtek® ALC4080 Codec

7.1-Channel USB High-Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

Supports S/PDIF output

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

2x SATA 6G

M.2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M.2_2 slot

• Supports up to PCIe 4.0 x4

• Supports 2280 storage devices

RAID

• Supports RAID 0, and RAID 1 for SATA storage devices

• Supports RAID 0, and RAID 1 for M.2 NVMe storage devices

USB

2x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

LAN

1x Realtek® 8126 5G LAN

WIRELESS / BLUETOOTH

Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

1x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Addressable V2 RGB LED connector (JARGB_V2)

1x TPM pin header(Support TPM 2.0)

2x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

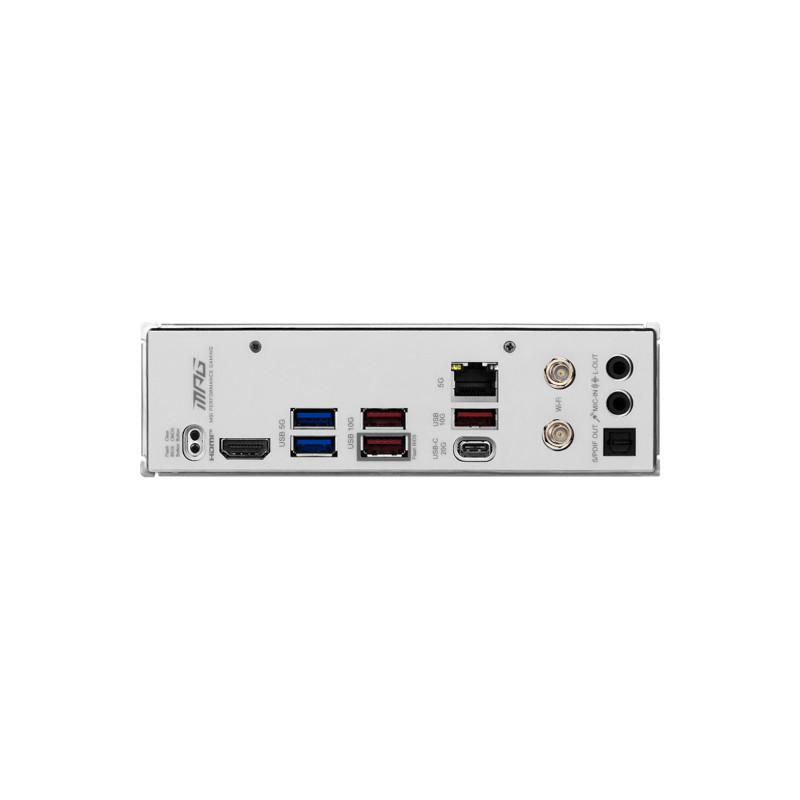

Back Panel Ports

Clear CMOS Button

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI™

USB 5Gbps Type-A

USB 10Gbps Type-A

USB 20Gbps Type-C

USB 10Gbps Type-A

Optical S/PDIF Out

LED FEATURE

4x EZ Debug LED

1x EZ Memory Detection LED

Dimensions

Mini-ITX

170mmx170mm

Operating System

Support for Windows® 11 64-bit

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
