CPU

Supports Intel® Core™ Ultra Processors (Series 2)

LGA 1851

Chipset

INTEL B860

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8600+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

• The DIMM slots on this motherboard have single-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™

Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

1x Type-C DisplayPort

ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices

2x SATA 6G

RAID

•Supports RAID 0 and RAID 1 for SATA storage devices

Onboard Thunderbolt

Thunderbolt Resource CPU

1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

USB

2x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 10Gbps Type C (Front)

LAN

1x Intel® Killer™ E5000B 5G LAN

WIRELESS / BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

2x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

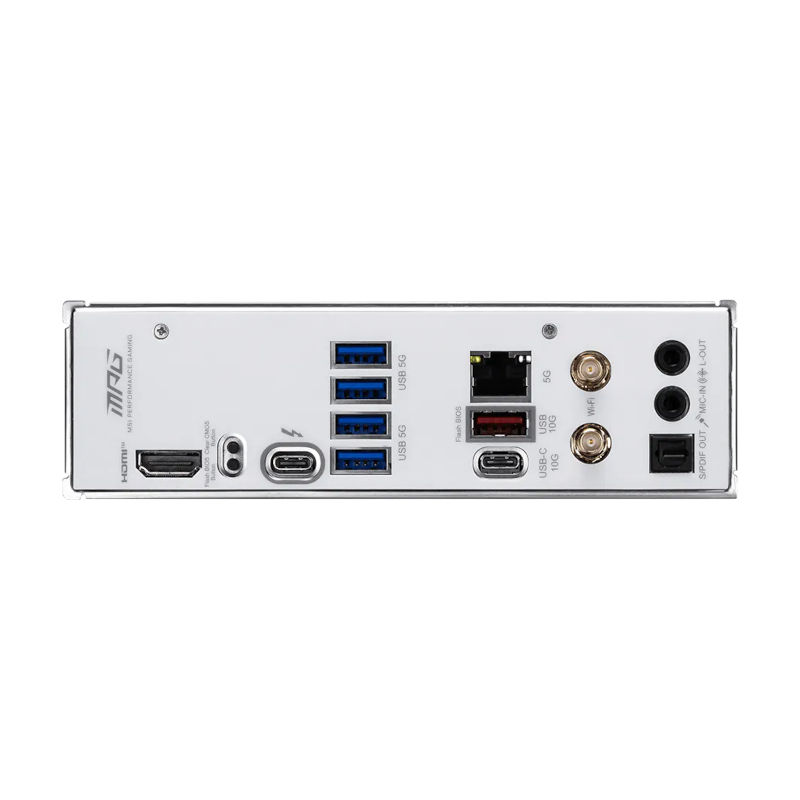

Back Panel Ports

Clear CMOS Button

USB 5Gbps Type-A

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

HDMI™

Flash BIOS Button

Thunderbolt 4

USB 10Gbps Type-C

USB 10Gbps Type-A

Optical S/PDIF Out

LED FEATURE

4x EZ Debug LED

1x EZ Memory Detection LED

Dimensions

Mini-ITX

170mmx170mm

Operating System

Support for Windows® 11 64-bit

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
