Processor

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Chipset

AMD B650

Memory

2x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Expansion Slot

1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)

• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Onboard Graphics

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage

1x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

LAN

Realtek® RTL8111H Gigabit LAN

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED Feature

4x EZ Debug LED

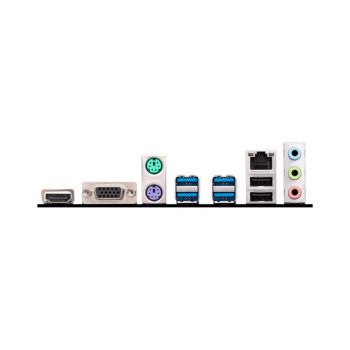

Back Panel Ports

HDMI™

VGA

Keyboard/Mouse

USB 3.2 Gen 1 5Gbps (Type-A)

LAN port

Audio connectors

USB 2.0

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Dimensions

mATX

211mmx243.84mm

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
