Processor

Supports AMD Ryzen™ 7000 Series Desktop Processors

Socket AM5

Chipset

AMD B650

Memory

4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6000+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Expansion Slot

1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Onboard Graphics

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Supports DP 1.4, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 1920x1200 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN

Realtek® 8125BG 2.5G LAN

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

2x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED Feature

4x EZ Debug LED

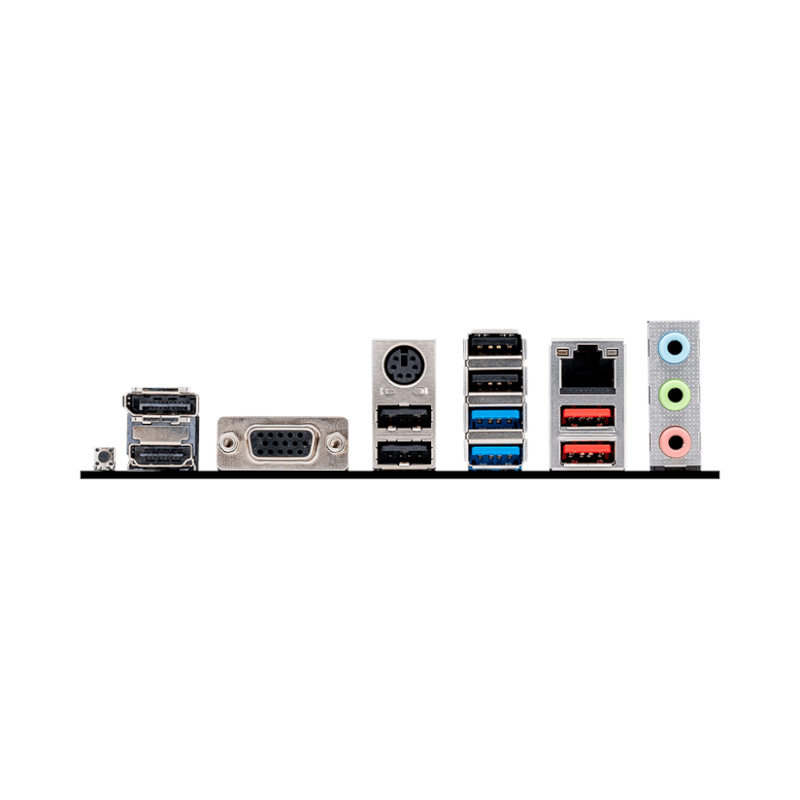

Back Panel Ports

DisplayPort

VGA

Keyboard / Mouse

USB 2.0

2.5G LAN

Audio connectors

Flash BIOS Button

HDMI™

USB 2.0

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-A)

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Dimensions

mATX

243.84mmx243.84mm

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
