CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700

Chipset

INTEL H610

Memory

2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Expansion Slots

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Onboard Graphics

1x HDMI™

Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Storage

1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

2x SATA 6G

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

LAN

Realtek® RTL8111H Gigabit LAN

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

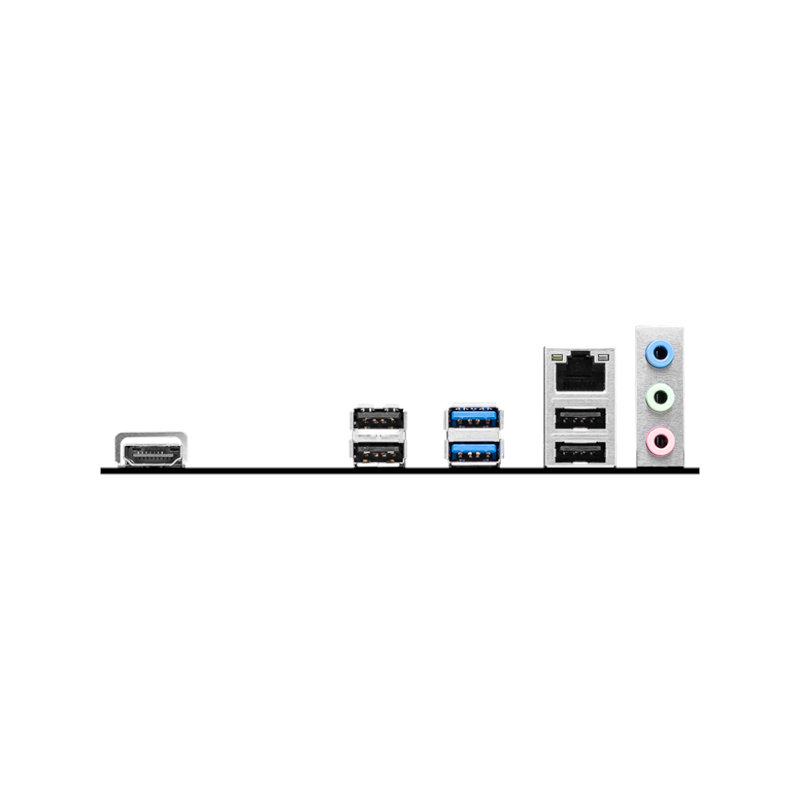

Back Panel Ports

HDMI™

USB 3.2 Gen 1 5Gbps (Type-A)

USB 2.0

LAN port

Audio Connectors

USB 2.0

LED FEATURE

4x EZ Debug LED

Dimensions

mATX

200mmx236.16mm

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
