Specification | |
Processor | Support
Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and
Celeron® Processors LGA
1700 |
Chipset | INTEL
Z790 |
Memory | 4x DDR5
UDIMM, Maximum Memory Capacity 256GB Memory
Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max.
overclocking frequency: • 1DPC
1R Max speed up to 7800+ MHz • 1DPC
2R Max speed up to 6600+ MHz • 2DPC
1R Max speed up to 6400+ MHz • 2DPC
2R Max speed up to 5600+ MHz Supports
Intel® XMP 3.0 OC Supports
Dual-Controller Dual-Channel mode Supports
non-ECC, un-buffered memory |
Onboard
Graphics | 1x
HDMI™ Support
HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x
DisplayPort Support
DP 1.4, maximum resolution of 8K 60Hz* *Available
only on processors featuring integrated graphics. Graphics specifications may
vary depending on the CPU installed. |
Expansion
Slots | 3x
PCI-E x16 slot 1x
PCI-E x1 slot PCI_E1
Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2
Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3
Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4
Gen PCIe 3.0 supports up to x1 (From Chipset) |
Storage | 4x M.2 M.2_1
Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242
devices M.2_2
Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242
devices M.2_3
Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices M.2_4
Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports
2280/2260/2242 devices 6x SATA
6G |
RAID | Supports
RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports
RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
USB | 2x USB
2.0 (Rear) 4x USB
2.0 (Front) 2x USB
5Gbps Type A (Rear) 2x USB
5Gbps Type A (Front) 3x USB
10Gbps Type A (Rear) 1x USB
10Gbps Type C (Front) 1x USB
20Gbps Type C (Rear) |
LAN | Intel®
2.5Gbps LAN |
Audio | Realtek®
ALC4080 Codec 7.1-Channel
USB High Performance Audio Supports
S/PDIF output |
WIRELESS
LAN & BLUETOOTH® | Wi-Fi
6E The
Wireless module is pre-installed in the M.2 (Key-E) slot Supports
MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports
802.11 a/ b/ g/ n/ ac/ ax Supports
Bluetooth® 5.3**, FIPS, FISMA * 6GHz
band support may depend on every country’s regulations and Wi-Fi 6E requires
Windows 11. ** The
Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s
website for details. |
Internal
Connectors | 1x
Power Connector(ATX_PWR) 2x
Power Connector(CPU_PWR) 1x CPU
Fan 1x Pump
Fan 6x
System Fan 2x
Front Panel (JFP) 1x
Chassis Intrusion (JCI) 1x
Front Audio (JAUD) 1x
Tuning Controller connector(JDASH) 3x
Addressable V2 RGB LED connector (JARGB_V2) 1x RGB
LED connector(JRGB) 1x TPM
pin header(Support TPM 2.0) 1x USB4
card connector (JTBT_U4_1, supports RTD3) 4x USB
2.0 ports 2x USB
5Gbps Type A ports 1x USB
10Gbps Type C ports |
LED
Feature | 4x EZ
Debug LED |

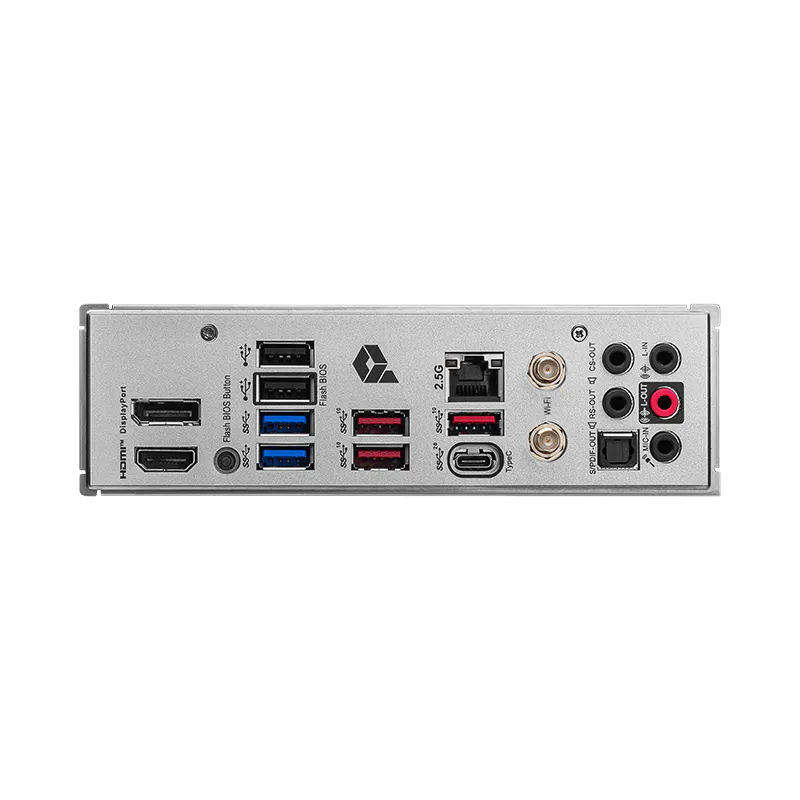

Back
Panel Ports | DisplayPort USB 2.0 2.5G
LAN Wi-Fi /
Bluetooth Audio
Connectors HDMI™ Flash
BIOS Button USB
5Gbps Type-A USB
10Gbps Type-A USB
20Gbps Type-C S/PDIF-OUT |
Operating
System | Support
for Windows® 11 64-bit |
Dimensions | ATX 243.84mmx304.8mm |
Warranty | 3 Years |
Note* | Price, feature and
specifications are subject to change without notice. |
