- Model: Radeon RX 6700 XT MECH 2X 12G OC

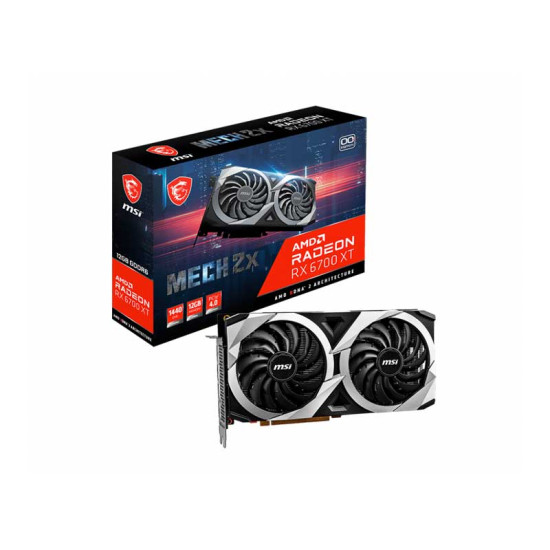

Radeon™ RX 6700 XT MECH 2X 12G OC
Performance to dominate your game. The AMD Radeon™ RX 6700 XT graphics card, powered by AMD RDNA™ 2 architecture, featuring 40 powerful enhanced Compute
Units, the all new AMD Infinity Cache and 12GB of dedicated GDDR6 memory, is
engineered to deliver ultra-high frame rates and powerhouse 1440p resolution
gaming.
Boost Clock / Memory Speed
- TBD MHz / 16 Gbps
- 12GB GDDR6
- DisplayPort x 3 (v1.4)
HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)
Dual Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design
creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest
stable overclock settings.
- On Screen Display: Provides real-time information of
your system's performance.
- Predator: In-game video recording.
Dragon Center
- MSI's exclusive Dragon Center software lets you monitor,
tweak and optimize MSI products in real-time.
|
Specification |
|
|
Model Name |
RX 6700 XT MECH 2X 12G OC |
|
Graphics Processing Unit |
Radeon™ RX 6700 XT |
|
Interface |
PCI Express® Gen 4 |
|
Cores |
2560 Units |
|
Core Clocks |
TBD |
|
Memory Speed |
16 Gbps |
|
Memory |
12GB GDDR6 |
|
Memory Bus |
192-bit |
|
Output |
DisplayPort x 3 (v1.4) / HDMI x 1 (Supports
4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
|
HDCP Support |
Y |
|
Power Consumption |
TBD |
|
Power Connectors |
8-pin x 2 |
|
Recommended PSU |
650 W |
|
Card Dimension (Mm) |
247 x 131 x 51 mm |
|
Weight (Card / Package) |
921 g / 1393 g |
|
DirectX Version Support |
12 API |
|
OpenGl Version Support |
4.6 |
|
Multi-GPU Technology |
Crossfire™, 2-Way (Bridgeless)(DX12) |
|
Afterburner OC |
Y |
|
Maximum Displays |
4 |
|
VR Ready |
Y |
|
Digital Maximum Resolution |
7680 x 4320 |
|
Warranty |
3 years |
|
Note* |
Price, feature and specifications
are subject to change without notice |
