CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Socket AM4

Chipset

AMD A520

Memory

2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE

Ryzen™ 5000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 4600+ MT/s

• 1DPC 2R Max speed up to 3866+ MT/s

Supports JEDEC Speed

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Memory Overclocking by A-XMP OC mode

• The DIMM slots on this motherboard have double-sided latches.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Expansion Slots

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)

*The supported specification depends on installed processor.

Onboard Graphics

1x HDMI™

Support HDMITM 1.4, maximum resolution of 4K 30Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Storage

1x M.2

M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

LAN

Realtek® RTL8111H 1Gbps LAN

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

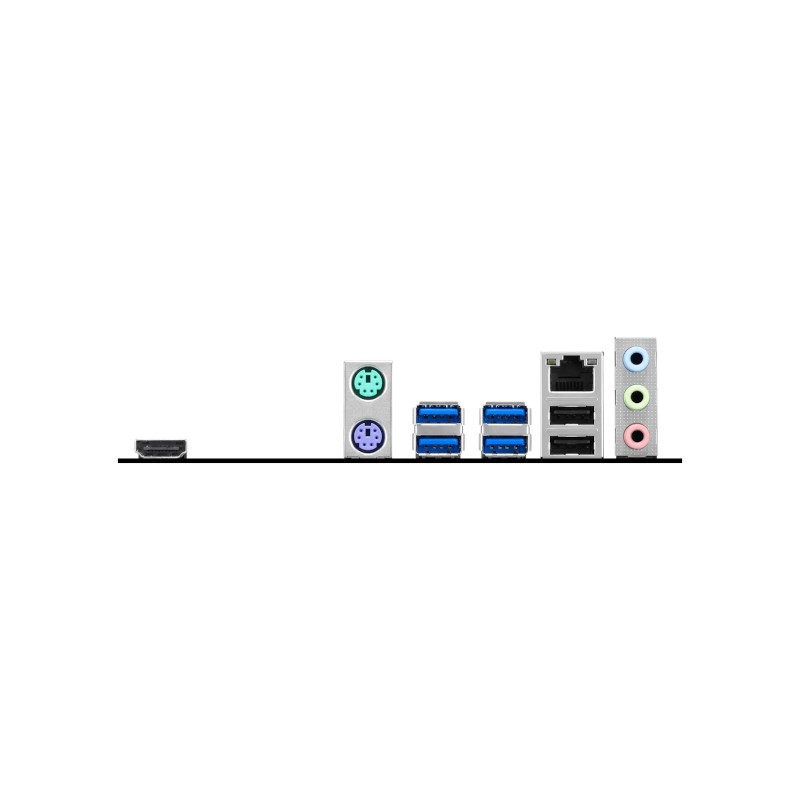

Back Panel Ports

HDMI™

Keyboard / Mouse

USB 5Gbps Type-A

LAN Port

Audio connectors

USB 2.0

LED FEATURE

4x EZ Debug LED

Dimensions

mATX

200mmx236mm

Operating System

Support for Windows® 11 64-bit

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
