Processor

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Socket AM5

Chipset

AMD B650

Memory

2x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

Expansion Slot

1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 7000 Series processors)

• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)

• Supports x4 (For Ryzen™ 5 8500G processor)

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Onboard Graphics

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage

1x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

LAN

Realtek® RTL8125BG 2.5G LAN

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED Feature

4x EZ Debug LED

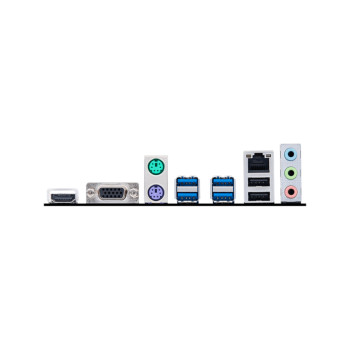

Back Panel Ports

HDMI™

VGA

Keyboard/Mouse

USB 3.2 Gen 1 5Gbps (Type-A)

LAN port

Audio connectors

USB 2.0

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Dimensions

mATX

243.84mmx243.84mm

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
