Processor

Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700

Chipset

INTEL B760

Memory

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 4800+ MHz

• 1DPC 2R Max speed up to 4600+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Expansion Slot

1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)

Onboard Graphics

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

Support DP 1.4, maximum resolution of 4K 60Hz*

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

1x HDMI™

1x DisplayPort

1x VGA

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage

2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G port

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

Realtek® RTL8111H Gigabit LAN

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type C (Rear)

Internal Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0

2x USB 3.2 Gen1 Type A

LED Feature

4x EZ Debug LED

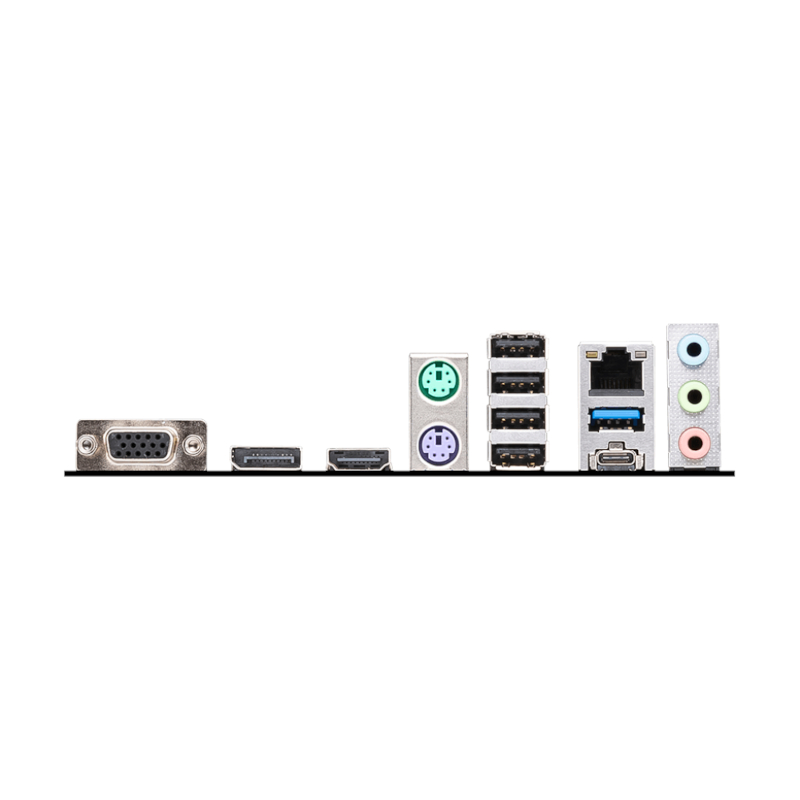

Back Panel Ports

VGA

DisplayPort

HDMI™

Keyboard / Mouse

USB 2.0

LAN port

Audio Connectors

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Dimensions

mATX

243.84mmx243.84mm

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
