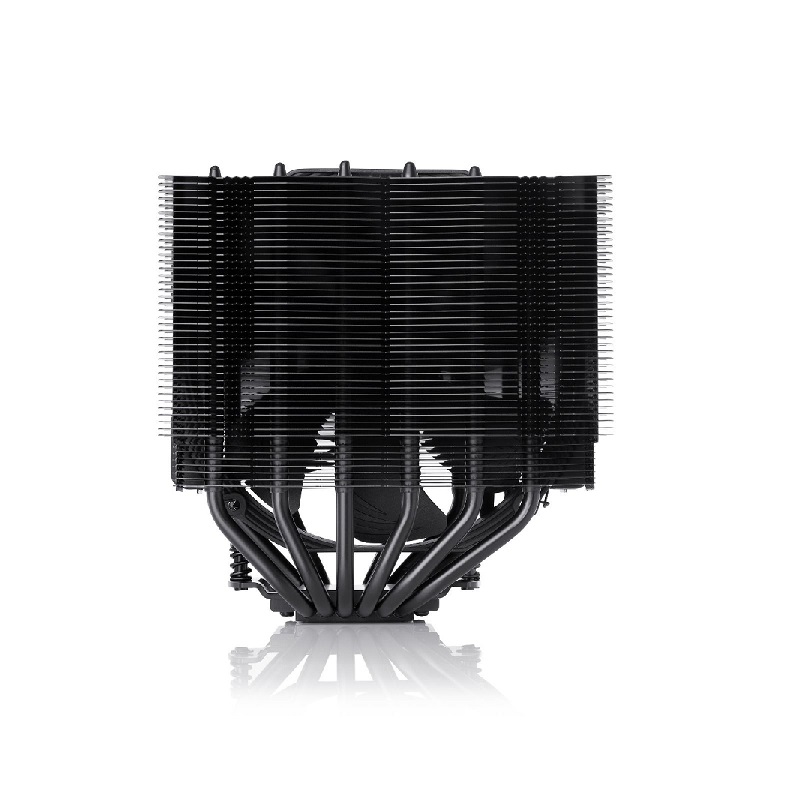

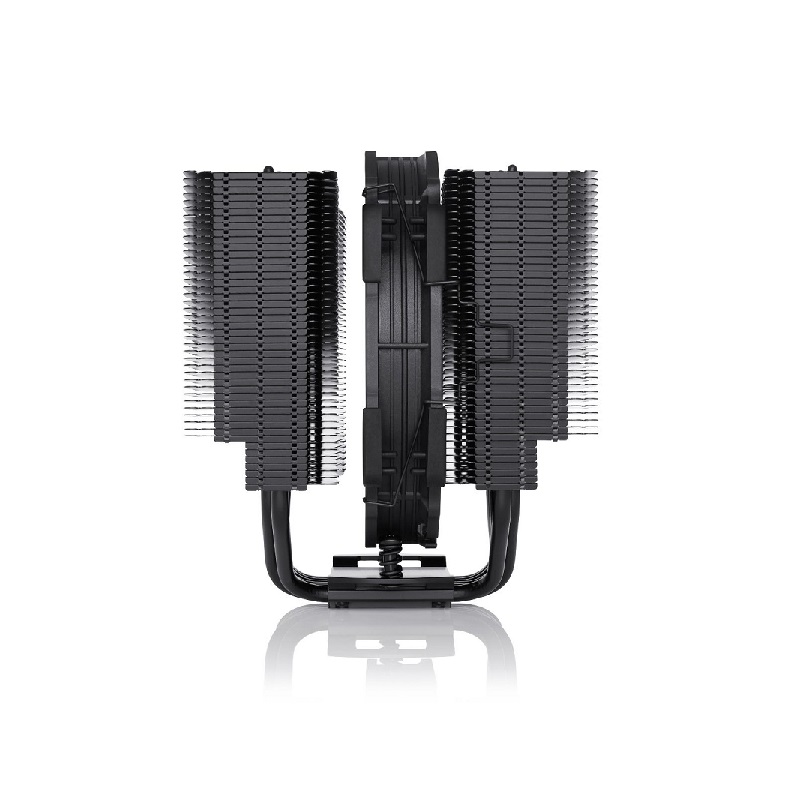

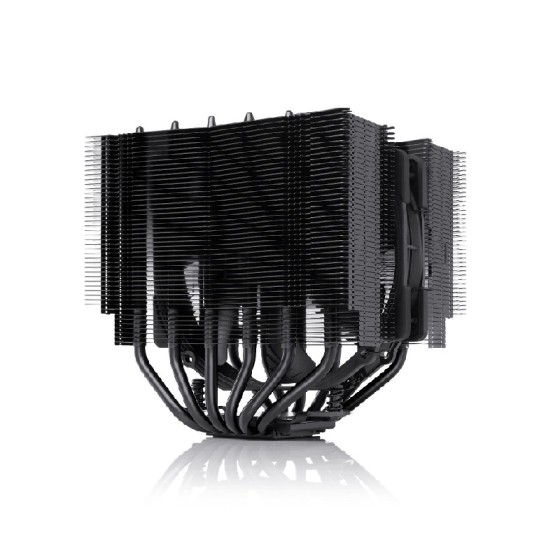

- Model: NH-D15S CH.BK
NH-D15S Chromax.Black
The NH-D15S chromax.black is an all-black version of
Noctua’s award-winning NH-D15S premium-quality quiet CPU cooler.
Thanks to the same asymmetrical dual-tower heatsink design and single NF-A15
PWM fan, it stays true to the NH-D15S’s successful formula of fusing dual-tower
performance with excellent RAM, case and PCIe compatibility. At the same time,
the chromax.black version with its black fan and black coated heatsink combines
these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™
multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal
compound and a full 6-year manufacturer’s warranty, the NH-D15S
chromax.black is a premium choice for customers who seek a highly compatible
dual-tower heatsink that looks just as great as it cools.
|
Specification |
|
|
Socket compatibility |
Intel LGA2066,
LGA2011-0 & LGA2011-3 (Square ILM), LGA1200,
LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2,
FM2+ (backplate required),
AM4 |
|
Height (without fan) |
160 mm |
|
Width (without fan) |
150 mm |
|
Depth (without fan) |
135 mm |
|
Height (with fan) |
160 mm |
|
Width (with fan) |
150 mm |
|
Depth (with fan) |
135 mm |
|
Weight (with fan) |
1150 g |
|
Material |
Copper (base and heat-pipes), aluminium (cooling fins),
soldered joints & nickel plating |
|
NSPR |
167 |
|
Max. TDP |
see NSPR |
|
Fan compatibility |
140x150x25 (with 120mm mounting holes), 140x140x25 (with
120mm mounting holes), 120x120x25 |
|
Scope of delivery |
Black NH-D15S heatsink NF-A15 HS-PWM chromax.black premium fan NA-RC7 Low-Noise Adaptor (L.N.A) NT-H1 high-grade thermal compound Black SecuFirm2™ mounting kit Black fan-clips for second NF-A15 Noctua Metal Case-Badge |
|
FAN Specification |
Model : NF-A15 HS-PWM chromax.black Bearing : SSO2 Max. rotational speed (+/- 10%) : 1500 RPM Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM Min. rotational speed (PWM, +/-20%) : 300 RPM Max. airflow : 140,2 m³/h Max. airflow with L.N.A.: 115,5 m³/h Max. acoustical noise : 24,6 dB(A) Max. acoustical noise with L.N.A. : 19,2 dB(A) Input power : 1,56 W Voltage range : 12 V MTTF : > 150.000 h |
|
Warranty |
6 Years |
|
Note* |
Price, feature and specifications are subject to change without notice. |
