- Model: RL-KR360-B2

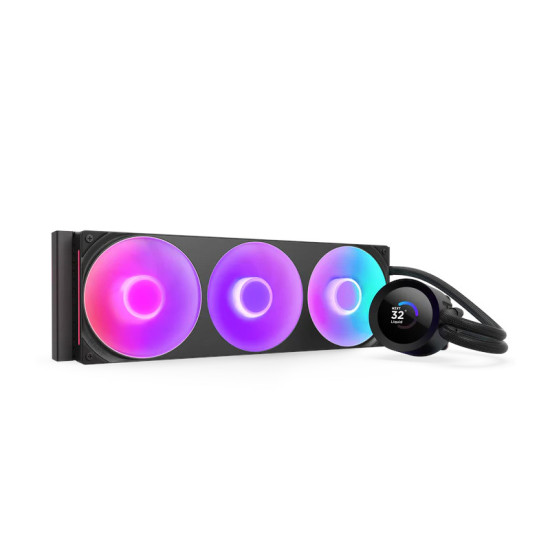

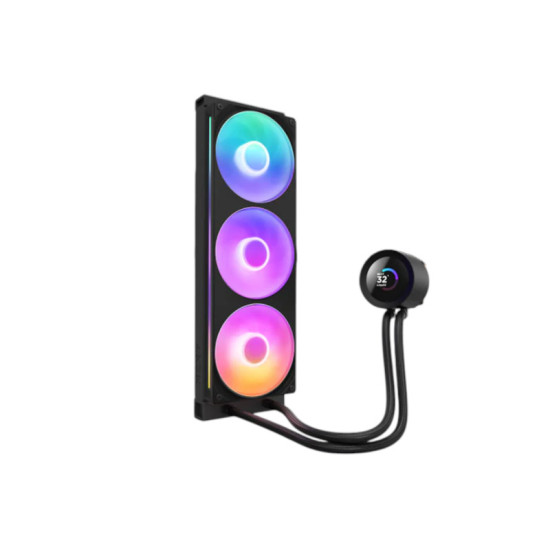

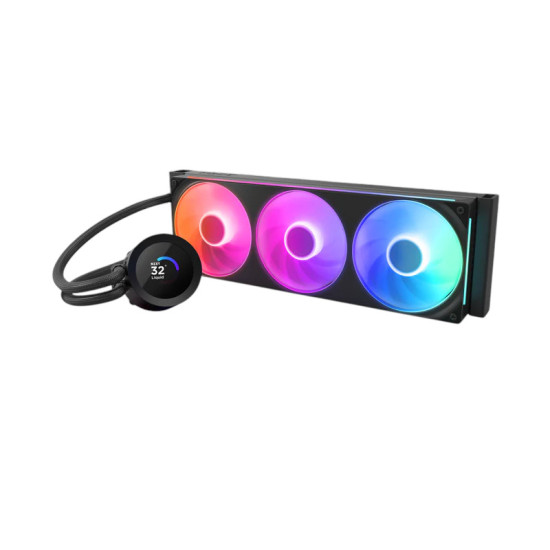

Kraken Plus 360 RGB - Black
RL-KR360-B2
- High-Performance Cooling: The NZXT Turbine pump is
engineered for high flow and head pressure, delivering efficient, low-noise
cooling to keep your CPU performing at its best under heavy workloads.
- Custom LCD Screen: Display real-time system temps, animated
GIFs, custom images, or web integrations like Spotify and YouTube on a bright
1.54" square LCD — fully customizable through NZXT CAM software.
- Seamless RGB: The RGB Core single-frame fan delivers strong
airflow and vibrant, customizable lighting—plus an easy install with just four
screws and a single cable.
- Easy Installation: Pre-applied thermal paste and a single
breakout cable from the pump cap speed up installation and reduce cable
clutter.
- Wide Compatibility: Includes tool-free mounting brackets
that support the latest AMD® and Intel® CPU sockets, including AM5 and LGA
1851.
- Durable and Reliable: Reinforced rubber tubing with
nylon-braided sleeving ensures long-term durability and easy routing during
installation.

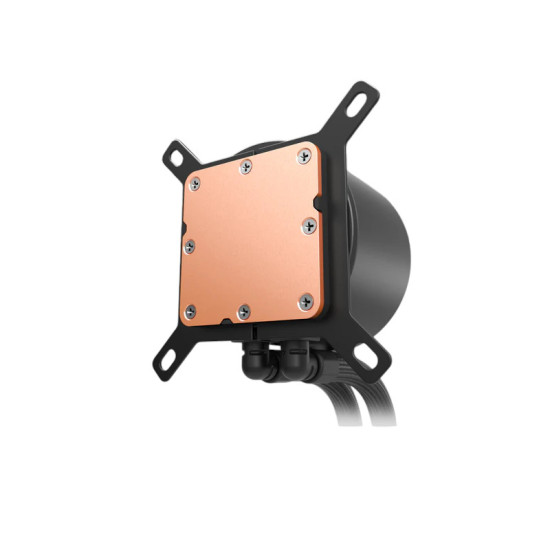

- Optimized Cold Plate: The split-flow copper cold plate
channels coolant to the CPU’s hottest areas for better heat transfer, lower
temps, and more consistent thermal performance.
- NZXT CAM Software: Use NZXT CAM to monitor temps, customize
the LCD display, and control fan and pump speeds — all through an intuitive,
easy-to-use interface.
Specification | |
DISPLAY | Panel
Type: Transmissive TFT, 262K color Diagonal:
1.54 in / 39.1 mm Resolution:
240 x 240 px Refresh
Rate: 30 Hz Brightness:
300 cd/m² Colors:
18-bit Orientation:
Software adjustable |
PUMP | Name: NZXT
Turbine Motor
Speed: 1,200 – 2,800 ± 300 RPM Power: 12
V DC, 0.3 A |
CAP | Diameter:
2.87 in / 72.95 mm Height:
2.2 in / 55.97 mm Housing
Material: Plastic |
COLD
PLATE | Dimensions:
56 mm x 56 mm Type: Split
flow Material:
Copper |
RADIATOR | Dimensions
(L x W x H): 401 x 120 x 27 mm Material:
Aluminum |
TUBING | Length:
420 mm Material:
CIIR rubber with Nylon braided sleeve |
FAN
SPECS | Model: F360
RGB Core (EV) Fan Color: Black Dimensions:
360 x 120 x 26 mm Quantity:
1 Speed: 500
- 2,400 ± 250 RPM per fan Airflow:
75.05 CFM per fan Static
Pressure: 3.07 mm-H₂O per fan Noise
Level: 31.9 dBA per fan Power
Consumption: 12V DC, 0.79 A, 9.48 W | 5V DC, 0.81 A, 4.05 W Connector:
8-pin for PWM & RGB Bearing:
Fluid Dynamic Bearing Lifespan:
60,000 hours LED
Quantity: 8 LEDs per fan Cable
Length: 600 mm Materials:
Plastic, rubber, PCB |
SOCKET
SUPPORT | Intel®:
LGA 1851/1700, 1200/115X AMD®: AM5,
AM4 |
CPU
SUPPORT | Intel®:
Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron AMD®: AMD
Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 |
Warranty | 6 Years |
Note* | Price, feature and
specifications are subject to change without notice. |
