P/N

CL-W432-PL12SW-A

Pump

Motor Speed: PWM 1500~3300 RPM

Rated Voltage: 12V

Rated Current: 0.43A

Power Input: 5.16W

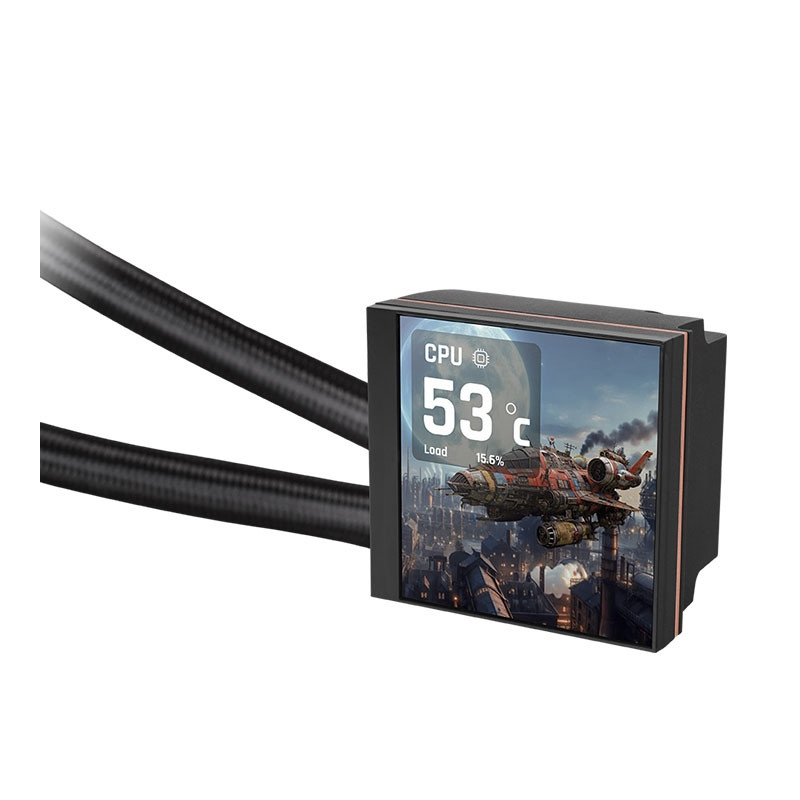

CPU Display

Rated Voltage: 5V

Rated Current: 0.26A

Power Input: 1.3W

Display Type: 3.95”TFT-LCD

Display Resolution: 480x480 (RGB) px

Display Support

Interface: Micro USB to USB (9PIN)

System Compatibility: Windows 10 / 11

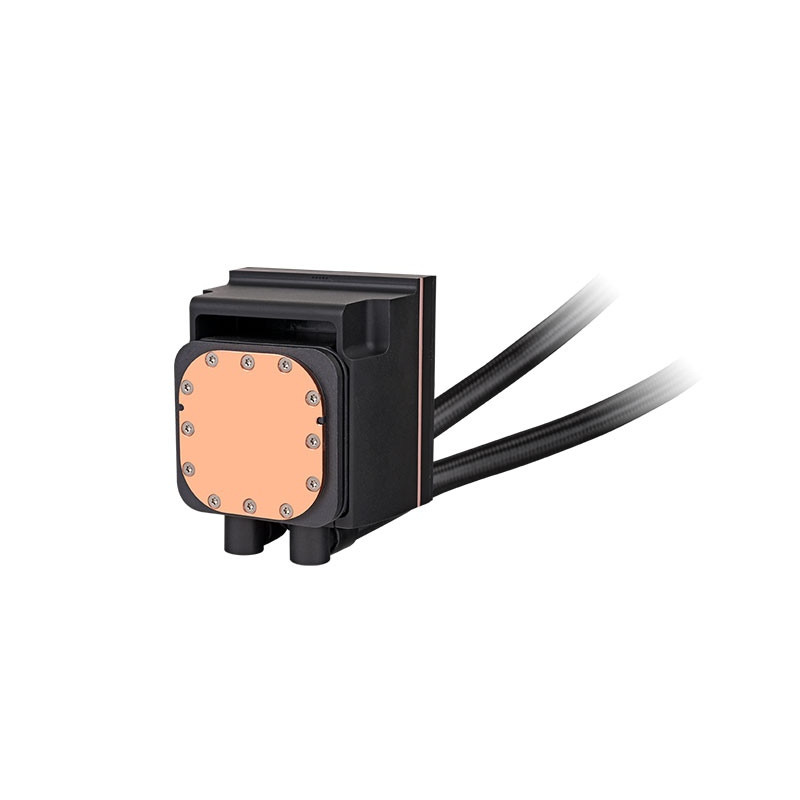

Water Block

Material: Copper

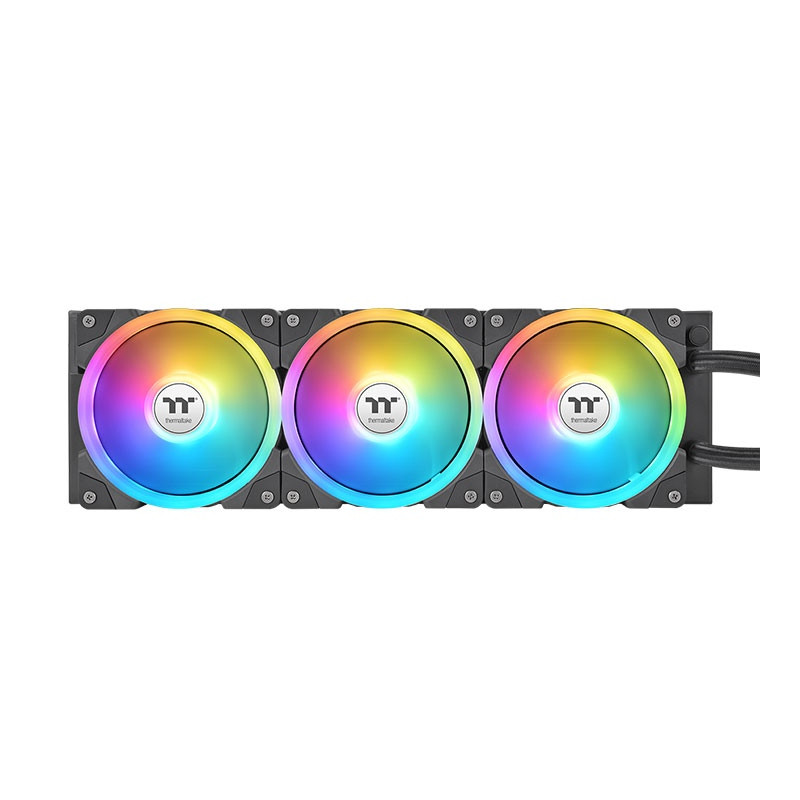

Fan

Dimension: 120 x 120 x 25 mm

Fan Speed: PWM 500~2000 R.P.M

Rated Voltage: 12V/5V

Rated Current: 0.27 A & 0.72 A (one fan)

Power Input: 3.24 W & 3.6 W (one fan)

Air Flow:

Standard Fan Blade: 57.11 CFM (one fan)

Reverse Fan Blade: 56.26 CFM (one fan)

Static Pressure:

Standard Fan Blade: 2.39 mm-H2O (one fan)

Reverse Fan Blade: 2.02 mm-H2O (one fan)

Noise Level:

Standard Fan Blade: 30.6 dB-A (one fan)

Reverse Fan Blade: 32.5 dB-A (one fan)

Tube

Length: 460mm

Material: Rubber

Radiator

Dimension: 396 x 120 x 27 mm

Material: Aluminum

Compatibility

Intel LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150

AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

TDP

355W

Warranty

2 Years

Note*

Price, feature and specifications are subject to change without notice
