P/N

CL-W462-PL12SW-A

Pump

Motor Speed: PWM 1500~2500 RPM

Rated Voltage: 12 V / 5 V

Rated Current: 0.35A / 0.3 A

Power Input: 4.2W / 1.44 W

Connector: 2510 – 4 Pin / ARGB – 3Pin

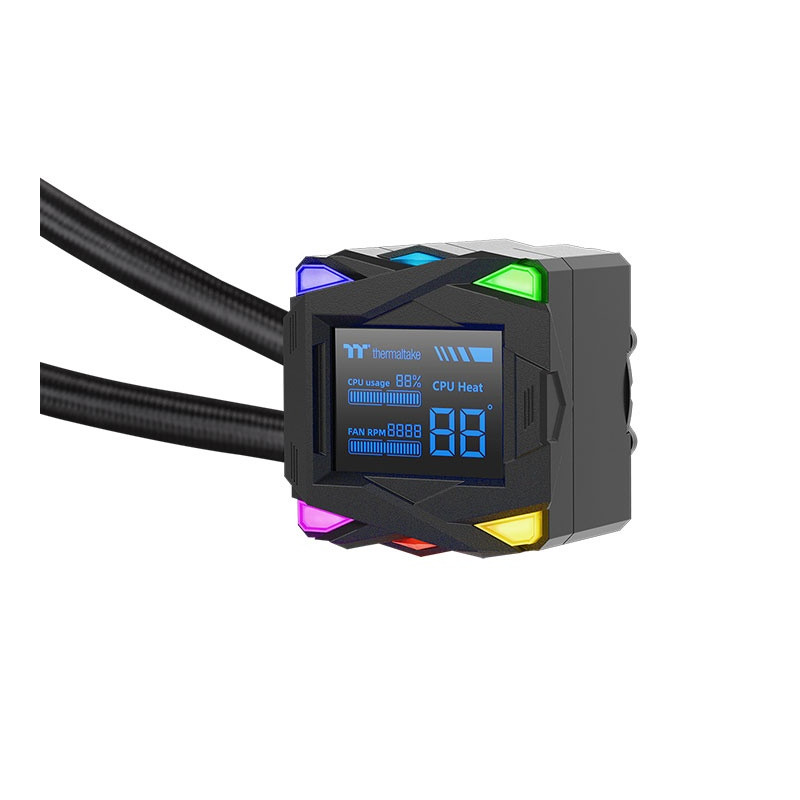

CPU Display

Rated Voltage: 5 V

Rated Current: 0.1 A

Power Input: 0.5 W

Display Type: 2.4 inch ” Segment LCD

Display Resolution: 240 x 320 (RGB)

Display Support

Interface: USB 2.0 (9PIN)

System Compatibility: Windows 10 / 11

Water Block

Material: Copper

Fan

Dimension: 120 x 120 x 25 mm

Fan Speed: PWM 600~2500 R.P.M

Rated Voltage: 12 V & 5 V

Rated Current: 0.38 A & 0.28 A (one fan)

Power Input: 4.56 W & 1.4 W (one fan)

Air Flow: 79.3 CFM (one fan)

Static Pressure: 3.45 mm-H2O (one fan)

Noise Level: 38.35 dB-A (one fan)

Connector: 2510 – 4 Pin

Tube

Length: 380mm

Material: Rubber

Radiator

Dimension: 397 x 120 x 27 mm

Material: Aluminum

Compatibility

CPU Socket:

Intel LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150

AMD AM5/AM4/AM3+/AM3/

TDP

360W

Warranty

2 Years

Note*

Price, feature and specifications are subject to change without notice
