Model Number

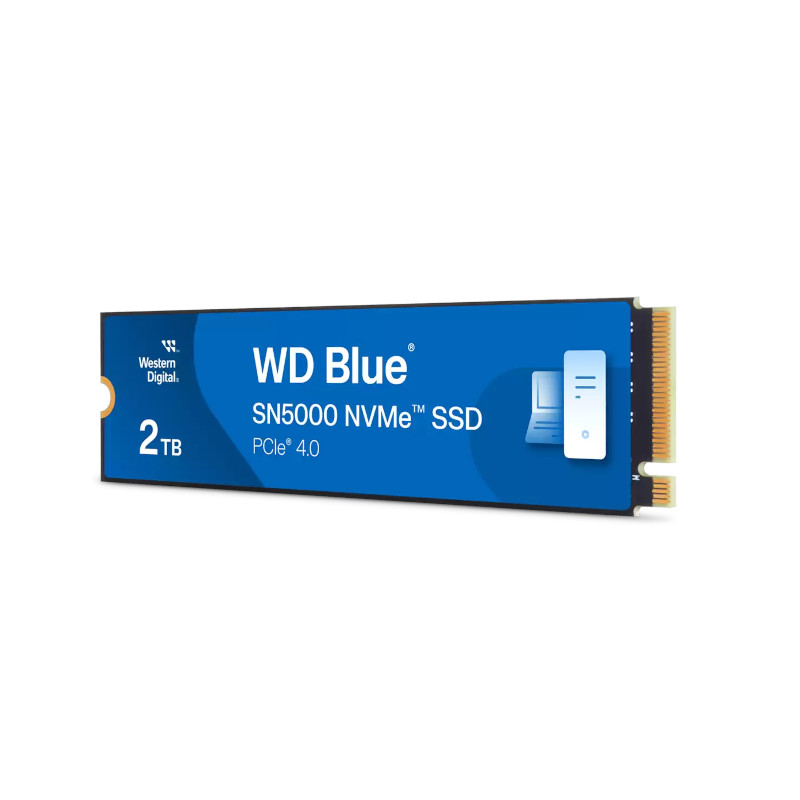

WDS200T4B0E

Interface

PCIe Gen4 16GT/s, up to 4 Lanes

Form Factor

M.2 2280

Formatted Capacity

2 TB

NAND Type

Western Digital 3D NAND TLC

Performance

Sequential Read (Queues = 32, Threads = 1): up to 5150 MB/s

Sequential Write (Queues = 32, Threads = 1): up to 4850 MB/s

Random Read 4KB IOPS (Queues = 32, Threads = 16): up to 650K

Random Write 4KB IOPS (Queues = 32, Threads = 16): up to 770K

Endurance (TBW): 900

Power

Average Active Power: 75mW

Sleep (PS5) (low power): 5mW

Max Average power: 6.3W

Reliability

MTTF: 1.75M hours

Environmental

Operating Temperature: 32ºF to 185ºF (0ºC to 85ºC)

Non-operating Temperature: -40ºF to 185ºF (-40ºC to 85ºC)

Non-Operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes

Operating Vibration: 5 gRMS, 10-2000 Hz, 3 axes

Shock: 1,500G @0.5 ms half sine

Certifications: BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI

RoHS Compliance: Yes

Physical Dimensions M.2 2280

Length: 80 ± 0.15mm

Width: 22 ± 0.15mm

Height: 2.38mm

Weight: 5.7g + 0.5g

Warranty

5 Years Limited Warranty

Note*

Price, feature and specifications are subject to change without notice.
