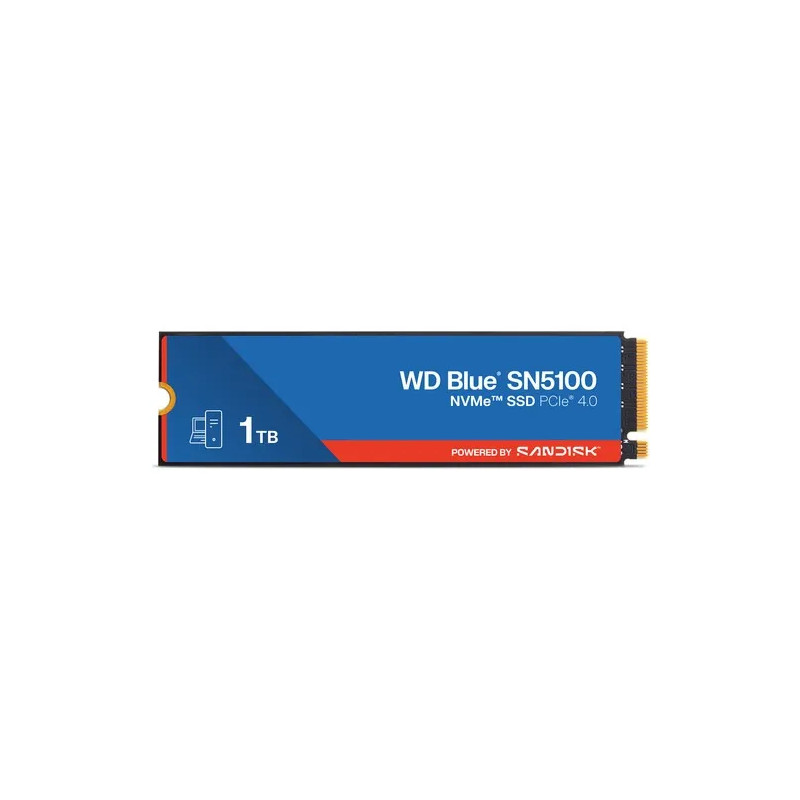

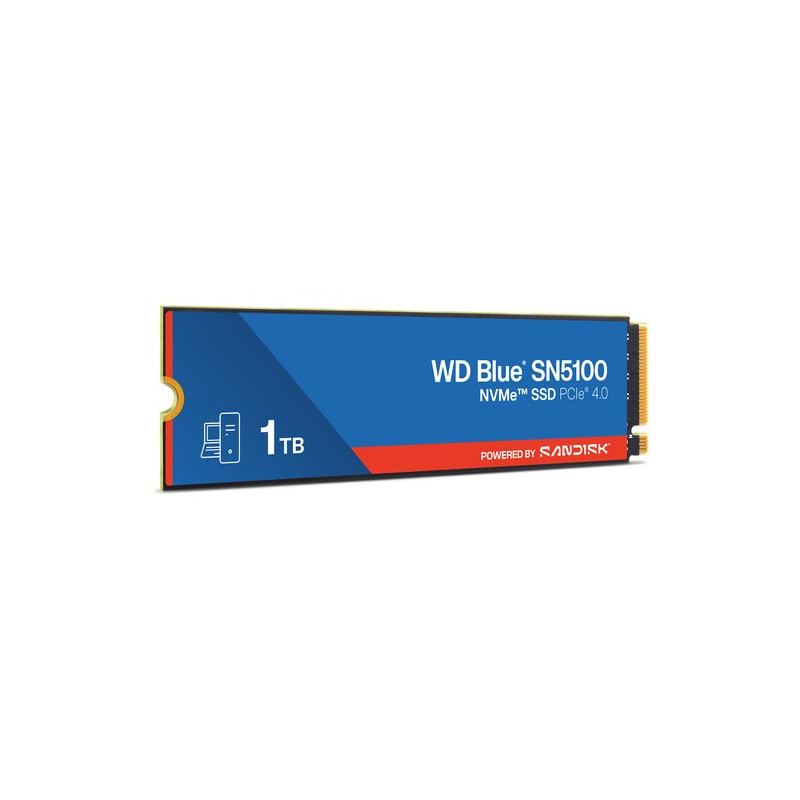

Capacity

1TB

Model

WDS100T5B0E

Form Factor

M.2 2280

Interface

PCIe® Gen 4.0 x4, NVMe

NAND

SANDISK QLC 3D CBA NAND

Dimension

LENGTH: 80mm

WIDTH: 22mm

HEIGHT: 2.38mm

WEIGHT: 5.7g

Reliability

Endurance: 600 TBW

MTTF: 1.75M hours

Environmental

Operating Temperature: 32°F to 185°F (0°C to 85°C)

Non-operating Temperature: -40°F to 185°F (-40°C to 85°C)

Operating Vibration: 5 gRMS, 10-2000 Hz, 3 axes

Non-operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes

Shock: 1,500G @0.5 ms half-sine

Power

Average Power – Read: 3.9W

Average Power – Write: 3.9W

Idle (Sleep): 4mW

Performance:

Sequential Read 1MB (MB/s) (up to): 7100

Sequential Write 1MB (MB/s) (up to): 6700

Random Read 4KB (IOPS) (up to): 1M

Random Write 4KB (IOPS) (up to): 1.3M

Security

TCG Pyrite 2.01, ATA Security passthrough over NVMe

Regulatory

Certifications: BSMI, CAN ICES-3(B)/NMB-3(B), CB-Scheme, CE, FCC, KCC, Morocco, RCM, TÜV, UL, VCCI, UKCA

RoHS Compliance: Yes

Warranty

5 Years.

Note*

Price, feature and specifications are subject to change without notice.
