- Model: ZT-B50620E-10M

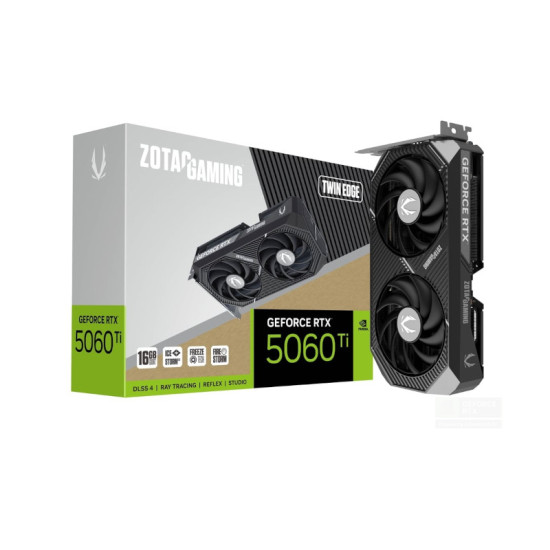

ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge
ZT-B50620E-10M
The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge is a
compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture,
DLSS4 and 16GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is
ready to take on the latest title releases with smooth framerates and
performance.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready Graphics Card

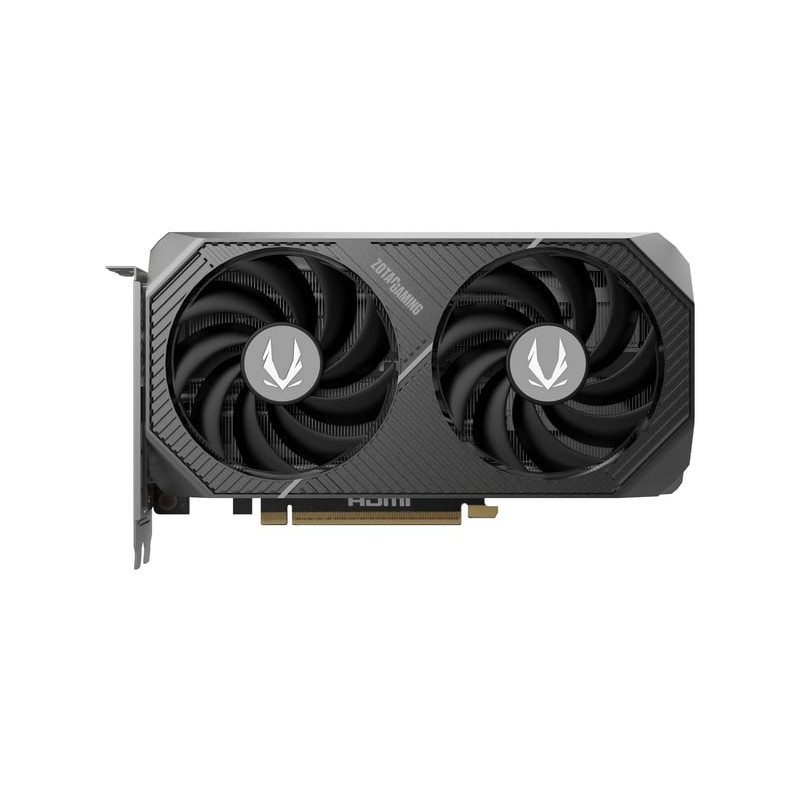

- Compact dual-fan form factor
- IceStorm 2.0 Cooling
- BladeLink Fans
- FREEZE Fan Stop

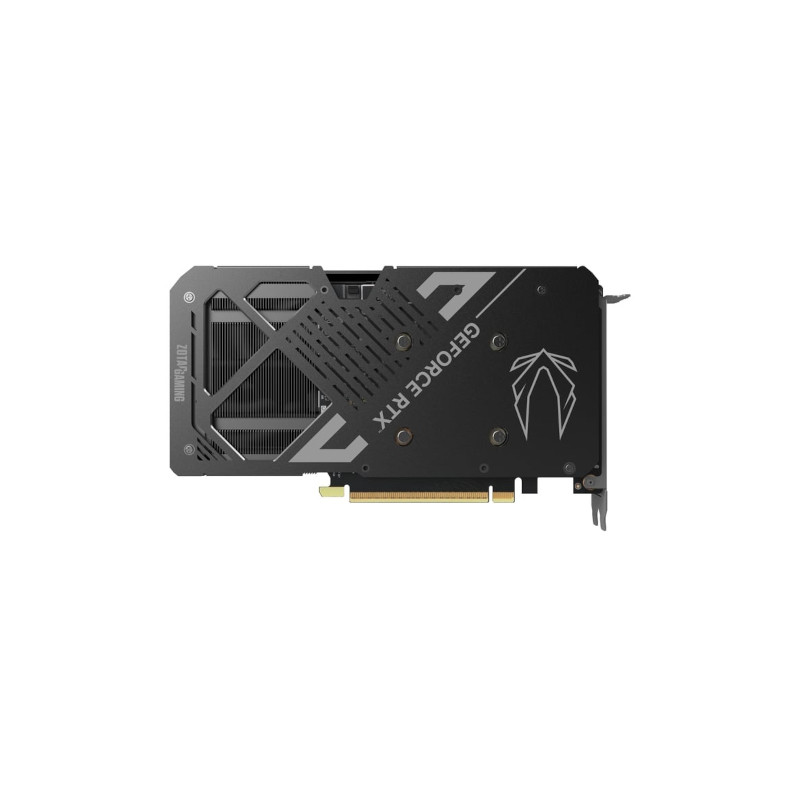

- Metal Backplate
- All-new FireStorm Utility (DOWNLOAD)
Specification | |
GPU | NVIDIA
GeForce RTX 5060 Ti GPU |
CUDA
cores | 4608 |
Video
Memory | 16GB
GDDR7 |
Memory
Bus | 128-bit |
Engine
Clock | 2572
MHz |
Memory
Clock | 28 Gbps |
PCI
Express | PCI
Express 5.0 x8 |

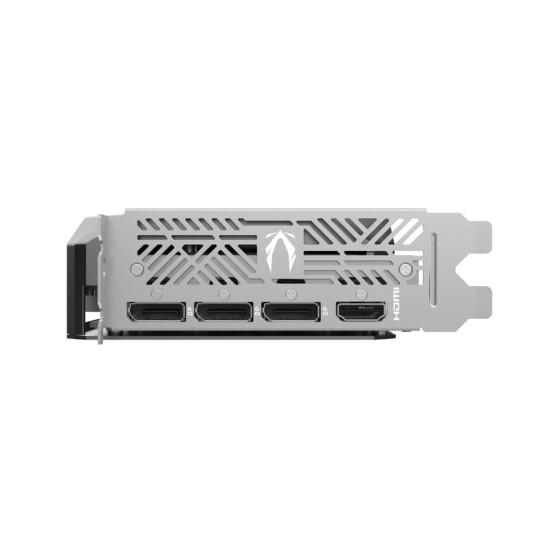

Display
Outputs | 3 x
DisplayPort 2.1b with UHBR20 (up to
4K 480Hz or 8K 165Hz with DSC) 1 x
HDMI® Connector (Supports
4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the
HDMI 2.1b Specification) |
HDCP
Support | 2.3 |
Multi
Display Capability | Quad
Display |
Recommended
Power Supply | 600W |
Power
Consumption | 180W |
Power
Input | 1 x
8-pin power input |
DirectX | Microsoft
DirectX® 12 Ultimate |
OpenGL | 4.6 |
Cooling | IceStorm
2.0 |
Slot
Size | 2 |
SLI | No |
Supported
OS | Windows
11 / Windows 10 64-bit (v1809 November 2018 or later) |
Card
Length | 220.5mm
x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6" |
Accessories | User
Manual |
Warranty | Standard
Warranty: 3 Years Extended
Warranty: 2 Years Total
Warranty: 5 Years Product
registration is must to get Extended Warranty. Register
product at https://www.zotac.com/in/support#registration |
Note* | Price, Feature &
Specifications Are Subject To Change Without Notice. |
