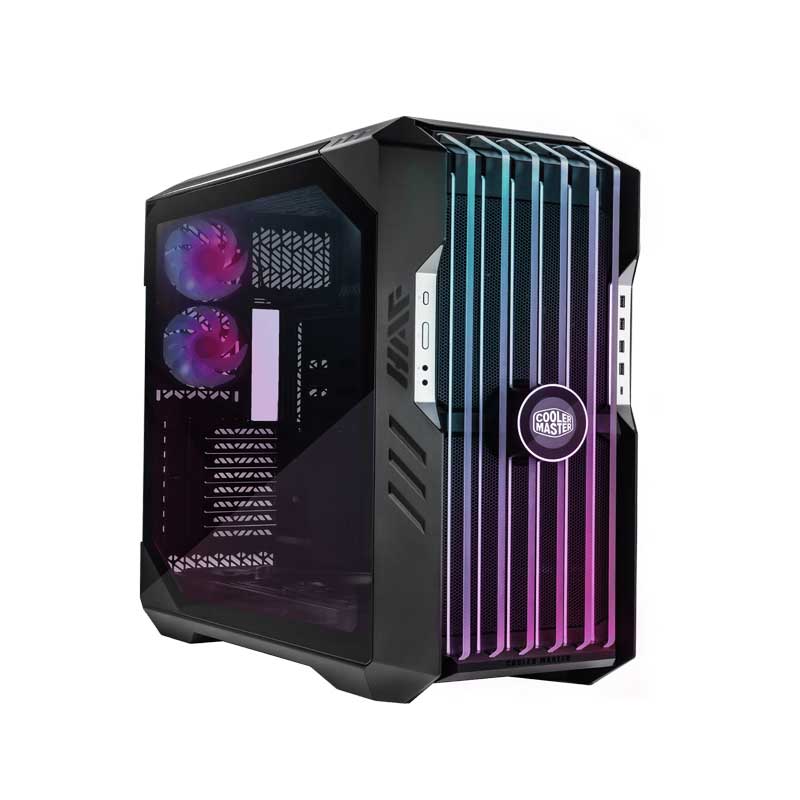

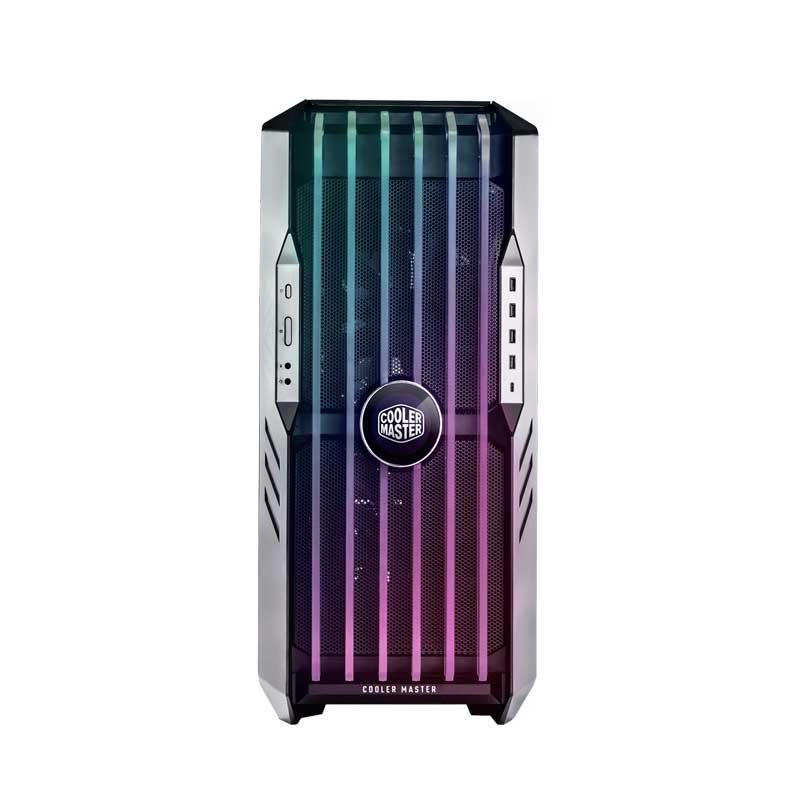

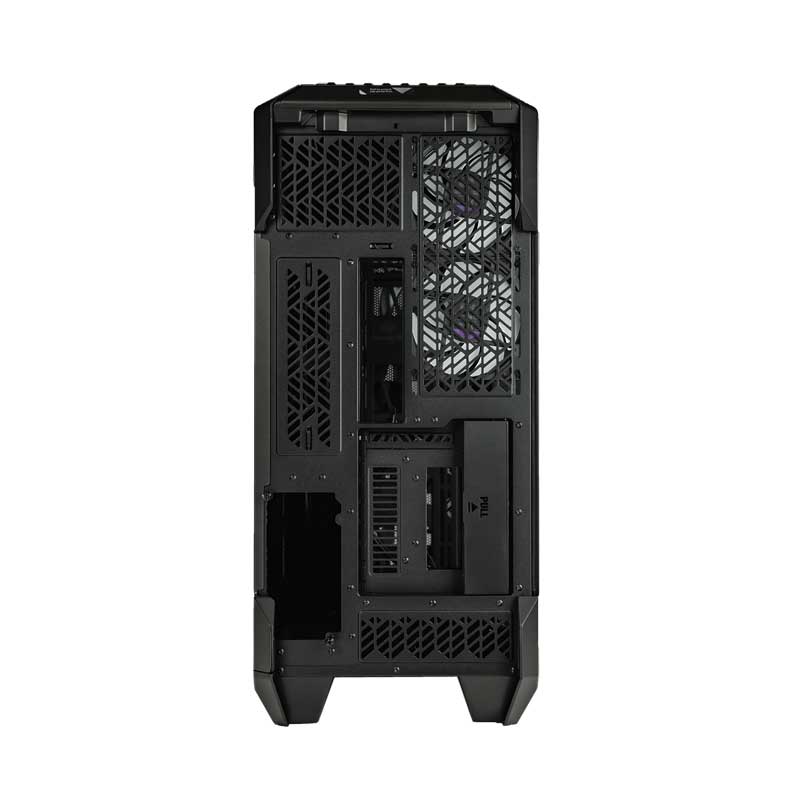

- Model: H700E-IGNN-S00

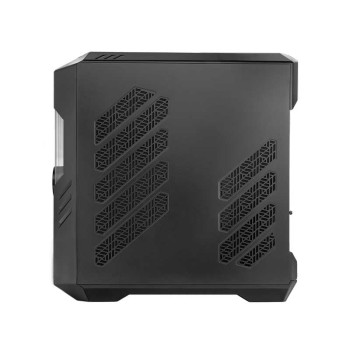

HAF 700 EVO
CREATED ONLY FOR THE BEST
- Unparalleled Hardware & Cooling
Capabilities
- Mammoth Water Cooling Support
- Exclusive Tool-Less Technology
- IRIS: Personal LCD Assistant
- ARGB Gen2 ready with MasterPlus+
integration
Specification |
|
Product Name |
HAF 700 EVO |
Product Code |
H700E-IGNN-S00 |
Exterior Color |
Titanium Grey |

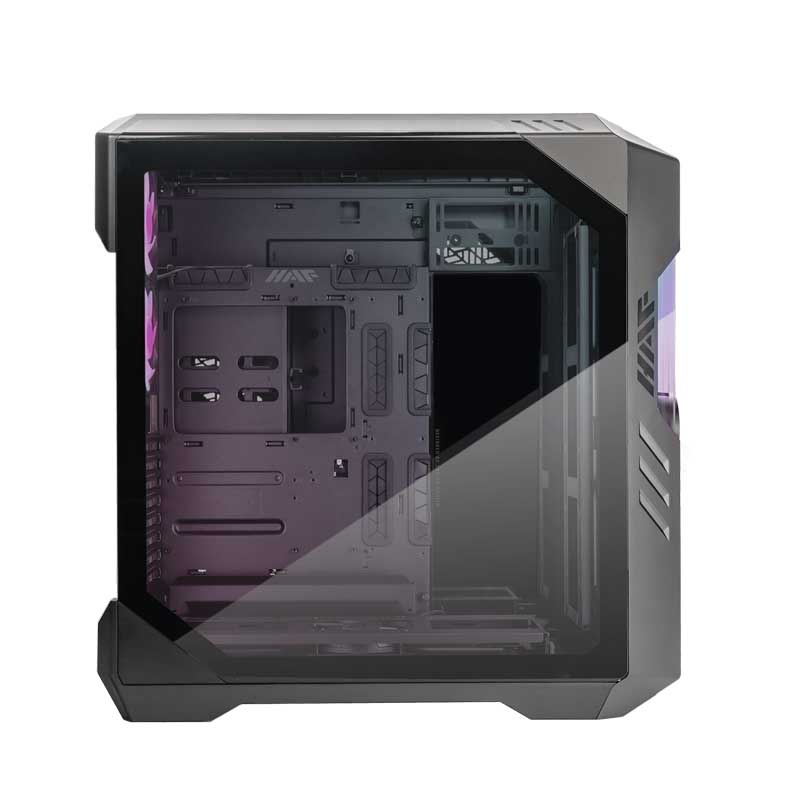

Materials |
Exterior: Mesh, Steel, Plastic Left Side Panel: Tempered Glass, Steel |
Dimensions(L x W x H) |
556 x 279 x 540 mm (Body Size), 666 x 291
x 626 mm (incl. Protrusions) |
Motherboard Support |
Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB,
SSI EEB |
Expansion Slots |
8 |
Drive Bays |
5.25" Drive Bays = N/A 2.5" / 3.5" Drive Bays (combo)
= 12 2.5" Drive Bays = 12 |
I/O Panel |
I/O Panel - USB Ports = 1x USB 3.2 Gen 2
Type C, 4x USB 3.2 Gen 1 (3.0) I/O Panel - Audio In / Out = 1x 3.5mm 4
Poles Audio Jack, 1x 3.5mm Mic Jack I/O Panel - Other = 1x LED Controller A1
(ARGB Gen 2), 1x ARGB/PWM Hub |
Pre-installed Fan(s) |
Pre-installed Fans - Front = 2x
SickleFlow PWM Performance Ed. 200mm Pre-installed Fans - Rear = 2x SickleFlow
PWM ARGB 120mm Pre-installed Fans - Bottom = 1x
SickleFlow PWM ARGB 120mm |

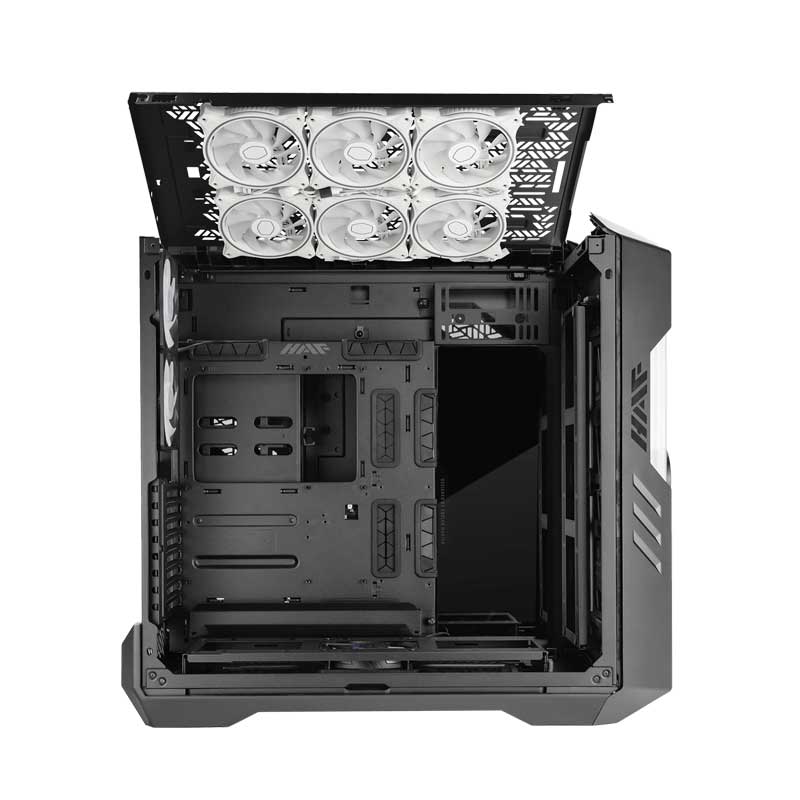

Fan Support |
Fan Support - Top = 2x 200mm, 3x 140mm,
6x 120mm (Remove 480mm bracket) Fan Support - Front = 2x 200mm, 3x
120/140mm Fan Support - Rear = 2x 120mm Fan Support - Bottom = 3x 120/140mm Fan Support - Side = 4x 120mm / 3 x 140mm |
Radiator Support |
Radiator Support - Top = Up to 2x 360mm /
1x 420mm Radiator Support - Front = Up to
420/360mm Radiator Support - Rear = Up to 240mm Radiator Support - Bottom = Up to 420/360mm Radiator Support - Side = Up to 480/420mm |
Clearances |
Clearance - CPU Cooler = 166mm / 6.53
inch Clearance - PSU = 200mm / 7.87 inch Clearance - GFX = 490mm / 19.29 inch |

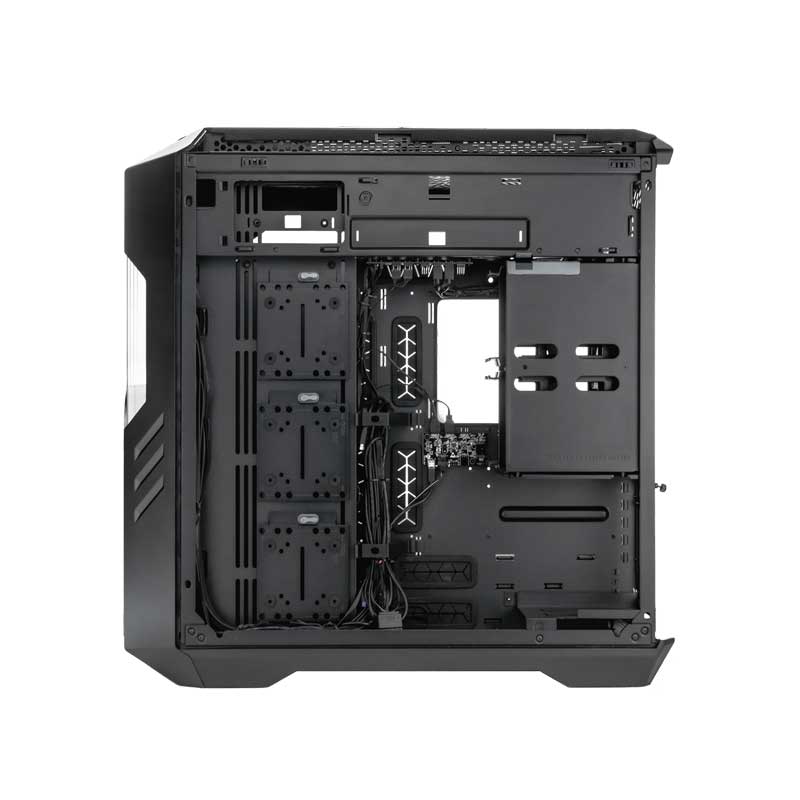

Cable Routing |
Behind MB Tray: 90-101mm |
Additional Included Accessories |
Universal Graphics Card Holder Kit V2 |
Dust Filters |
Front, Bottom, Side |
Power Supply Support |
Bottom Mount, ATX |
Series |
HAF Series |
Size |
Full Tower |
Warranty |
2 years |
Note* |
Price, feature and
specifications are subject to change without notice. * For regular 30mm thick radiators, for
thicker please reference compatibility sheet |
