- Model: AGAMMIXS70B-512G-CS

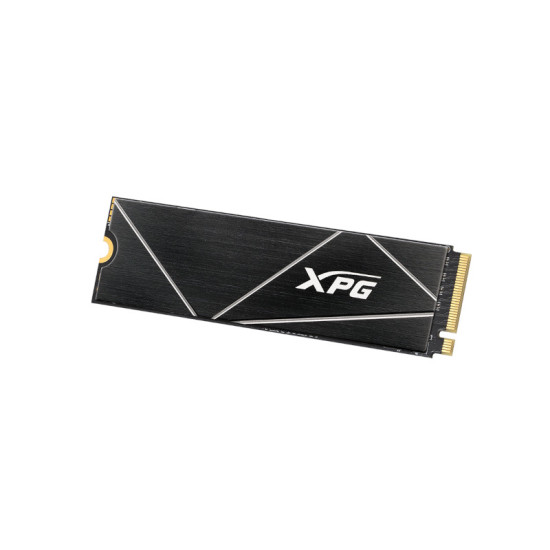

XPG GAMMIX S70 BLADE PCIe Gen4x4 M.2 2280 Solid State Drive – 512GB
AGAMMIXS70B-512G-CS
Features
- R/W speed up to 7,200/2,600MB/s for
PC/laptop
- Ultra-fast PCIe Gen4x4 interface
- Compliant with NVMe 1.4
- Work with PS5
- Read speed up to 6,100MB/s for PS5
- High-temperature resistant aluminum heat
sink which is able to reduce temperatures by up to 20%
- Capacity up to 2TB
- SLC Caching and DRAM cache buffer
- Advanced LDPC ECC Technology
- E2E Data Protection and RAID Engine
- AES 256-bit encryption support
- Compact M.2 2280 form factor – ideal for
gaming and high-end desktops
|
Specification |
|
|
Capacity |
512GB |
|
NAND Flash |
3D NAND |
|
Interface |
PCIe Gen4x4 |
|
Form Factor |
M.2 2280 |
|
Controller |
Innogrit IG5236 |
|
MTBF |
2,000,000 hours |
|
Dimensions (LxWxH) |
80 x 22 x 4.3mm (with heatsink) 80 x 22 x 3.3mm (without heatsink) |
|
Weight |
10g / 0.35oz (with heat sink) 7g / 0.24oz (without heat sink) |
|
Sequential Read (Max) |
Up to 7200MB/s |
|
Sequential Write (Max) |
Up to 2600MB/s |
|
4KB Random Read IOPS(Max) |
Up to 425K |
|
4KB Random Write IOPS(Max) |
Up to 510K |
|
Sequential Read (Max PS5) |
up to 6,100MB/s (PS5) |
|
Operating temperature |
0°C - 70°C |
|
Storage temperature |
-40°C - 85°C |
|
Shock resistance |
1500G/0.5ms |
|
Certifications |
CE, FCC, BSMI, KC, Morocco, EAC,
RCM, UKCA, RoHS |
|
Terabytes Written (TBW)(Max Capacity) |
370TB |
|
Warranty |
5-year limited warranty |
|
Note* |
Price, feature and
specifications are subject to change without notice. |
