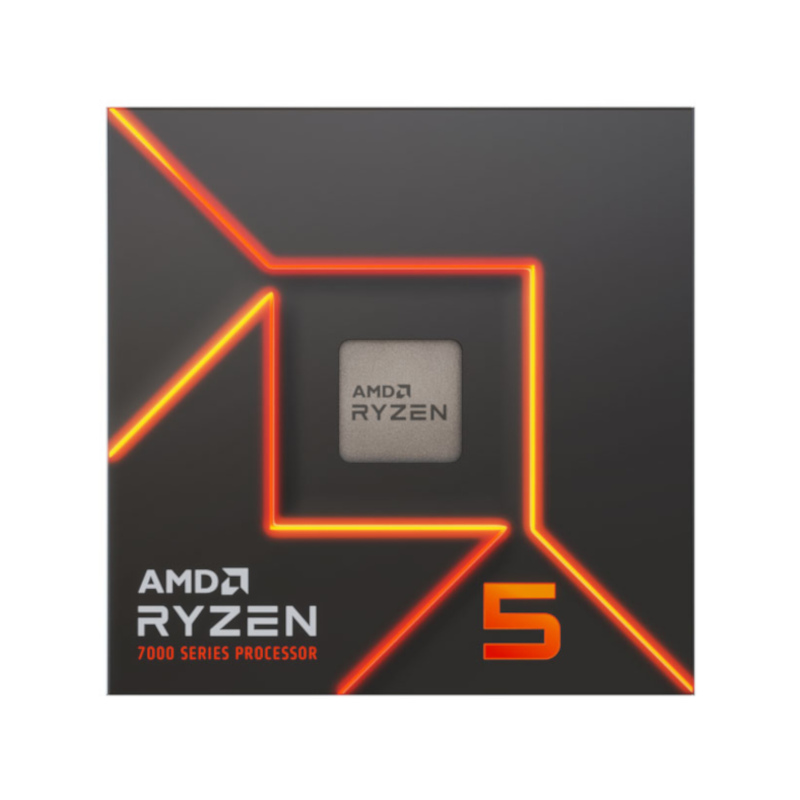

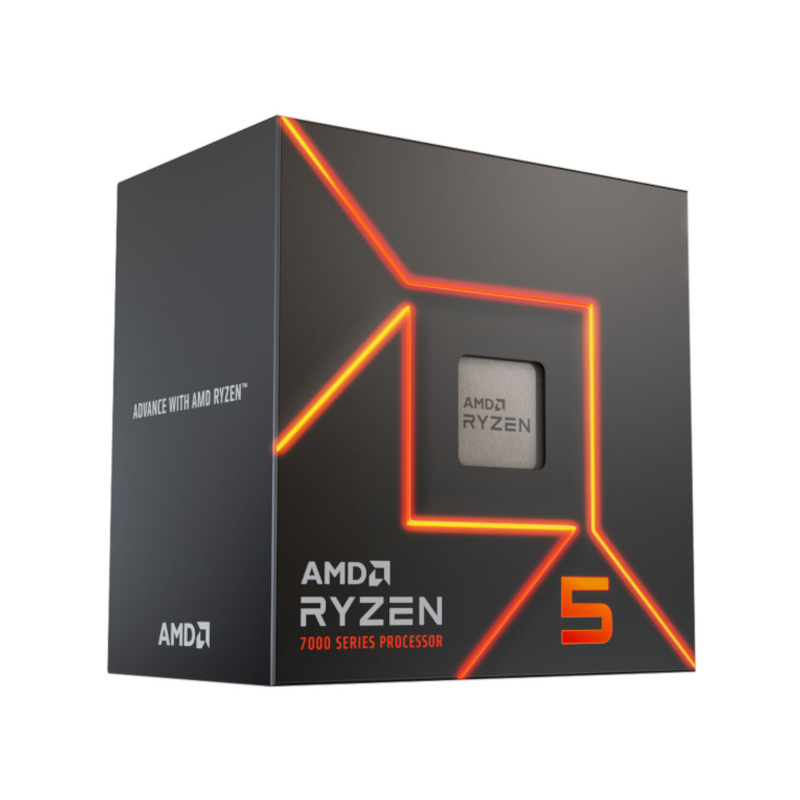

AMD Ryzen 5 7600 Gaming Processors
100-100001015BOX
|
Specification |
|
|
General
Specifications |
Platform: Desktop Market Segment:
Enthusiast Desktop Product Family:
AMD Ryzen™ Processors Product Line: AMD
Ryzen™ 5 Desktop Processors AMD PRO
Technologies: No Consumer Use: Yes Regional
Availability: Global Former Codename:
"Raphael AM5" Architecture:
"Zen 4" # of CPU Cores: 6 Multithreading
(SMT): Yes # of Threads: 12 Max. Boost Clock:
Up to 5.1GHz Base Clock: 3.8GHz L1 Cache: 384KB L2 Cache: 6MB L3 Cache: 32MB Default TDP: 65W Processor
Technology for CPU Cores: TSMC 5nm FinFET Processor
Technology for I/O Die: TSMC 6nm FinFET CPU Compute Die
(CCD) Size: 71mm² I/O Die (IOD)
Size: 122mm² Package Die
Count: 2 Unlocked for
Overclocking : Yes AMD EXPO™ Memory
Overclocking Technology: Yes Precision Boost
Overdrive: Yes Curve Optimizer
Voltage Offsets: Yes AMD Ryzen™ Master
Support: Yes CPU Socket: AM5 Supporting Chipsets:
X670E. X670, B650E, B650 CPU Boost
Technology: Precision Boost 2 Instruction Set:
x86-64 Supported
Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2,
SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution
(PIB): AMD Wraith Stealth Max. Operating
Temperature (Tjmax): 95°C *OS Support:
Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit,
Ubuntu x86 64-Bit, *Operating System (OS) support will vary by manufacturer. |
|
Connectivity |
USB Type-C®
Support: Yes Native USB 3.2
Gen 2 (10Gbps) Ports: 4 Native USB 3.2
Gen 1 (5Gbps) Ports: 0 Native USB 2.0
(480Mbps) Ports: 1 Native SATA
Ports: 0 Native PCIe®
Lanes (Total/Usable): 28/24 Additional Usable
PCIe Lanes from Motherboard:
AMD X670E - 12x Gen4
AMD X670 - 12x Gen4
AMD B650E - 8x Gen4
AMD B650 - 8x Gen4 NVMe Support:
Boot, RAID0, RAID1, RAID10 System Memory
Type: DDR5 Memory Channels:
2 Max Memory Speed 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support: Yes
(Requires mobo support) |
|
Graphics
Capabilities |
Integrated
Graphics: Yes Graphics Model:
AMD Radeon™ Graphics Graphics Core
Count: 2 Graphics
Frequency: 2200 MHz GPU Base: 400 MHz USB Type-C®
DisplayPort™ Alternate Mode: Yes |
|
Key Features |
AMD EXPO™
Technology AMD Ryzen™
Technologies |
|
Warranty |
3 Years |
|
Note* |
Price,
feature and specifications are subject to change without notice. |
