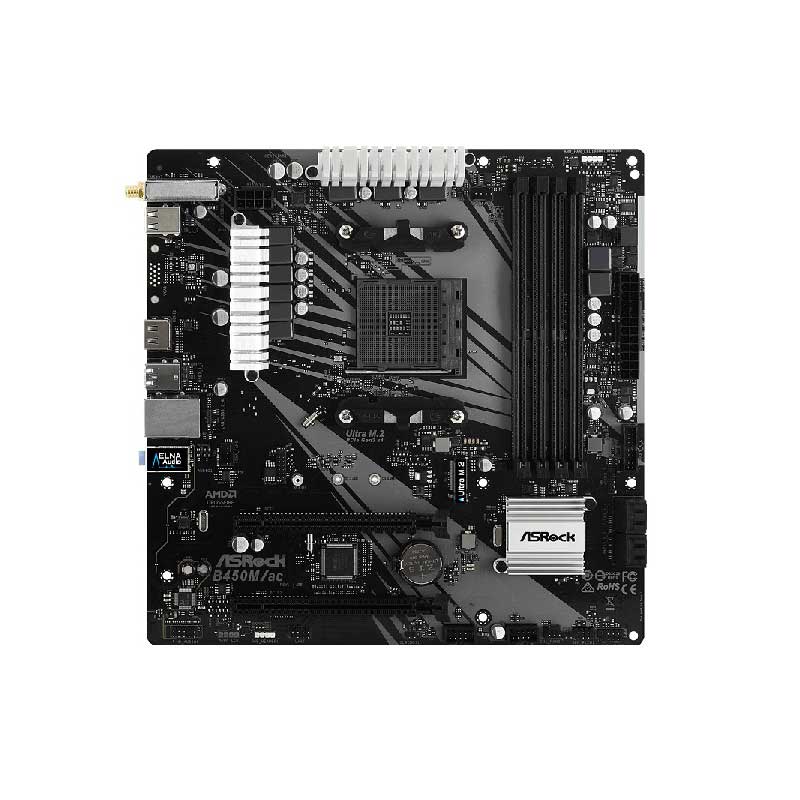

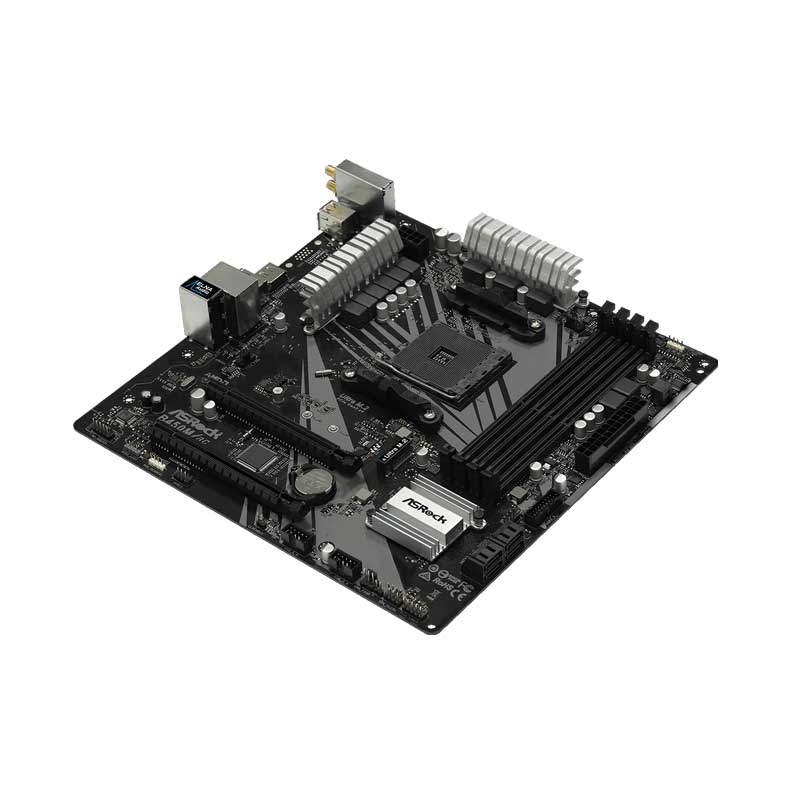

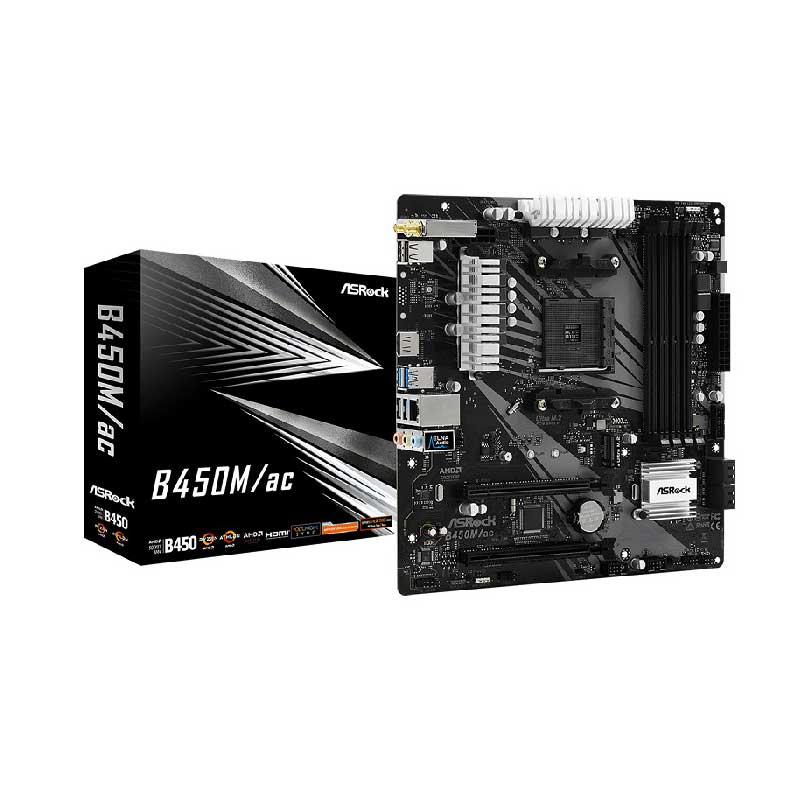

ASRock B450M/ac Motherboard

ASRock B450M/ac Motherboard
ASRock B450M/ac Motherboard
ASRock B450M/ac Motherboard
ASRock B450M/ac Motherboard
100% Genuine
ASRock B450M/ac Motherboard
ASRock B450M/ac Motherboard
ASRock B450M/ac Motherboard
ASRock B450M/ac Motherboard
ASRock B450M/ac Motherboard
  • Model: B450M/ac
₹8,300
EMI options available on cart value above ₹3,000.
No payment gateway charge/ No convenience fee.

B450M/ac



  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)*
  • 6 x USB 3.1 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN
  • ASRock Polychrome SYNC

*Actual support may vary by CPU.



Specification

CPU

- AMD AM4 Socket
- Digi Power design
- 9 Power Phase design

Chipset

- AMD Promontory B450

Memory

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15μ Gold Contact in DIMM Slots

*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support.

Graphic

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI 1.4 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

*Actual support may vary by CPU

**The Max shared memory 16GB requires 32GB system memory installed.

Slots

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

*Supports NVMe SSD as boot disks

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)*

*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Wireless LAN

- Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps

Connector

- 1 x Chassis Intrusion Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x AMD Fan LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x Chassis Fan Connector (3-pin)*****
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip

**Supports in total up to 5V/3A, 15W LED Strip

***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

*****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.

Operating System

- Microsoft® Windows® 10 64-bit

Unique Features

ASRock Super Alloy
- Premium 42A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
Intel® 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Software and UEFI

Software
- ASRock A-Tuning
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Hardware Monitor

- Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket

BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment

Support Disc

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Form Factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2oz Copper PCB
- Solid Capacitor design

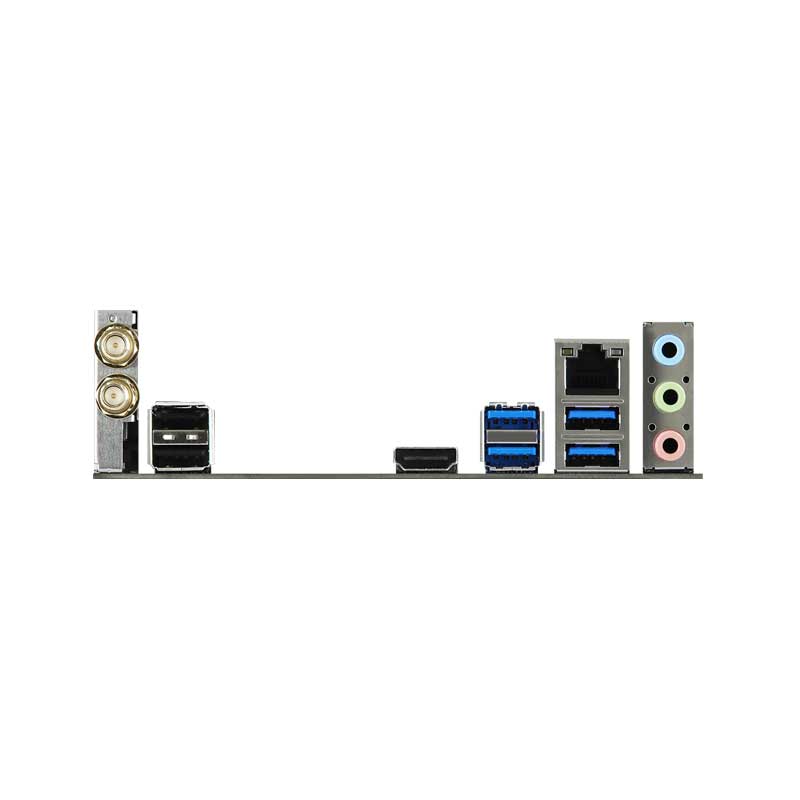

Rear Panel I/O

- 2 x Antenna Ports
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
