- Model: MB600-KGNN-S00

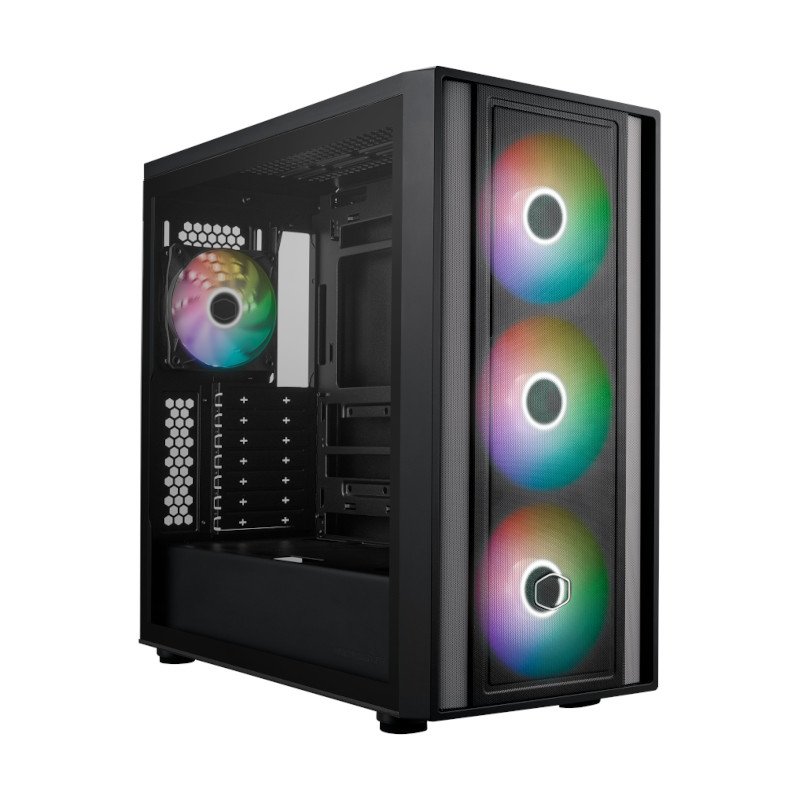

MasterBox 600
MB600-KGNN-S00
- Back-connected motherboard support
Supporting
back-connected motherboard to frees up space in the front of the case,
providing 33-35mm space behind the motherboard tray for easier cable
management.
- Versatile Cooling Options
Support for up to
seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted
420mm radiator allows for hyper-effective CPU cooling.

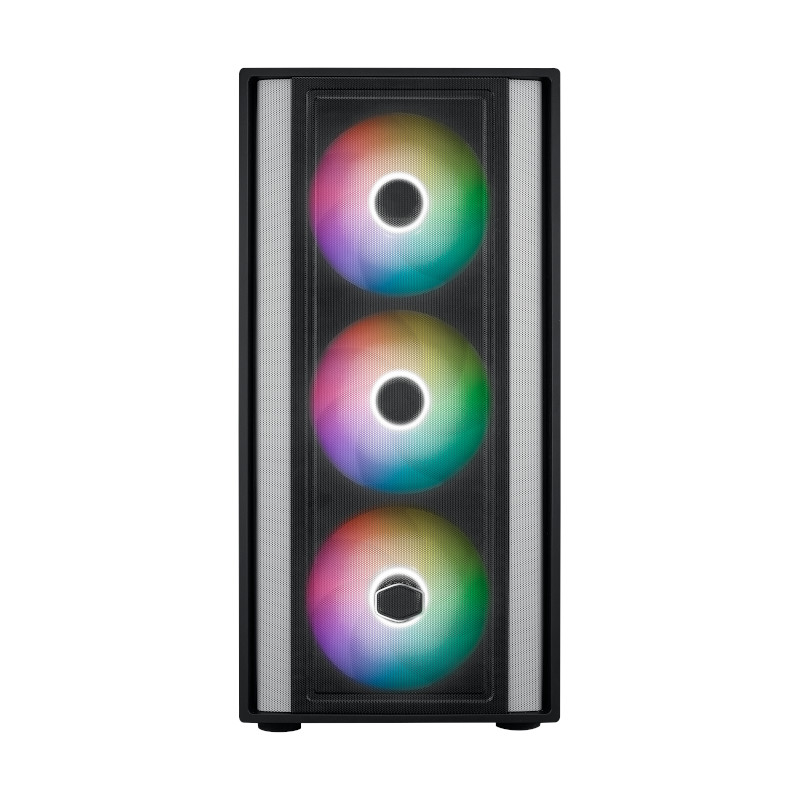

- FineMesh
Performance Front Panel
Large mesh intakes
offer unrestricted airflow and stellar thermals for demanding systems.
- Removable HDD cage
The HDD cage is
completely removable for improved access during assembly and system upgrades.
- Optimized airflow
3x 140mm Sickeflow
fans, and a CF120 fan provide exceptional cooling power and eye-catching
aesthetics.
- Room For Upgrades
With support for a
410mm GPU, a 170mm CPU cooler, and multiple fans and radiators, the MasterBox
600 will ensure you stay ahead of the game.
|
Specification |
|
|
Model Number |
MB600-KGNN-S00 |
|
Exterior Color |
Black |
|
Materials |
Exterior: Steel, Plastic Side Panel: Tempered Glass |
|
Dimensions (L X W X H) |
Incl. Protrusions: 474mm x 230mm x 481mm Excl. Protrusions: 465mm x 230mm x 465mm |
|
Volume |
49.73 L |
|
Motherboard Support |
ITX / Micro ATX / ATX (Supporting Back-connector
Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards,
may impact cable management) |
|
Expansion Slots |
7 |
|
Drive Bays |
5.25” ODD: N/A 3.5” HDD: 2 2.5” SSD: 2 (Max.6) |
|
I/O Panel |
2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2x2 Type C,
1x 3.5mm Combo |
|
Pre-Installed Fans |
Front: 3x 140mm SickleFlow140 ARGB PWM (650~1800
rpm) Rear: 1x 120mm CF120 ARGB (650~1200 rpm) |
|
Fan Support |
Front: 3x 120mm / 3x 140mm Top: 3x 120mm / 2x 140mm Rear: 1x 120mm |
|
Radiator Support |
Front: 120/140/240/280/360/420mm (Limit:
457*140*27mm) Top: 120/140/240/280/360mm Rear: 120mm |
|
Clearances |
CPU Cooler: 170 mm Power Supply: 170mm, 210mm (w/o HDD Cage) Graphics Card: 360mm, 410mm (w/o front radiator) |
|
Cable Routing |
Behind MB Tray: 33~35 mm |
|
Dust Filters |
Top/Bottom |
|
Power Supply Support |
ATX |
|
Warranty |
2 Years |
|
Note* |
Price,
features and specifications are subject to change without notice. |
