- Model: MPE-7501-AFAAG-IN

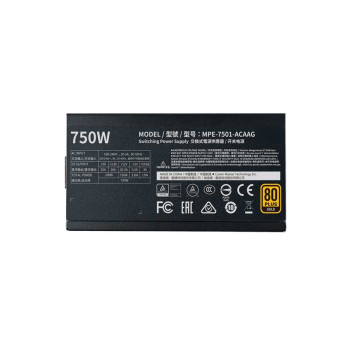

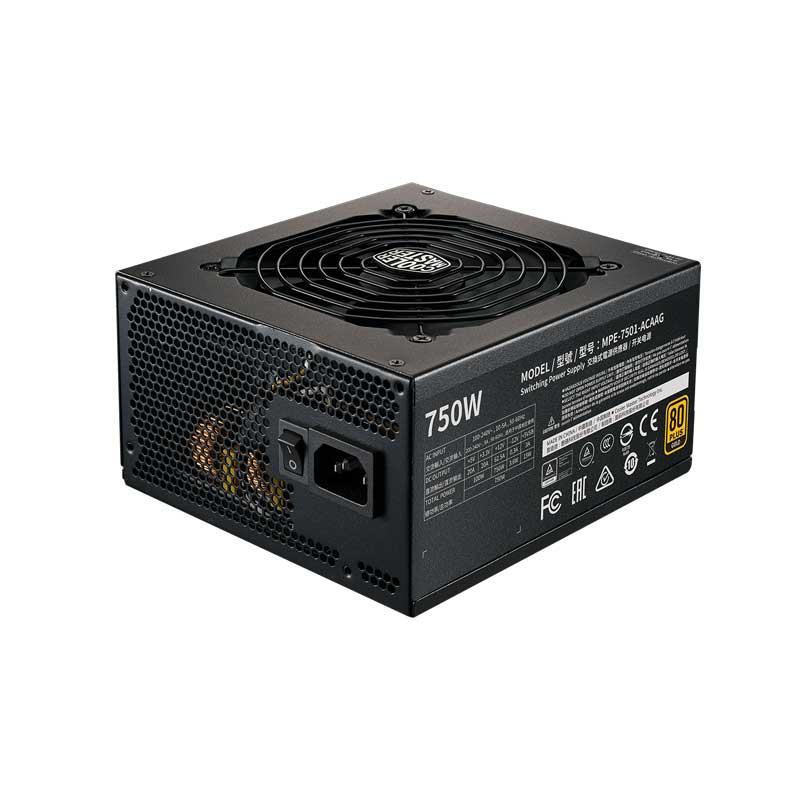

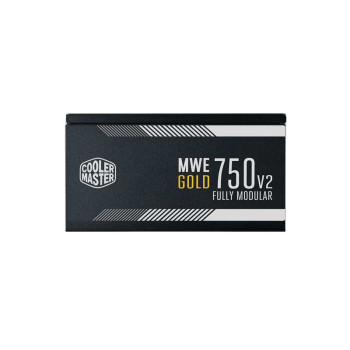

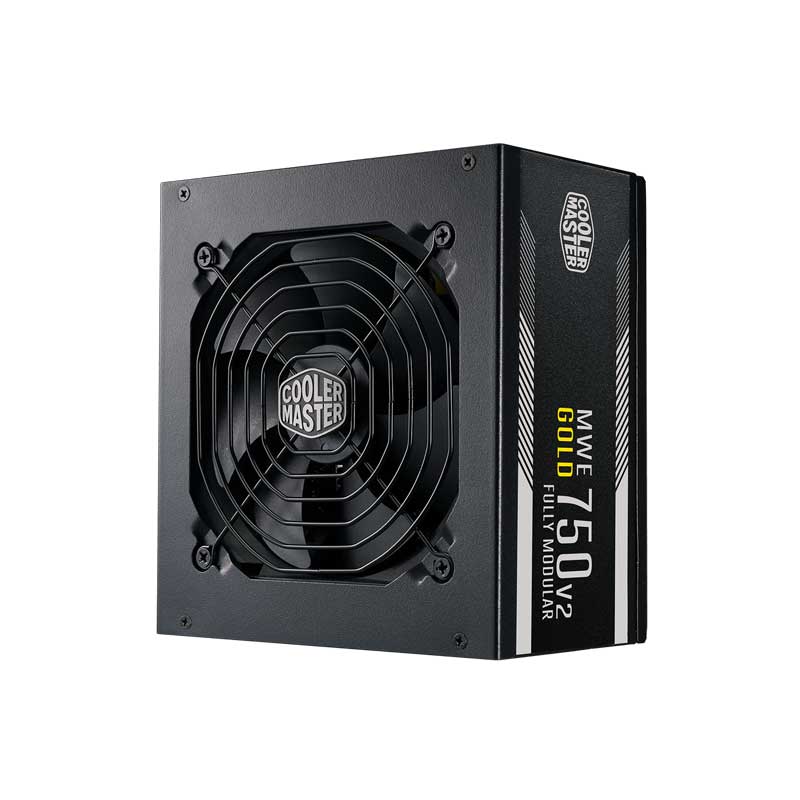

MWE GOLD 750 - V2 FULL MODULAR
Full Modular 80 Plus Gold Atx Power Supply Unit
- 80 Plus Gold Efficiency
- 2 EPS Connectors
- 120mm HDB Fan
- High Temperature Resilience
- Full Modular Cabling
- 5 Year Warranty
Power Up
The MWE Gold - V2 (Full Modular) is the next step in the
evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line.
The original MWE Gold series was created in order to offer a simpler and more
affordable Gold rated option in order to help users make the transition from 80
PLUS White and Bronze power supply units more accessible. While there is still
demand for White and Bronze units, the global standard has been shifting to
Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as
the legal minimum to purchase. This is why bringing affordable options like the
MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the
original version in the places where users will see the most immediate benefit.
80 Plus Gold Certified
Efficiency has always been one of the most important factors
for users when choosing their power supply unit. While there are a range of
efficiency options, 80 PLUS Gold has been the ideal choice for the last several
years and continues to be seen as the standard for much of the world. The MWE
Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical
minimum efficiency of 90%.
2 EPS Connectors
All MWE Gold - V2 models come standard with 2 EPS connectors
in order to ensure universal compatibility with all current gen motherboards.
Whether you get the minimum wattage level at 550W or the maximum at 850W, you
never have to worry if you'll have enough connectors to use your ideal
components.
Quiet Cooling
The MWE Gold - V2 has been upgraded with an HDB fan. This
fan bearing delivers quiet and effective cooling with a long lifespan, allowing
users to get the most out of their PSU for years to come. A number of
additional measures have been applied to the original MWE Gold in order to
reduce sound output and ripple noise for a demonstrably quieter user
experience.
High Temperature Resilience
While the original MWE Gold had a maximum operating
temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon
this by delivering an additional 5 degrees to that limit. With this model,
users will be able to push their power supply to 50 degrees Celsius safely.
Such a high threshold greatly improves what's possible to accomplish with your
PSU and your system in general. Overclocking and other high intensity
applications become way more accessible when the system's power supply can take
the heat.

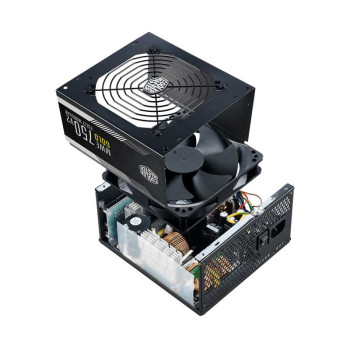

Full Modular Cabling
The full modular version of the MWE Gold - V2 comes with a
set of flat black cables that can be customized to each user's individual
needs. With a full modular setup, each system only needs to include the cables
required for its individual components. The rest of the cables can be put aside
for future upgrades and maintenance. This unused space within the chassis
allows for reduced clutter and better airflow, thereby improving your system's
overall cooling. Full modular cables carry an aesthetic benefit as well by
reducing the amount of space needed within the case when powering the system.
5 Year Warranty
The MWE Gold - V2 comes with a standard 5 year manufacturing
warranty from the date of purchase.
Specification |
|
Model |
MPE-7501-AFAAG |
ATX Version |
ATX 12V |
PFC |
Active PFC |
Input Voltage |
90-264V |
Input Current |
10-5A |
Input Frequency |
47-63Hz |
Dimensions (L X W X H) |
160 x 150 x 86 mm |
Fan Size |
120mm |
Fan Bearing |
HDB |
Fan Speed |
1500 RPM |
Noise Level @ 20% |
0 dBA |
Noise Level @ 50% |
17.8 dBA |
Noise Level @ 100% |
24.9 dBA |
Efficiency |
90% @ Typical Load |
80 Plus Rating |
80 PLUS Gold |
ERP 2014 Lot 3 |
Yes |
Operating Temperature |
|
Power Good Signal |
100 - 150 ms |
Hold Up Time |
>16ms at 100% Load |
MTBF |
>100,000 Hours |
Protections |
OVP, OPP, OTP, SCP, OCP, UVP |
Regulatory |
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI |
ATX 24-Pin Connectors |
1 |
Eps 4+4 Pin Connectors |
1 |
EPS 8 PIN Connector |
1 |
SATA Connectors |
12 |
Peripheral 4-Pin Connectors |
4 |
PCI-E 6+2 Pin Connectors |
4 |
Serie |
MWE Gold Series |
80 Plus |
Gold |
Modular |
Full Modular |
Wattage |
500 to 750W |
Warranty |
5 years |
Note* |
Price, feature and specifications
are subject to change without notice. |
