- Model: MPY-6501-SFHAGV
MPY-6501-SFHAGV

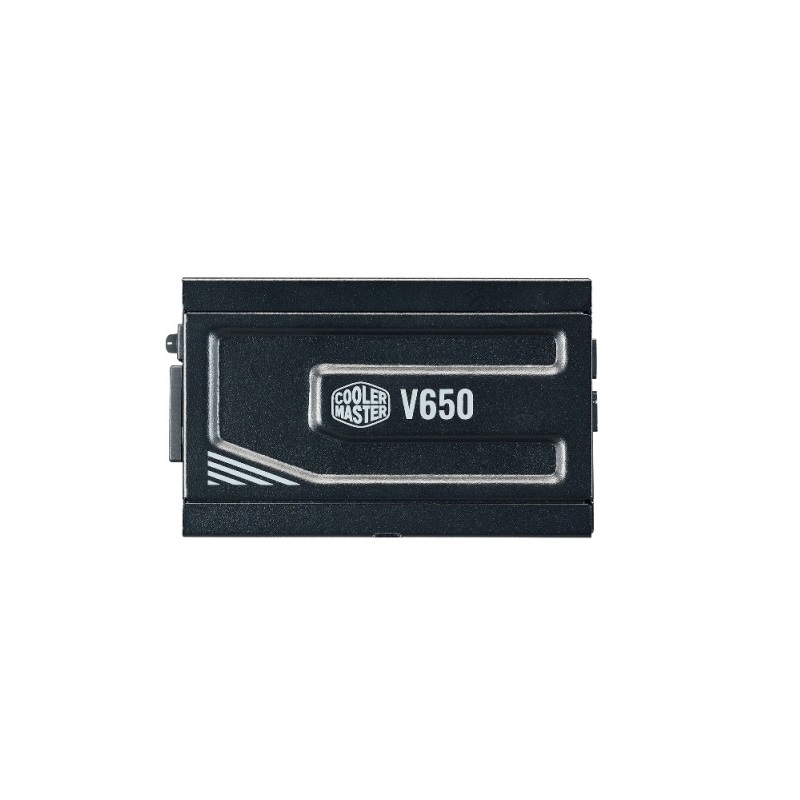

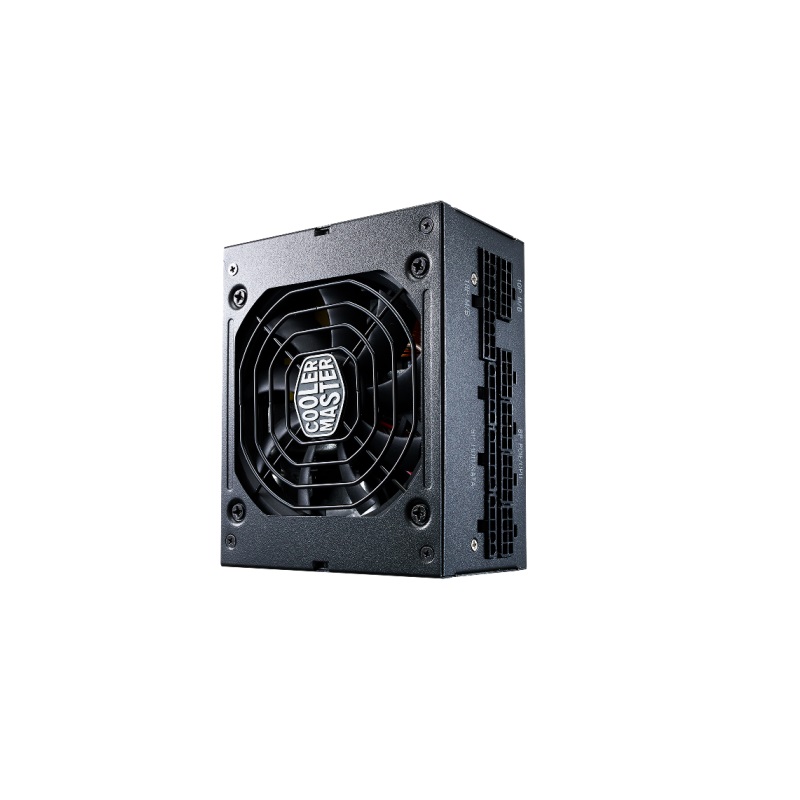

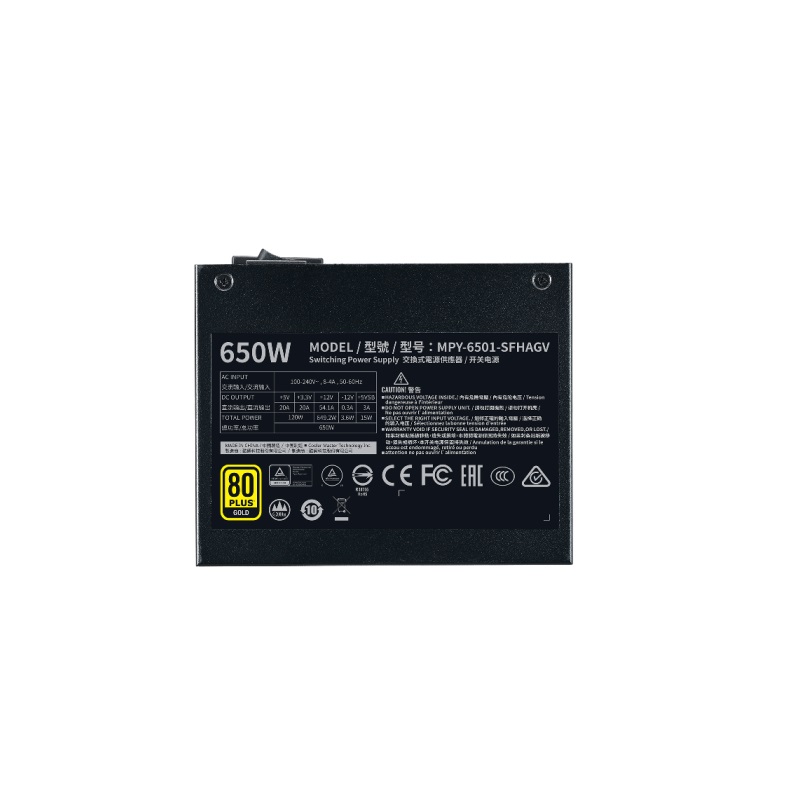

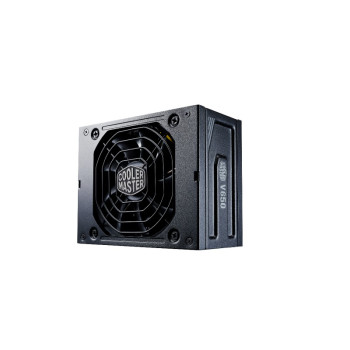

V650 SFX GOLD
SEMI-FANLESS FULL-MODULAR 80 PLUS GOLD SFX POWER SUPPLY
- 80 Plus Gold Efficiency
- SFX Form Factor
- SFX-to-ATX Bracket
- 80 Plus Gold Certified
- Semi-fanless Mode
- Full-modular Cabling
- 10 Year Warranty
|
Specification |
|
|
Model |
MPY-6501-SFHAGV |
|
ATX VERSION |
SFX 12V Ver. 3.42 |
|
PFC |
Active PFC |
|
INPUT VOLTAGE |
90-264V |
|
INPUT CURRENT |
8-4A |
|
INPUT FREQUENCY |
47-63Hz |
|
DIMENSIONS (L X W X H) |
|
|
FAN SIZE |
92mm |
|
FAN BEARING |
FDB |
|
FAN SPEED |
1500 RPM |
|
EFFICIENCY |
|
|
80 PLUS RATING |
80 PLUS Gold |
|
ERP 2014 LOT 3 |
Yes |
|
OPERATING TEMPERATURE |
0-50°C |
|
POWER GOOD SIGNAL |
100 - 150 ms |
|
HOLD UP TIME |
>16ms |
|
MTBF |
>100,000 Hours |
|
PROTECTIONS |
OVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection |
|
REGULATORY |
TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB |
|
ATX 24-PIN CONNECTORS |
1 |
|
EPS 4+4 PIN CONNECTORS |
1 |
|
EPS 8 PIN CONNECTOR |
1 |
|
SATA CONNECTORS |
8 |
|
PERIPHERAL 4-PIN CONNECTORS |
4 |
|
PCI-E 6+2 PIN CONNECTORS |
4 |
|
SERIE |
V Gold Series, V SFX Gold Series |
|
MODULAR |
Full Modular |
|
80 PLUS |
Gold |
|
WATTAGE |
500 to 750W |
|
Warranty |
10 Years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
