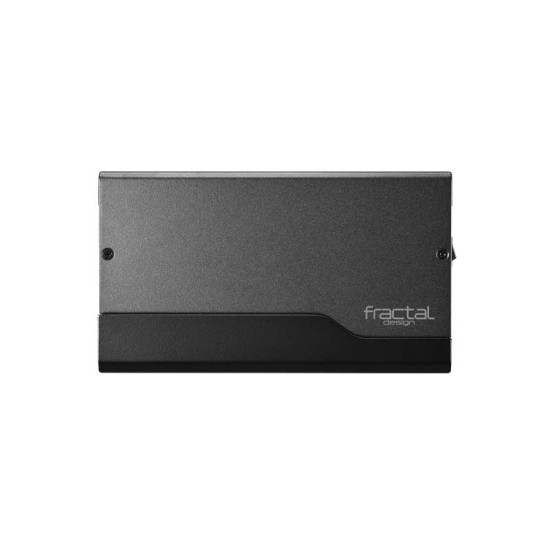

- Model: FD-PSU-IONP-760P-BK-EU
Ion+ 760W Platinum
The Ion+ Platinum is a high-performance fully modular PSU
with whisper-quiet operation, enhanced cable flexibility and superior output
quality
- UltraFlex DC wires for effortless cable-routing and
connectors
- Custom-tailored 140 mm fan with exceptionally low minimum
speed
- 80 PLUS® Platinum Efficiency for optimized electrical
performance
The power of silence
A user selectable semi-passive Zero RPM mode maintains pure
silence under light loads, and under heavy use the custom-tailored 140 mm fan
with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable
bends and twists effortlessly to make installation and cable-routing a breeze,
thanks to an ultra-high strand count wire and special insulation.
Ion+ is available now in 560, 660, 760 and 860 watt capacities, all with 80 PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.
Power with a plus
- Fully modular design for reduced clutter and maximum ease of
installation
- Equipped with a custom-tailored Fractal Design Dynamic
Series 140 mm fan with exceptionally low minimum speed and true long-life FDB
bearing
- Extensive 10 year warranty
Japanese capacitors
Premium Japanese 105°C capacitors provide enhanced
reliability and durability
UltraFlex Cables
Fractal Design UltraFlex DC wires have game-changing
flexibility for effortless cable-routing and connectors that twist and bend to
fit your installation—not fight it
Zero RPM
User selectable Zero RPM mode allows for either silent,
passive operation in low load situations or continuous low speed fan operation
for additional cooling
More power, less heat
- The Ion+ Platinum is rated 80 PLUS® Platinum Efficiency for
its ability to offer electrical output of the highest quality, while generating
as little heat as possible.
- 80 PLUS® Platinum Efficiency for optimized electrical
performance and reduced heat generation
- Outstanding output quality with tight voltage regulation and
extremely low noise and ripple
- Over Power Protection, Over Voltage Protection, Short
Circuit Protection, Under Voltage Protection, Over Current Protection and Over
Temperature Protection
|
Specification |
|
|
Specification |
80 PLUS® Certification : Platinum Modular cables : Fully modular Cable type : Modular 24-pin: Braided sleeve UltraFlex wire
Others: Flat UltraFlex wire Fan type : Customized 140 mm FDB bearing Fractal Design
Dynamic Series fan Maximum operating temperature at full load : 50° C Semi-passive operation : Yes, user selectable (Zero RPM) Sleep State Compliance : C6/C7 Warranty : 10 years Capacitors : Japanese Protection features : Over voltage protection. Under
voltage protection. Over power protection. Short circuit protection. Over
current protection. Over temperature protection Approvals & Certifications : CE, FCC, TUV, cTUVus,
EAC, RCM, CCC, BSMI, CB, RoHS, WEEE Life expectancy (MTBF) at max output load : 100,000 hours Input voltage : 100-240V AC Input frequency : 50-60 Hz Input current : 10A/5A Number of 12V rails : 1 PSU specification compliance : ATX12V 2.4 / EPS12V 2.92 Standby efficiency : ErP 2013 (<0.45W @230 VAC, 45 mA
load on +5Vsb) Unit measurements : 150 x 150 x 86 mm Unit weight (unit only) : 1.665 kg |
|
Connectors |
ATX 24-pin : 1 ATX12V 4+4 pin / EPS12V 8-pin : 2 PCIe 6+2 pin : 6 SATA : 10 Peripheral : 4 |
|
Cable configuration (length between connectors) |
ATX 24-pin : 600 ATX12V 4+4 pin : 700 EPS12V 8-pin : 600 PCIe 6+2 pin : 550+120 SATA : 400+120+120+120, 650+120 Peripheral : 400+120+120+120 |
|
DC output |
3.3 V : 22A 5 V : 22A 3.3 V and 5 V combined : 120W 12 V : 63.3A -12 V : 0.3A 5 V Standby (+5 Vsb) : 3A Total Power : 760W |
|
Other |
Package content : Ion+ PSU with protective bag, Modular
cables in a convenient storage bag, Screw pack with Velcro cable ties, AC
power cord (localized), User manual Package dimensions (W x H x D) : 325 x 110 x 210 mm Package weight : 2.975 kg Product code : FD-PSU-IONP-760P-BK |
|
Warranty |
10 years |
|
Note* |
Price, feature and specifications
are subject to change without notice. |
