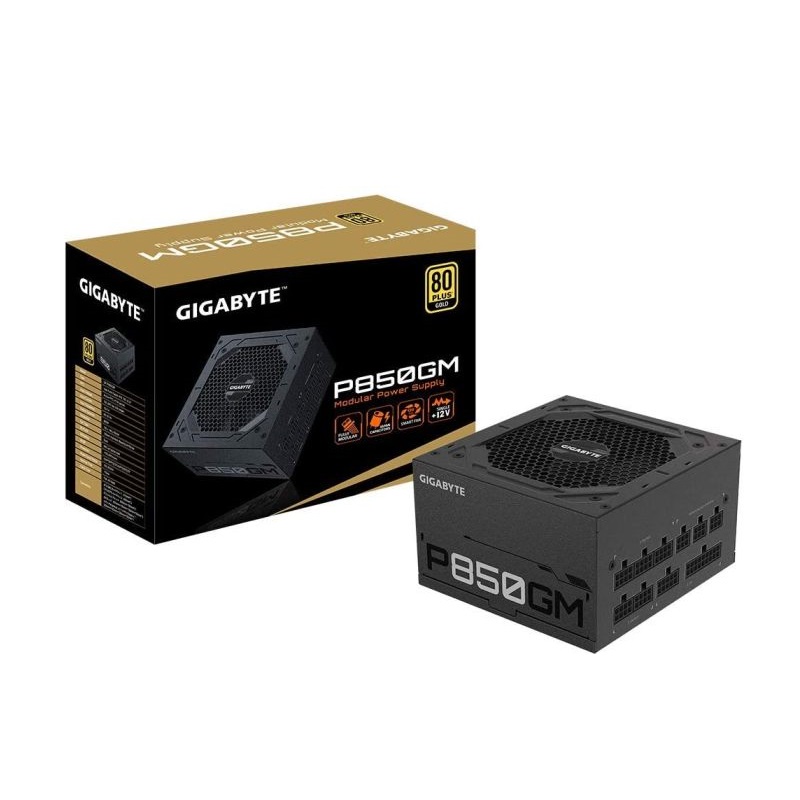

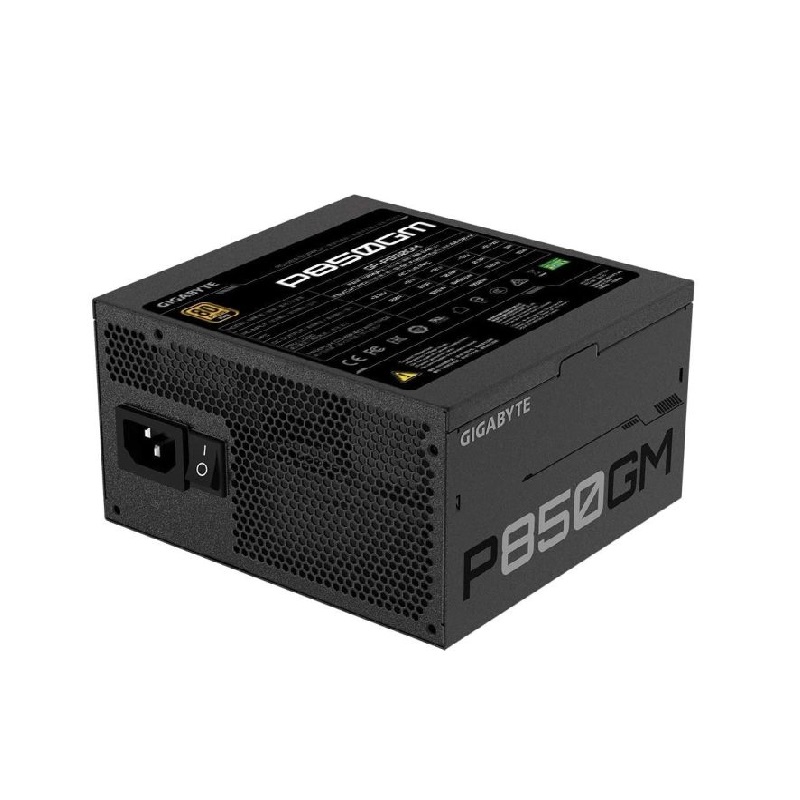

Gigabyte P850GM 80+ Gold Modular Power Supply

P850GM

Features

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size
  • 5 years warranty (Adjusted according to different regions)



Specification

Input Voltage

1‎00-240 Vac (full range)

Type

Intel Form Factor ATX 12V v2.31

80 Plus

Gold

Input Current

1‎2-6 A

Input Frequency Range

6‎0-50 Hz

Fan Type

1‎20mm Hydraulic Bearing ( HYB ) fan

PFC

Active PFC (>0.9 typical)

Connector

ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+150mm *1

Power Good Signal

1‎00-500ms

Hold Up Time

>16ms

Efficiency

9‎0% at typical load

MTBF

>100,000 hours

Protection

OVP/OPP/SCP/UVP/OCP/OTP

Output Capacity

850W

Model

GP-P850GM

Dimension

1‎50 x 140 x 86 mm

Cable Type

Flat, All black

Warranty

5 years warranty

Note*

Price, feature and specifications are subject to change without notice.
