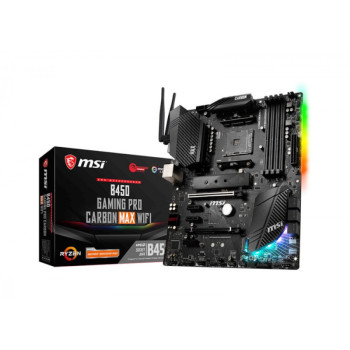

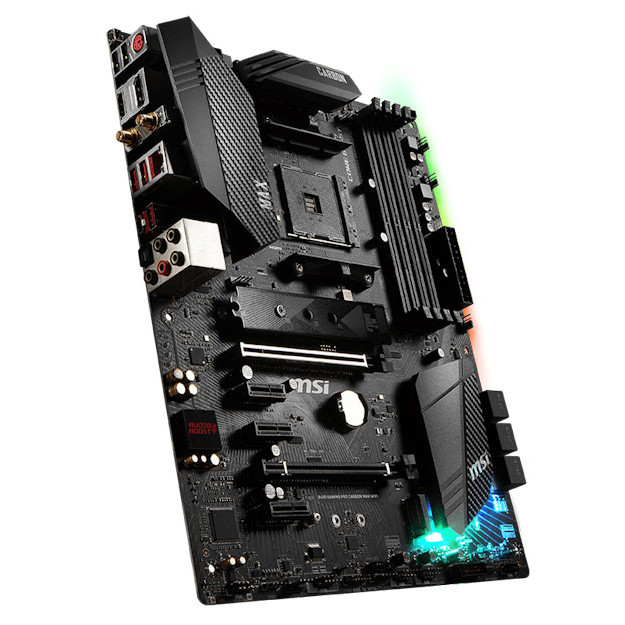

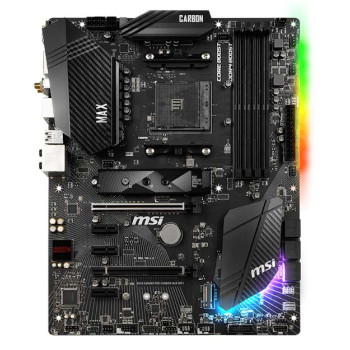

MSI B450 Gaming Pro Carbon Max Wifi Motherboard

CPU

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Chipset

AMD® B450 chipset

Memory

4 x DDR4 memory slots, support up to 128GB

Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

For AMD Ryzen Gen3 (R5/R7/R9)

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

For AMD Other CPU

Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Expansion Slot

1x PCIe 3.0 x 16 slot (PCI_E1)

Supports x 16 speed with 1st, 2nd and 3rd Gen AMD® Ryzen™ processors

Supports x 8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™ with Radeon™ Graphics processors

Supports x 4 speed with Athlon™ with Radeon™ Vega Graphics Processors

1 x PCIe 2.0 x 16 slot (PCI_E4, supports x4 mode)

3 x PCIe 2.0 x 1 slots

Onboard Graphics

1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz

1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD® B450 Chipset

4 x SATA 6Gb/s ports

1 x M.2 slot (M2_2, Key M)

Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

AMD® CPU

1 x M.2 slot (M2_1, Key M)2

Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD® Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s

Supports 2242/ 2260 /2280/ 22110 storage devices

2 x SATA 6Gb/s ports

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe RAID

USB

AMD® B450 Chipset

1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

7.1-Channel High Definition Audio

Supports Optical S/PDIF output

LAN

1 x Intel® I211AT Gigabit LAN controller

WIFI & Bluetooth

Intel® Dual Band Wireless-AC 9260

Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,5GHz) up to 1.73 Gbps speed.

Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0,BLE,4.2, 5.0

1 x M2_3 slot with E key (Wi-Fi mode)

Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water-pump-fan connector

4 x 4-pin system fan connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Serial Port connector

1 x Clear CMOS jumper

1 x 2pin LED Power connector

2 x 5050 RGB LED strip 12V connectors (JRGB1~2)

1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)

1 x COR SAIR connector (JCORS AIR1)

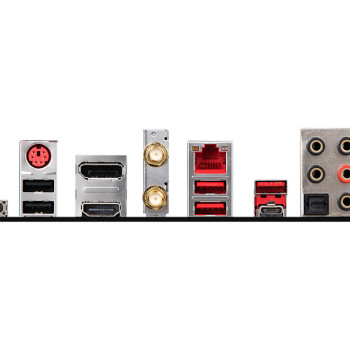

Back Panel Ports

PS/2 Combo Port

DisplayPort

Wi-Fi / Bluetooth

LAN

HD Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen1

USB 3.2 Gen2 (Type A+C)

Optical S/PDIF OUT

Form Factor

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit

Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Warranty

3 Years

Note

Price, feature and specifications are subject to change without notice.
