EFFICIENCY RATING

80 PLUS Gold (up to 90%)

MODULAR

Yes (full modular)

FAN SIZE

120 mm

FAN BEARING

Fluid Dynamic Bearing

DIMENSIONS (DXWXH)

140 x 150 x 86 mm

PFC TYPE

Active PFC

INPUT VOLTAGE RANGE

100~240 VAC

POWER WATT

750W

POWER EXCURSION

1500W (*up to 200% of the PSU's rated power for 100μs)

INPUT FREQUENCY RANGE

47-63Hz

PROTECTION

OCP / OVP / OPP / OTP / SCP / UVP

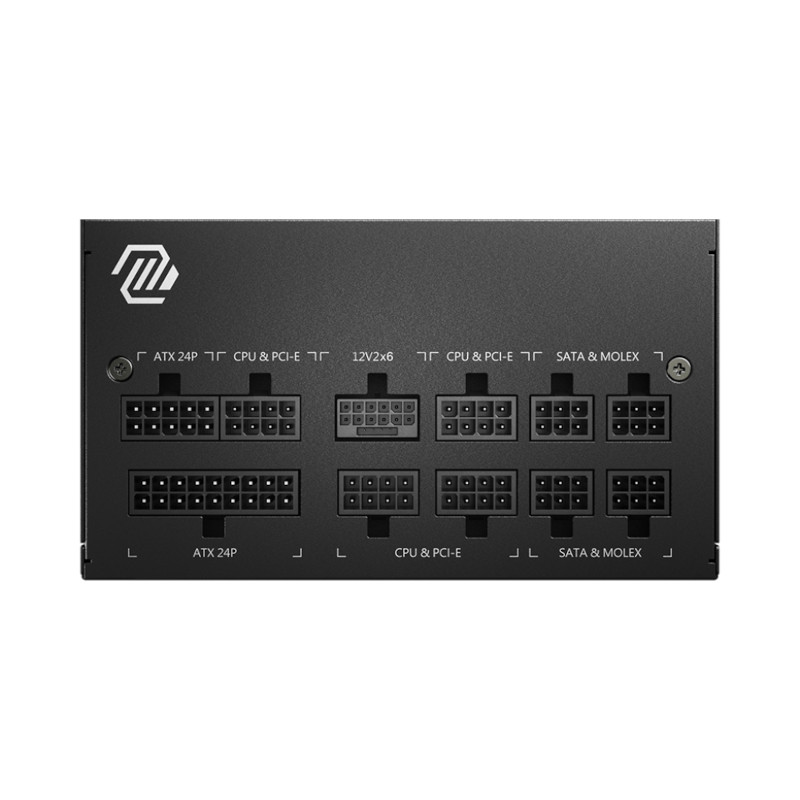

ATX (24 PIN)

1

EPS (4+4 PIN)

2

PCI-E 5.0 (16 PIN)

1 (450W)

PCI-E (6+2 PIN)

3

SATA (15 PIN)

8

MOLEX (4 PIN)

4

FDD (4 PIN)

1

Warranty

 7 Years

Note*

Price, feature and specifications are subject to change without notice.
