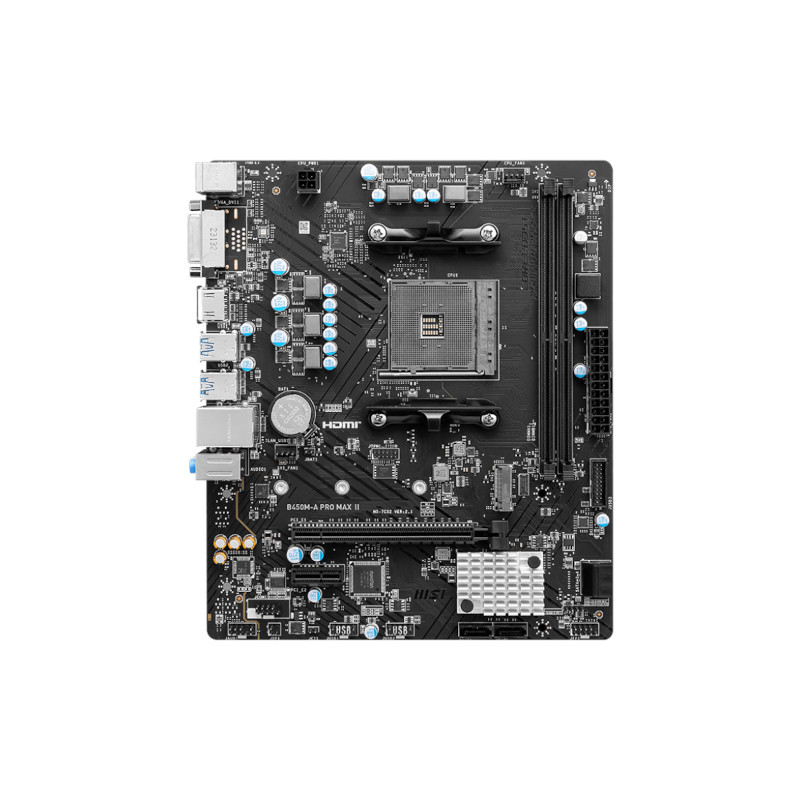

CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors

Socket AM4

Internal I/O Connectors

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

Memory

2x DDR4, Maximum Memory Capacity 64GB

Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)

Supports Dual-Channel mode

Supports non-ECC, UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Onboard Graphics

1x HDMI™

Support HDMITM 1.4, maximum resolution of 4K 24Hz*

1x DVI

Support DVI-D, maximum resolution of 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slots

1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

Storage

1x M.2

M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek® 8125 2.5Gbps LAN controller

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

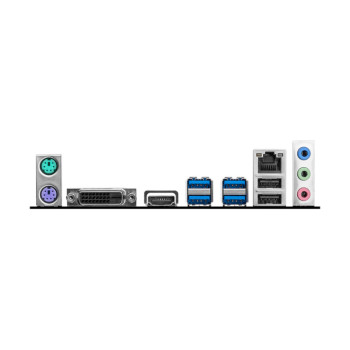

Back I/O Ports

Keyboard/Mouse

DVI-D

HDMI™

USB 3.2 Gen 1 5Gbps (Type-A)

2.5G LAN

Audio connectors

USB 2.0

DIMENSION

mATX

200mmx236mm

Warranty

3 Years

Note*

Price, feature and specifications are subject to change without notice.
