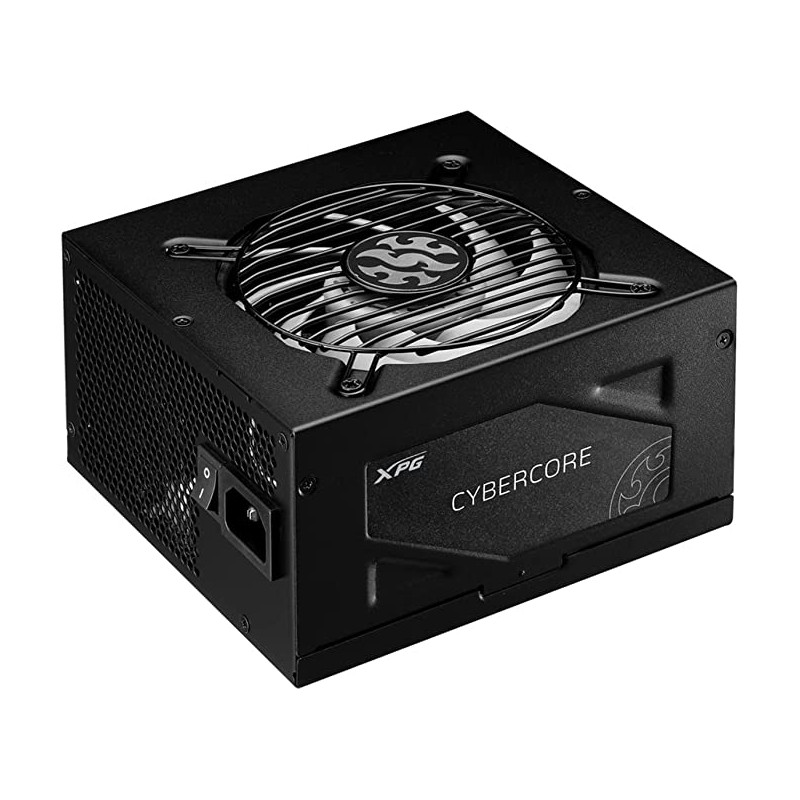

- Model: XPG-CYBERCORE-1000
CYBERCORE ULTIMATE POWER
XPG CYBERCORE
PLATINUM Series exemplifies XPG’s ambition and dedication to the PC enthusiast
community by expanding the line of excellent-quality PSUs with a new tier of
PLATINUM products.
Our top-of-the-line
XPG VENTO PRO 120 PWM Fan by Nidec is selected to boost CYBERCORE’s cooling
solution while helping to keep a compact form factor. It’s a new PSU milestone
for XPG, and represents XPG’s determination to satisfy higher wattage
requirements.
|
Specification |
|
|
Dimensions (L x W
x H) |
160 x 150 x 86mm |
|
80 PLUS RATING |
PLATINUM |
|
ATX Version |
Intel ATX 12V
v2.52 |
|
Protections |
OCP / OVP / UVP /
OPP / SCP / OTP / NLO / SIP |
|
Certification |
CE / CB/ FCC(IC)
/ TUV / cTUVus / TUV S-Mark / NOM / BSMI / UKCA / EAC |
|
PFC |
>0.99 |
|
Input Voltage |
100V-240V |
|
Input Current |
13A |
|
Input Frequency |
50Hz-60Hz |
|
Operating
Temperature |
50°C |
|
Fan Size |
120cm |
|
Fan Bearing |
Dual Ball Bearing |
|
Fan Speed |
2,150 RPM |
|
MTBF |
120K hours at 25C |
|
ATX 24 Pin
Connector |
1 |
|
EPS 8 (4+4) Pin
Connector |
2 |
|
PCI-E 6+2 Pin
Connector |
6 |
|
SATA Connector |
12 |
|
Peripheral 4 Pin
Connector |
4 |
|
Floppy 4 Pin
Connector |
1 |
|
Weight |
Product+cables: 1.96kg+1.35kg
(4.32lb+3.0lb) ±5% with Package：4.13kg (9.1lb) ±5% |
|
Warranty |
10 Year |
|
Note* |
Price,
feature and specifications are subject to change without notice. |
